TA12-KF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

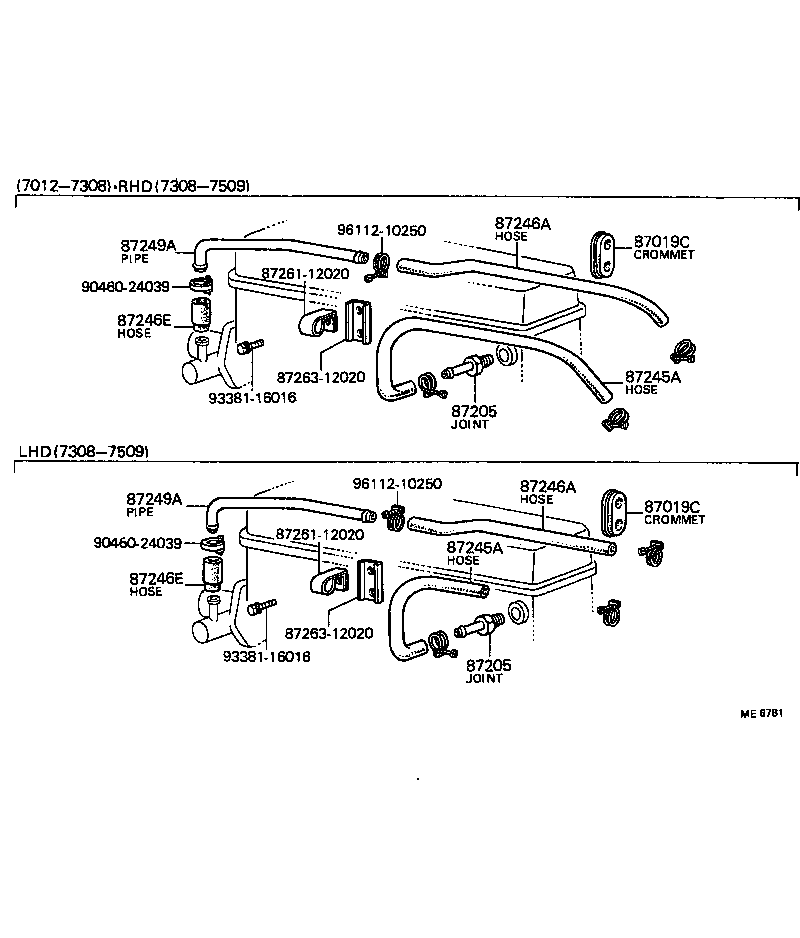

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01188 |
TA12..RHD |
1 | ||
| 90480-01188 |
TA1# |
1 | ||
| 87019C - GROMMET, HEATER HOSE | ||||
| 90480-01188 |
TA12..RHD |
1 | ||
| 90480-01188 |
TA1# |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-14010 |
TA1# |
1 | ||
| 87205 - JOINT OR UNION, FRONT HEATER HOSE THROUGH OR INLET VALV | ||||
| 87251-14010 |
TA1# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-14012 |
TA1# |
1 | ||
| 87245-14011 |
TA1# |
1 | ||
| 87245-14012 |
TA12..RHD |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-14012 |
TA1# |
1 | ||
| 87245-14011 |
TA1# |
1 | ||
| 87245-14012 |
TA12..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-14270 |
TA12..RHD |
1 | ||
| 87246-14020 |
TA1# |
1 | ||
| 87246-14020 |
TA12..RHD |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 87245-14270 |
TA12..RHD |
1 | ||
| 87246-14020 |
TA1# |
1 | ||
| 87246-14020 |
TA12..RHD |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99551-30055 |
TA1# L=55 |
1 | ||
| 90445-24059 |
TA1# L=55 |
1 | ||
| 99552-30055 |
TA1# L=55 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 99551-30055 |
TA1# L=55 |
1 | ||
| 90445-24059 |
TA1# L=55 |
1 | ||
| 99552-30055 |
TA1# L=55 |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87249-14020 |
TA1# |
1 | ||
| 87249-14010 |
TA1# |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87249-14020 |
TA1# |
1 | ||
| 87249-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 87261-12020 | ||||
| 87263-12020 | ||||
| 90460-24039 | ||||
| 93381-16016 | ||||
| 96112-10250 | ||||
