TA12-KF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)

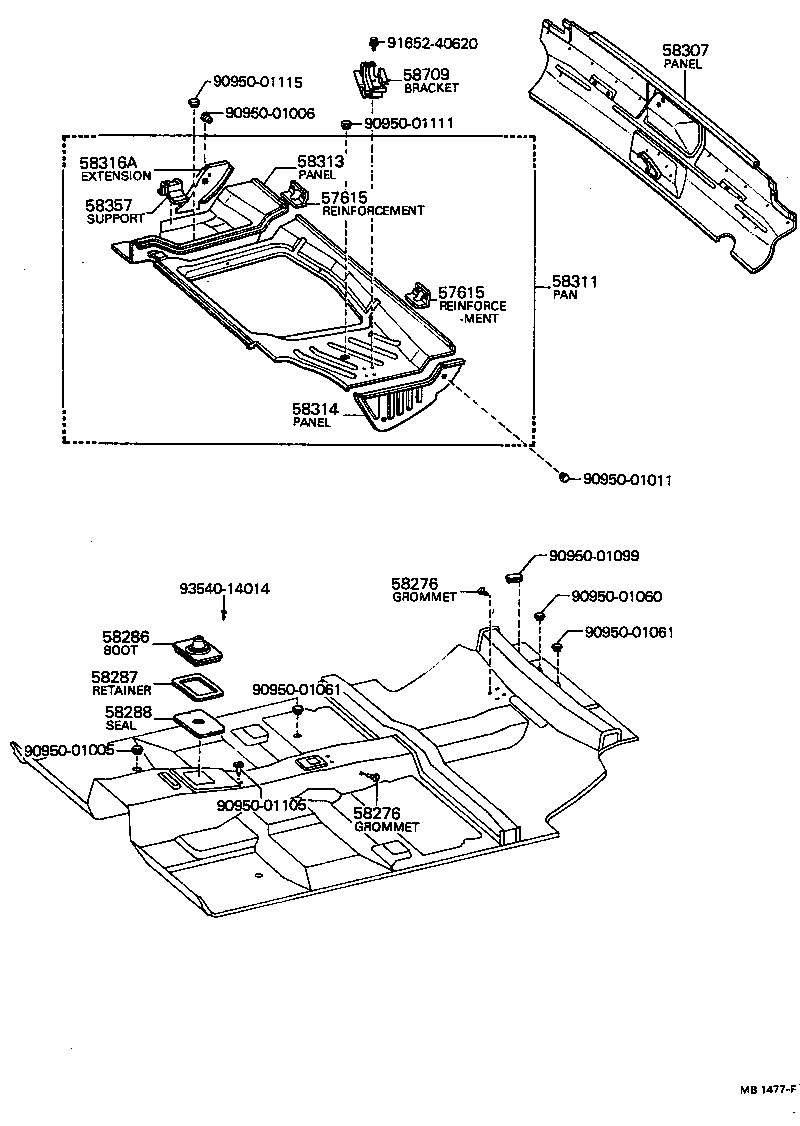

(7012-7207)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57615 - REINFORCEMENT, REAR BUMPER STAY SUPPORT | ||||
| 57615-14010 |
TA1# RH. |
1 | ||
| 57616-14010 |
TA1# LH. |
1 | ||
| 57615 - REINFORCEMENT, REAR BUMPER STAY SUPPORT | ||||
| 57615-14010 |
TA1# RH. |
1 | ||
| 57616-14010 |
TA1# LH. |
1 | ||
| 58276 - GROMMET, SAFETY BAND ANCHORAGE NUT | ||||
| 90950-01126 |
TA1# OD=12 |
6 | ||
| 58276 - GROMMET, SAFETY BAND ANCHORAGE NUT | ||||
| 90950-01126 |
TA1# OD=12 |
6 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-14010 |
TA1#..MTM |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-14010 |
TA1#..MTM |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-14010 |
TA1#..MTM |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14011 |
TA1# |
1 | ||
| 58307-14010 |
TA1# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-14010 |
TA1# |
1 | ||
| 58301-14011 |
TA1# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-14010 |
TA1# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-14010 |
TA1# |
1 | ||
| 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH | ||||
| 58316-14010 |
TA1# |
1 | ||
| 58357 - SUPPORT, SPARE WHEEL | ||||
| 58357-14010 |
TA1# |
1 | ||
| 58709 - BRACKET SUB-ASSY, JACK CLAMP | ||||
| 58709-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90950-01005 | ||||
| 90950-01006 | ||||
| 90950-01011 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01099 | ||||
| 90950-01105 | ||||
| 90950-01111 | ||||
| 90950-01115 | ||||
| 91652-40620 | ||||
| 93540-14014 | ||||

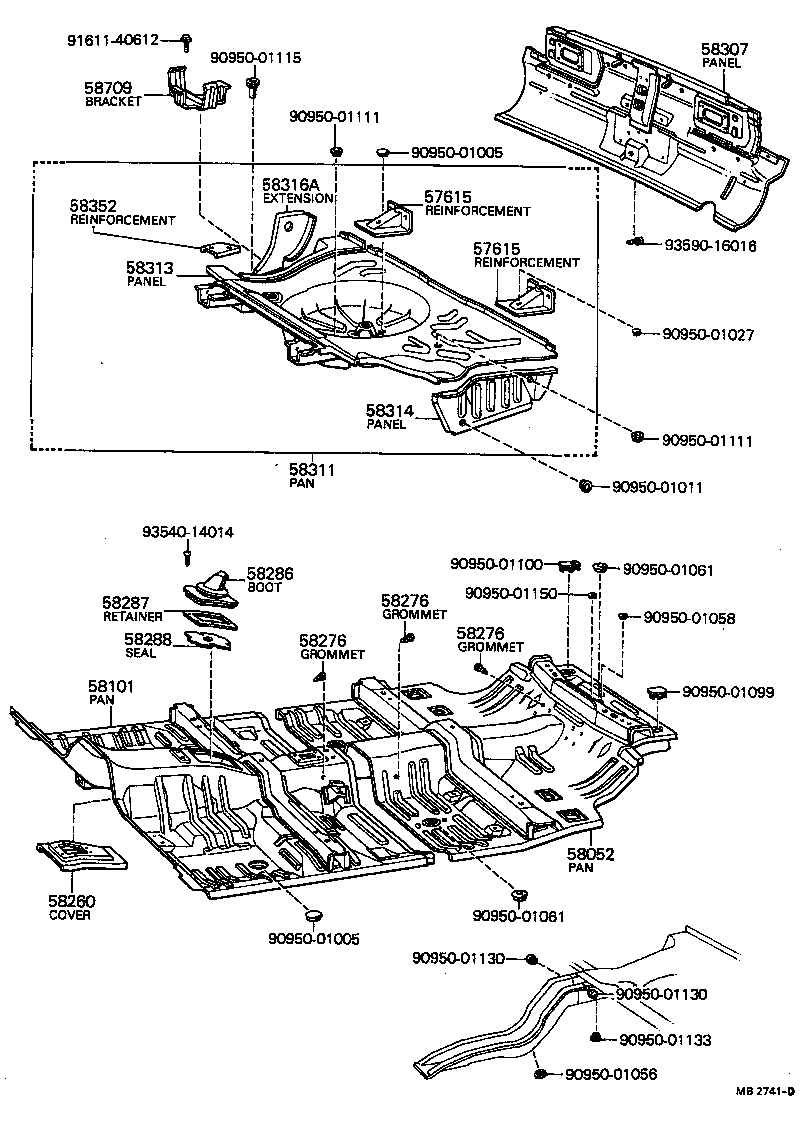

(7208-7509)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57615 - REINFORCEMENT, REAR BUMPER STAY SUPPORT | ||||
| 57615-14010 |
TA1# RH. |
1 | ||
| 57616-14010 |
TA1# LH. |
1 | ||
| 57615 - REINFORCEMENT, REAR BUMPER STAY SUPPORT | ||||
| 57615-14010 |
TA1# RH. |
1 | ||
| 57616-14010 |
TA1# LH. |
1 | ||
| 58052 - PAN SUB-ASSY, CENTER FLOOR | ||||
| 58202-14030 |
TA1# |
1 | ||
| 58202-14011 |
TA1# |
1 | ||
| 58101 - PAN SUB-ASSY, FRONT FLOOR | ||||
| 58101-14011 |
TA1# |
1 | ||
| 58260 - COVER ASSY, TRANSMISSION, FRONT | ||||
| 58281-14021 |
TA1#..MTM |
1 | ||
| 58276 - GROMMET, SAFETY BAND ANCHORAGE NUT | ||||
| 90950-01126 |
TA1# OD=12 |
6 | ||
| 58276 - GROMMET, SAFETY BAND ANCHORAGE NUT | ||||
| 90950-01126 |
TA1# OD=12 |
6 | ||
| 58276 - GROMMET, SAFETY BAND ANCHORAGE NUT | ||||
| 90950-01126 |
TA1# OD=12 |
6 | ||
| 58286 - BOOT, SHIFT & SELECT LEVER, NO.1 | ||||
| 58286-14010 |
TA1#..MTM |
1 | ||
| 58287 - RETAINER, SHIFT LEVER BOOT | ||||
| 58287-14010 |
TA1#..MTM |
1 | ||
| 58288 - SEAL, SHIFT LEVER BOOT | ||||
| 58288-14010 |
TA1#..MTM |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-14011 |
TA1# |
1 | ||
| 58307-14010 |
TA1# |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58301-14010 |
TA1# |
1 | ||
| 58301-14011 |
TA1# |
1 | ||
| 58313 - PANEL, REAR FLOOR SIDE, RH | ||||
| 58313-14010 |
TA1# |
1 | ||
| 58314 - PANEL, REAR FLOOR SIDE, LH | ||||
| 58314-14010 |
TA1# |
1 | ||
| 58316A - EXTENSION, REAR FLOOR SIDE PANEL, REAR RH | ||||
| 58316-14010 |
TA1# |
1 | ||
| 58352 - REINFORCEMENT, JACK CLAMP | ||||
| 58352-14011 |
TA1# |
1 | ||
| 58709 - BRACKET SUB-ASSY, JACK CLAMP | ||||
| 58709-14010 |
TA1# |
1 | ||
| Common parts | ||||
| 90950-01005 | ||||
| 90950-01011 | ||||
| 90950-01027 | ||||
| 90950-01056 | ||||
| 90950-01058 | ||||
| 90950-01061 | ||||
| 90950-01099 | ||||
| 90950-01100 | ||||
| 90950-01111 | ||||
| 90950-01115 | ||||
| 90950-01130 | ||||
| 90950-01133 | ||||
| 90950-01150 | ||||
| 91611-40612 | ||||
| 93540-14014 | ||||
| 93590-16016 | ||||
