TA12-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)MTM

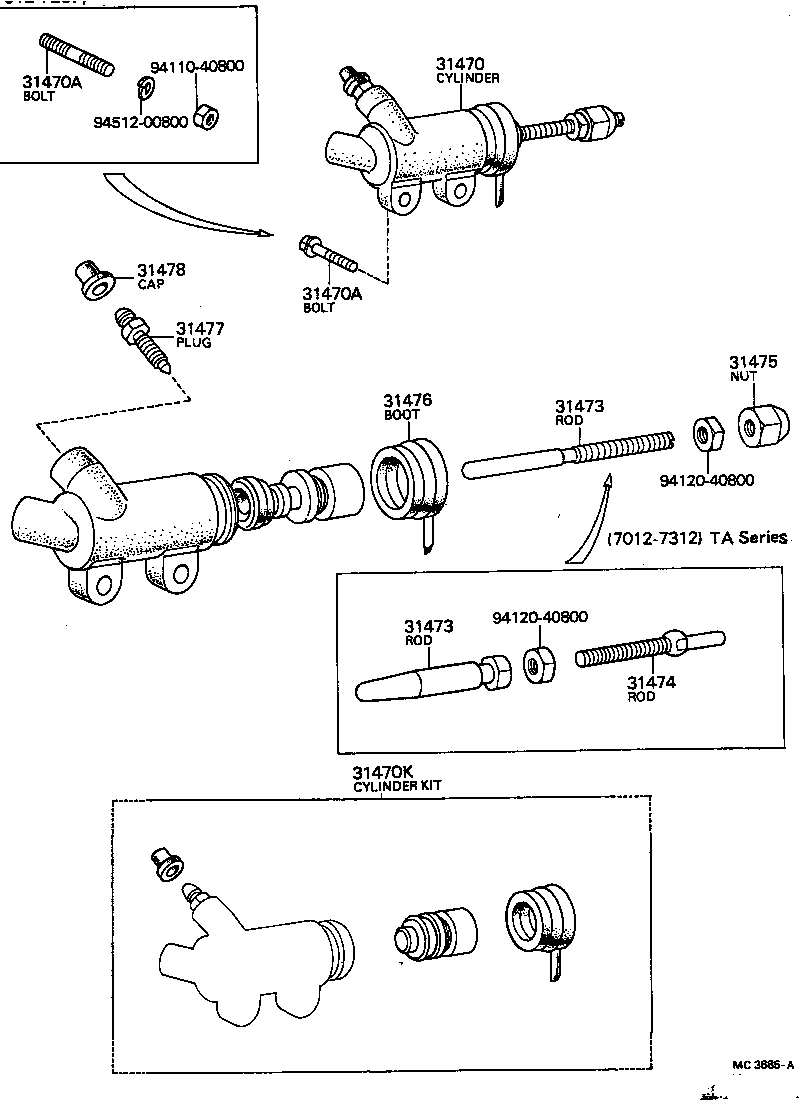

Click highlighted areas on diagram

diagram 31470 31470A 31470A 31470K 31473 31473 31474 31475 31476 31477 31478 9411040800 9412040800 9412040800 9451200800
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-14011

TA1#..MTM

 1
31470-14012

TA1#..MTM

 1
31470-14013

TA1#..MTM

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
90116-08005

TA1#..4F

L=37,S=14&14

 2
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
90116-08005

TA1#..4F

L=37,S=14&14

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-30052

TA1#..MTM

 1
04313-30051

TA1#..MTM

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-30020

TA1#..MTM

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-30020

TA1#..MTM

 1
31474 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2
31474-30020

TA1#..MTM

 1
31475 - NUT, CLUTCH RELEASE CYLINDER PUSH ROD
31475-30010

TA1#..MTM

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-30021

TA1#..MTM

 1
31476-30020

TA1#..MTM

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
47547-12010

TA1#..MTM

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
47548-20010

TA1#..4F

 1
Common parts
94110-40800
94120-40800
94512-00800
