TA12-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

Click highlighted areas on diagram

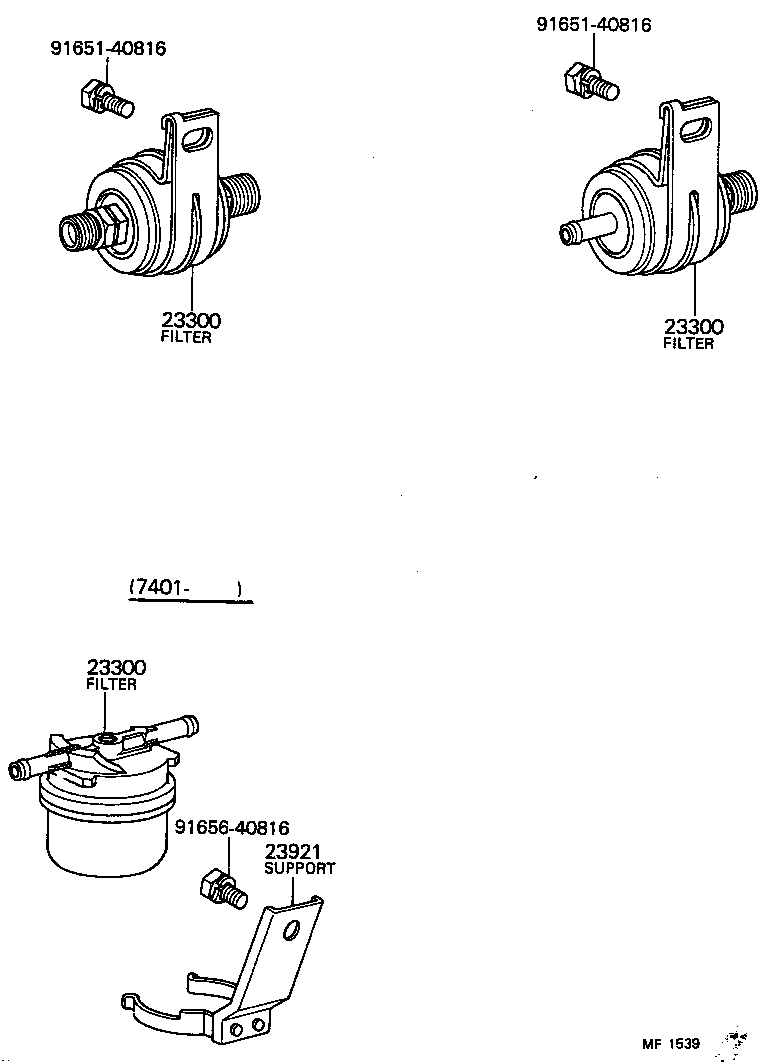

diagram 23300 23300 23300 23921 9165140816 9165140816 9165640816
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23030-25011

T,2T#..TA1#

 1
23030-25010

T,2T..TA1#

 1
23300-24020

T,2T#..TA1#

 1
23300 - FILTER ASSY, FUEL
23030-25011

T,2T#..TA1#

 1
23030-25010

T,2T..TA1#

 1
23300-24020

T,2T#..TA1#

 1
23300 - FILTER ASSY, FUEL
23030-25011

T,2T#..TA1#

 1
23030-25010

T,2T..TA1#

 1
23300-24020

T,2T#..TA1#

 1
23921 - SUPPORT, FUEL FILTER
90461-10013

T,2T#..TA1#

 1
Common parts
91651-40816
91656-40816
