TA12-KF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

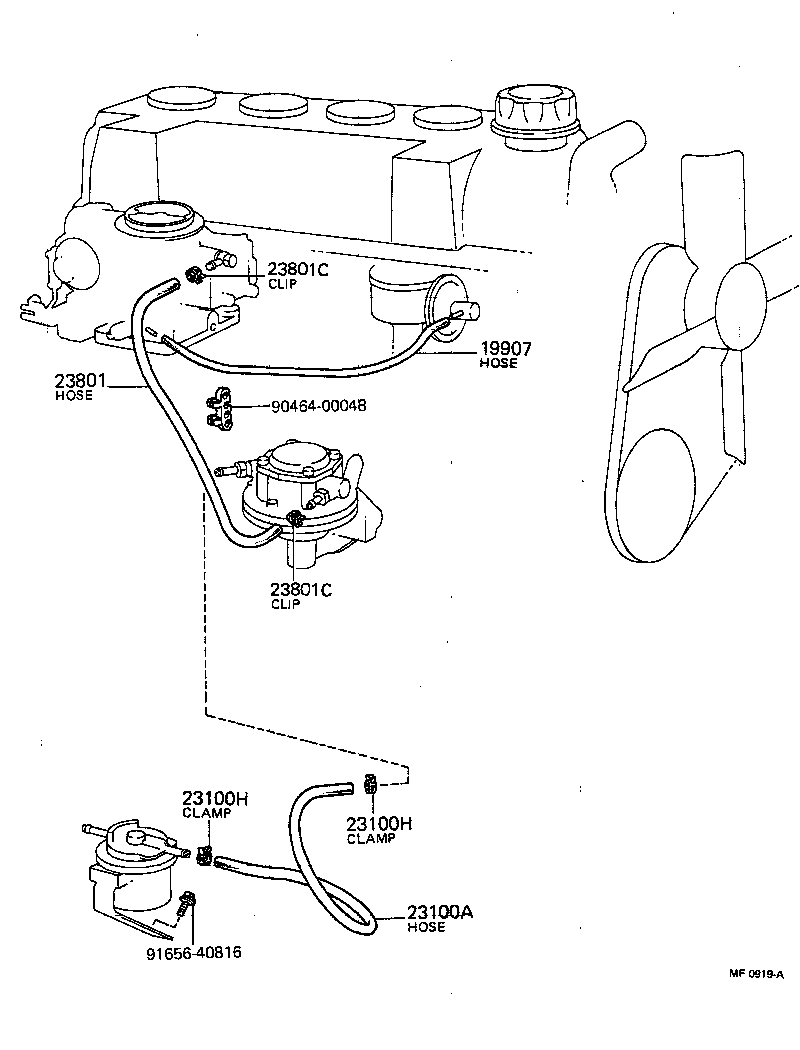

(7401-7509)T,2T

Click highlighted areas on diagram

diagram 19907 23100A 23100H 23100H 23801 23801C 23801C 9046400048 9165640816
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
90445-07136

T,2T..TA1#

 1
90445-07127

T,2T..TA1#

 1
23100A - HOSE, FUEL
95331-08030

T,2T#..TA1#

L=300

 1
95323-07030

T,2T..TA1#

L=300

 1
90923-01137

T,2T..TA1#

L=280

 1
95331-06030

T,2T#..TA1#

L=300

 1
23100H - CLIP(FOR FUEL HOSE)
90467-13130

T,2T#..TA1#

 2
90467-13138

T,2T#..TA1#

 2
90467-12140

T,2T#..TA1#

 2
23100H - CLIP(FOR FUEL HOSE)
90467-13130

T,2T#..TA1#

 2
90467-13138

T,2T#..TA1#

 2
90467-12140

T,2T#..TA1#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-25010

T,2T..TA1#

 1
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12140

T,2T#..TA1#

 2
23801C - CLIP(FOR CARBURETOR FUEL HOSE)
90467-12140

T,2T#..TA1#

 2
Common parts
90464-00048
91656-40816

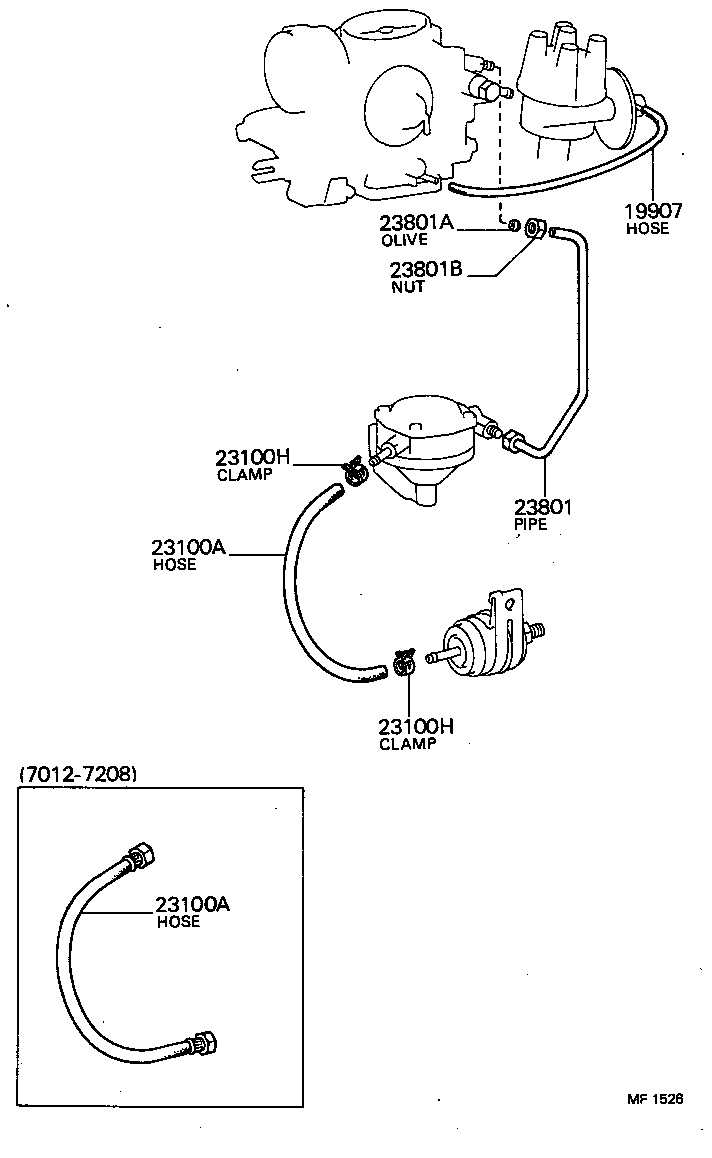

(7012-7312)T,2T

Click highlighted areas on diagram

diagram 19907 23100A 23100A 23100H 23100H 23801 23801A 23801B
Part # Description Qty Price
19907 - HOSE, VACUUM, NO.1
90445-07136

T,2T..TA1#

 1
90445-07127

T,2T..TA1#

 1
23100A - HOSE, FUEL
95331-08030

T,2T#..TA1#

L=300

 1
95323-07030

T,2T..TA1#

L=300

 1
90923-01137

T,2T..TA1#

L=280

 1
95331-06030

T,2T#..TA1#

L=300

 1
23100A - HOSE, FUEL
95331-08030

T,2T#..TA1#

L=300

 1
95323-07030

T,2T..TA1#

L=300

 1
90923-01137

T,2T..TA1#

L=280

 1
95331-06030

T,2T#..TA1#

L=300

 1
23100H - CLIP(FOR FUEL HOSE)
90467-13130

T,2T#..TA1#

 2
90467-13138

T,2T#..TA1#

 2
90467-12140

T,2T#..TA1#

 2
23100H - CLIP(FOR FUEL HOSE)
90467-13130

T,2T#..TA1#

 2
90467-13138

T,2T#..TA1#

 2
90467-12140

T,2T#..TA1#

 2
23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1
23811-25010

T,2T..TA1#

 1
23801A - OLIVE(FOR FUEL PIPE)
96395-71400

T,2T#..TA1#

 2
23801B - NUT, UNION(FOR FUEL PIPE)
90402-13041

T,2T#..TA1#

 2
