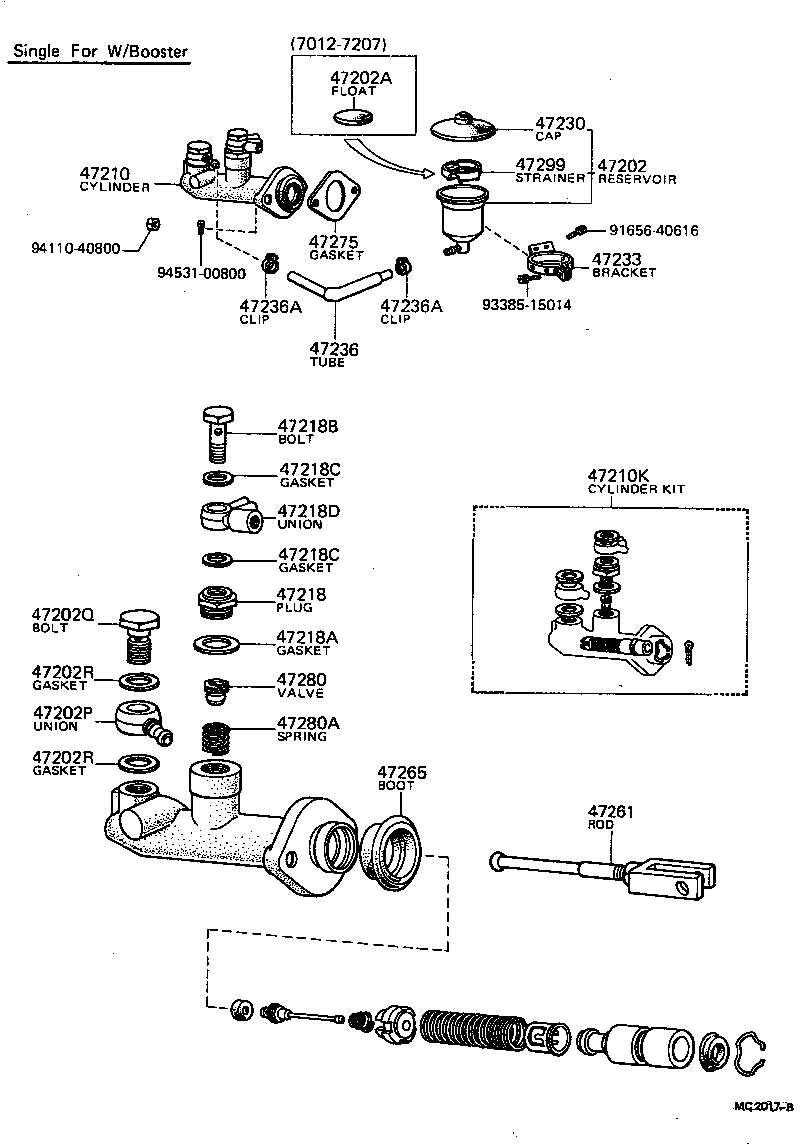

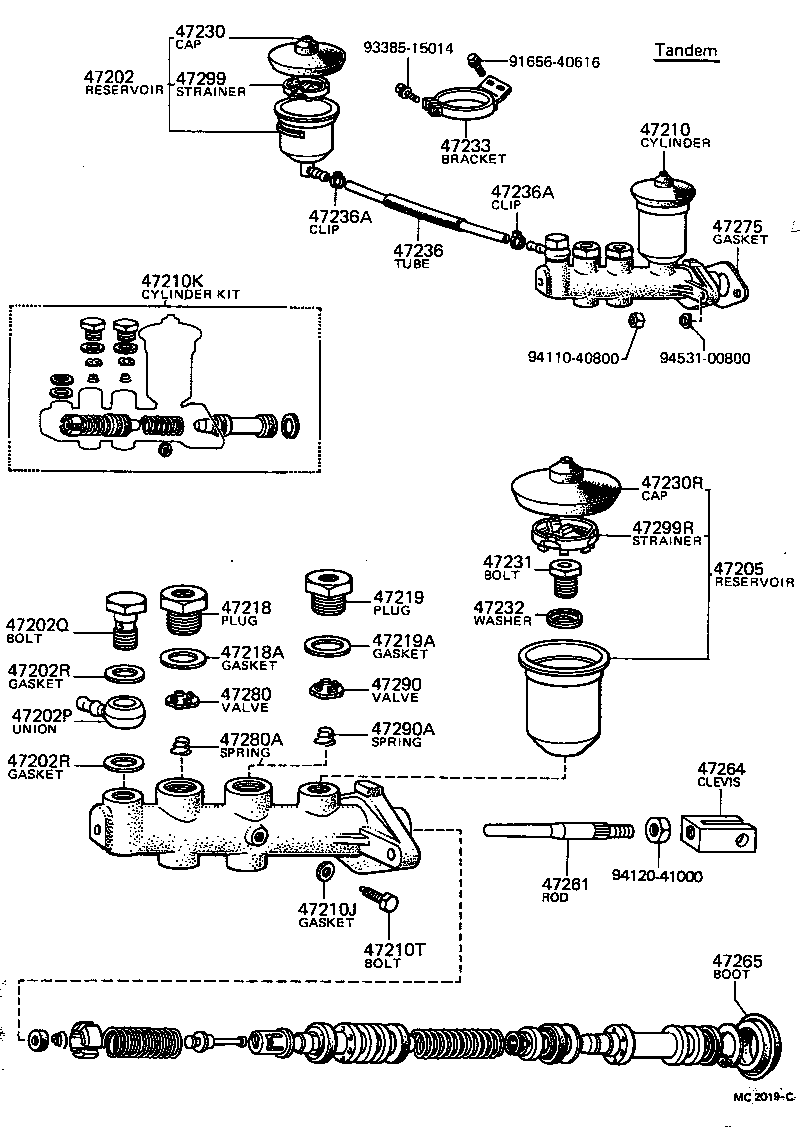

TA12-KD (1970)
Toyota Carina
(7012-7207)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-12020 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47202-12030 |
TA1#..RHD FOR FRONT DISC BRAKE |
1 | ||
| 47202-12050 |
TA1# FOR DRUM,SINGLE |
1 | ||
| 47202-12080 |
TA12..RHD FOR W/BOOSTER |
1 | ||
| 47202-12070 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47202-12100 |
TA1# FOR W/BOOSTER |
1 | ||
| 47202-12010 |
TA1# FOR FRONT DRUM BRAKE |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-22011 |
TA1#..RHD |
1 | ||
| 31426-30011 |
TA1# |
1 | ||
| 31426-22011 |
TA12;TA10..4D;TA10..RHD..2D |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
TA1#..RHD |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
TA1#..RHD |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
TA1#..RHD |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
TA1#..RHD |
2 | ||
| 47205P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER REAR SIDE) | ||||
| 90405-10125 |
TA12..RHD |
1 | ||
| 47205Q - BOLT, RSVR UNION, NO.2(FOR BRAKE MASTER CYLINDER RR SID | ||||
| 90401-16078 |
TA12..RHD |
1 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16044 |
TA12..RHD |
2 | ||
| 47205R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER REAR | ||||
| 90430-16044 |
TA12..RHD |
2 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-14010 |
TA1# SINGLE |
1 | ||
| 47201-14010 |
TA12..RHD SINGLE,FOR BOOSTER |
1 | ||
| 47201-14010 |
TA1#..RHD SINGLE,FOR BOOSTER |
1 | ||
| 47201-14060 |
TA12..RHD TANDEM |
1 | ||
| 47201-14011 |
TA12..RHD SINGLE,FOR W/BOOSTER |
1 | ||
| 47201-14030 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47200-14011 |
TA12..RHD SINGLE,FOR L/BOOSTER |
1 | ||
| 47201-14031 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
TA12 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-14011 |
TA12 TANDEM MASTER |
1 | ||
| 04471-12043 |
TA1#..RHD SINGLE,L/BOOSTER |
1 | ||
| 04493-14011 |
TA1# TANDEM |
1 | ||
| 04471-12043 |
TA1# FOR SINGLE MASTER |
1 | ||
| 04471-14021 |
TA1# SINGLE W/BOOSTER |
1 | ||
| 04471-12043 |
TA1#..DLX,STD SINGLE |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06055 |
TA1# |
1 | ||
| 90109-06077 |
TA1# |
1 | ||
| 90109-06055 |
TA12 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-12010 |
TA1# SINGLE M/C |
1 | ||
| 47218-30010 |
TA1# |
1 | ||
| 47218-30010 |
TA12 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-20018 |
TA1# |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-30010 |
TA1# |
1 | ||
| 47218-30010 |
TA12 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-20018 |
TA12..RHD |
1 | ||
| 90430-20018 |
TA1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12030 |
TA1# |
1 | ||
| 47230-12011 |
TA1# |
1 | ||
| 47230-12020 |
TA12;TA10..4D;TA10..RHD..2D |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-14011 |
TA12..RHD |
1 | ||
| 47233-14010 |
TA1#..RHD |
1 | ||
| 47233-14030 |
TA12..RHD |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-14010 |
TA12..RHD |
1 | ||
| 47236-14020 |
TA12..RHD SINGLE M/C |
1 | ||
| 47236-14020 |
TA1#..RHD FOR FR.DISC BRK |
1 | ||
| 90445-16537 |
TA12..RHD TANDEM M/C |
1 | ||
| 90445-17003 |
TA12..RHD TANDEM M/C |
1 | ||
| 90445-17004 |
TA12..RHD SINGLE M/C |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
TA1#..RHD |
2 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
TA1#..RHD |
2 | ||
| 47238 - HOSE, MASTER CYLINDER BRIDGE | ||||
| 90445-16516 |
TA12..RHD L=130 |
1 | ||
| 47238A - CLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE) | ||||
| 90460-16069 |
TA12..RHD |
2 | ||
| 47238A - CLAMP, HOSE(FOR MASTER CYLINDER BRIDGE HOSE) | ||||
| 90460-16069 |
TA12..RHD |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 44646-14030 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47206-14010 |
TA12..RHD SINGLE MASTER |
1 | ||
| 47206-14010 |
TA1# SINGLE MASTER |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 31453-30011 |
TA1#..RHD |
1 | ||
| 31453-30011 |
TA12..RHD |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-14011 |
TA1# FOR W/BOOSTER |
1 | ||
| 47265-14010 |
TA1# |
1 | ||
| 47265-12020 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
TA1# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-12010 |
TA1# |
1 | ||
| 47281-14011 |
TA1# TANDEM M/C |
1 | ||
| 47280-12020 |
TA1# SINGLE M/C |
1 | ||
| 47281-14011 |
TA12 TANDEM M/C |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90501-10074 |
TA1# SINGLE M/C |
1 | ||
| 90502-03047 |
TA12 TANDEM MASTER |
2 | ||
| 90502-03047 |
TA1# TANDEM M/C |
1 | ||
| 90501-10698 |
TA1# SINGLE M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-14011 |
TA12 TANDEM MASTER |
1 | ||
| 47281-14011 |
TA1# |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90502-03047 |
TA1# |
1 | ||
| Common parts | ||||
| 93385-15014 | ||||
| 93385-16012 | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| 94531-00800 | ||||
(7012-7509)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-12020 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47202-12030 |
TA1#..RHD FOR FRONT DISC BRAKE |
1 | ||
| 47202-12050 |
TA1# FOR DRUM,SINGLE |
1 | ||
| 47202-12080 |
TA12..RHD FOR W/BOOSTER |
1 | ||
| 47202-12070 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47202-12100 |
TA1# FOR W/BOOSTER |
1 | ||
| 47202-12010 |
TA1# FOR FRONT DRUM BRAKE |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-22011 |
TA1#..RHD |
1 | ||
| 31426-30011 |
TA1# |
1 | ||
| 31426-22011 |
TA12;TA10..4D;TA10..RHD..2D |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-14010 |
TA1# SINGLE |
1 | ||
| 47201-14010 |
TA12..RHD SINGLE,FOR BOOSTER |
1 | ||
| 47201-14010 |
TA1#..RHD SINGLE,FOR BOOSTER |
1 | ||
| 47201-14060 |
TA12..RHD TANDEM |
1 | ||
| 47201-14011 |
TA12..RHD SINGLE,FOR W/BOOSTER |
1 | ||
| 47201-14030 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47200-14011 |
TA12..RHD SINGLE,FOR L/BOOSTER |
1 | ||
| 47201-14031 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47210A - BOLT OR STUD BOLT(FOR BRAKE MASTER CYLINDER SETTING) | ||||
| 90116-08037 |
TA1# |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-14011 |
TA12 TANDEM MASTER |
1 | ||
| 04471-12043 |
TA1#..RHD SINGLE,L/BOOSTER |
1 | ||
| 04493-14011 |
TA1# TANDEM |
1 | ||
| 04471-12043 |
TA1# FOR SINGLE MASTER |
1 | ||
| 04471-14021 |
TA1# SINGLE W/BOOSTER |
1 | ||
| 04471-12043 |
TA1#..DLX,STD SINGLE |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-12010 |
TA1# SINGLE M/C |
1 | ||
| 47218-30010 |
TA1# |
1 | ||
| 47218-30010 |
TA12 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-20018 |
TA1# |
1 | ||
| 47218B - BOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90401-10014 |
TA1# |
1 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-10074 |
TA1# |
2 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-10074 |
TA1# |
2 | ||
| 47218D - UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90412-10033 |
TA1#..RHD |
1 | ||
| 90412-10033 |
TA12..RHD FOR W/BOOSTER |
1 | ||
| 90405-10072 |
TA1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12030 |
TA1# |
1 | ||
| 47230-12011 |
TA1# |
1 | ||
| 47230-12020 |
TA12;TA10..4D;TA10..RHD..2D |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-35010 |
TA1# |
2 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-35010 |
TA1# |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 44646-14030 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47206-14010 |
TA12..RHD SINGLE MASTER |
1 | ||
| 47206-14010 |
TA1# SINGLE MASTER |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-14011 |
TA1# FOR W/BOOSTER |
1 | ||
| 47265-14010 |
TA1# |
1 | ||
| 47265-12020 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47276 - BRACKET, BRAKE MASTER CYLINDER | ||||
| 47276-14010 |
TA1#..DLX,STD |
1 | ||
| 47278 - GASKET, BRAKE MASTER CYLINDER BRACKET | ||||
| 47278-14010 |
TA1# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-12010 |
TA1# |
1 | ||
| 47281-14011 |
TA1# TANDEM M/C |
1 | ||
| 47280-12020 |
TA1# SINGLE M/C |
1 | ||
| 47281-14011 |
TA12 TANDEM M/C |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90501-10074 |
TA1# SINGLE M/C |
1 | ||
| 90502-03047 |
TA12 TANDEM MASTER |
2 | ||
| 90502-03047 |
TA1# TANDEM M/C |
1 | ||
| 90501-10698 |
TA1# SINGLE M/C |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22020 |
TA12..RHD |
1 | ||
| 47299-22010 |
TA1# |
1 | ||
| Common parts | ||||
| 90179-08146 | ||||
| 91611-40816 | ||||
(7012-7509)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-12020 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47202-12030 |
TA1#..RHD FOR FRONT DISC BRAKE |
1 | ||
| 47202-12050 |
TA1# FOR DRUM,SINGLE |
1 | ||
| 47202-12080 |
TA12..RHD FOR W/BOOSTER |
1 | ||
| 47202-12070 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47202-12100 |
TA1# FOR W/BOOSTER |
1 | ||
| 47202-12010 |
TA1# FOR FRONT DRUM BRAKE |
1 | ||
| 47202A - FLOAT, MASTER CYLINDER RESERVOIR | ||||
| 31426-22011 |
TA1#..RHD |
1 | ||
| 31426-30011 |
TA1# |
1 | ||
| 31426-22011 |
TA12;TA10..4D;TA10..RHD..2D |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
TA1#..RHD |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
TA1#..RHD |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
TA1#..RHD |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
TA1#..RHD |
2 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-14010 |
TA1# SINGLE |
1 | ||
| 47201-14010 |
TA12..RHD SINGLE,FOR BOOSTER |
1 | ||
| 47201-14010 |
TA1#..RHD SINGLE,FOR BOOSTER |
1 | ||
| 47201-14060 |
TA12..RHD TANDEM |
1 | ||
| 47201-14011 |
TA12..RHD SINGLE,FOR W/BOOSTER |
1 | ||
| 47201-14030 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47200-14011 |
TA12..RHD SINGLE,FOR L/BOOSTER |
1 | ||
| 47201-14031 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-14011 |
TA12 TANDEM MASTER |
1 | ||
| 04471-12043 |
TA1#..RHD SINGLE,L/BOOSTER |
1 | ||
| 04493-14011 |
TA1# TANDEM |
1 | ||
| 04471-12043 |
TA1# FOR SINGLE MASTER |
1 | ||
| 04471-14021 |
TA1# SINGLE W/BOOSTER |
1 | ||
| 04471-12043 |
TA1#..DLX,STD SINGLE |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-12010 |
TA1# SINGLE M/C |
1 | ||
| 47218-30010 |
TA1# |
1 | ||
| 47218-30010 |
TA12 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-20018 |
TA1# |
1 | ||
| 47218B - BOLT, UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90401-10014 |
TA1# |
1 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-10074 |
TA1# |
2 | ||
| 47218C - GASKET(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90430-10074 |
TA1# |
2 | ||
| 47218D - UNION(FOR MASTER CYLINDER FLUID OUTLET) | ||||
| 90412-10033 |
TA1#..RHD |
1 | ||
| 90412-10033 |
TA12..RHD FOR W/BOOSTER |
1 | ||
| 90405-10072 |
TA1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12030 |
TA1# |
1 | ||
| 47230-12011 |
TA1# |
1 | ||
| 47230-12020 |
TA12;TA10..4D;TA10..RHD..2D |
1 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-14011 |
TA12..RHD |
1 | ||
| 47233-14010 |
TA1#..RHD |
1 | ||
| 47233-14030 |
TA12..RHD |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-14010 |
TA12..RHD |
1 | ||
| 47236-14020 |
TA12..RHD SINGLE M/C |
1 | ||
| 47236-14020 |
TA1#..RHD FOR FR.DISC BRK |
1 | ||
| 90445-16537 |
TA12..RHD TANDEM M/C |
1 | ||
| 90445-17003 |
TA12..RHD TANDEM M/C |
1 | ||
| 90445-17004 |
TA12..RHD SINGLE M/C |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
TA1#..RHD |
2 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
TA1#..RHD |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 44646-14030 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47206-14010 |
TA12..RHD SINGLE MASTER |
1 | ||
| 47206-14010 |
TA1# SINGLE MASTER |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-14011 |
TA1# FOR W/BOOSTER |
1 | ||
| 47265-14010 |
TA1# |
1 | ||
| 47265-12020 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
TA1# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-12010 |
TA1# |
1 | ||
| 47281-14011 |
TA1# TANDEM M/C |
1 | ||
| 47280-12020 |
TA1# SINGLE M/C |
1 | ||
| 47281-14011 |
TA12 TANDEM M/C |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90501-10074 |
TA1# SINGLE M/C |
1 | ||
| 90502-03047 |
TA12 TANDEM MASTER |
2 | ||
| 90502-03047 |
TA1# TANDEM M/C |
1 | ||
| 90501-10698 |
TA1# SINGLE M/C |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22020 |
TA12..RHD |
1 | ||
| 47299-22010 |
TA1# |
1 | ||
| Common parts | ||||
| 91656-40616 | ||||
| 93385-15014 | ||||
| 94110-40800 | ||||
| 94531-00800 | ||||
(7208-7509)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47202-12020 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47202-12030 |
TA1#..RHD FOR FRONT DISC BRAKE |
1 | ||
| 47202-12050 |
TA1# FOR DRUM,SINGLE |
1 | ||
| 47202-12080 |
TA12..RHD FOR W/BOOSTER |
1 | ||
| 47202-12070 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47202-12100 |
TA1# FOR W/BOOSTER |
1 | ||
| 47202-12010 |
TA1# FOR FRONT DRUM BRAKE |
1 | ||
| 47202P - UNION, RESERVOIR(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90405-10125 |
TA1#..RHD |
1 | ||
| 47202Q - BOLT, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90401-16078 |
TA1#..RHD |
1 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
TA1#..RHD |
2 | ||
| 47202R - GASKET, RESERVOIR UNION(FOR BRAKE MASTER CYLINDER SIDE) | ||||
| 90430-16044 |
TA1#..RHD |
2 | ||
| 47205 - RESERVOIR SET, BRAKE MASTER CYLINDER(FOR REAR SIDE) | ||||
| 47202-12070 |
TA1# |
1 | ||
| 47210 - CYLINDER ASSY, MASTER, W/O BOOSTER | ||||
| 47200-14010 |
TA1# SINGLE |
1 | ||
| 47201-14010 |
TA12..RHD SINGLE,FOR BOOSTER |
1 | ||
| 47201-14010 |
TA1#..RHD SINGLE,FOR BOOSTER |
1 | ||
| 47201-14060 |
TA12..RHD TANDEM |
1 | ||
| 47201-14011 |
TA12..RHD SINGLE,FOR W/BOOSTER |
1 | ||
| 47201-14030 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47200-14011 |
TA12..RHD SINGLE,FOR L/BOOSTER |
1 | ||
| 47201-14031 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
TA12 |
1 | ||
| 47210K - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-14011 |
TA12 TANDEM MASTER |
1 | ||
| 04471-12043 |
TA1#..RHD SINGLE,L/BOOSTER |
1 | ||
| 04493-14011 |
TA1# TANDEM |
1 | ||
| 04471-12043 |
TA1# FOR SINGLE MASTER |
1 | ||
| 04471-14021 |
TA1# SINGLE W/BOOSTER |
1 | ||
| 04471-12043 |
TA1#..DLX,STD SINGLE |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06055 |
TA1# |
1 | ||
| 90109-06077 |
TA1# |
1 | ||
| 90109-06055 |
TA12 |
1 | ||
| 47218 - PLUG, MASTER CYLINDER FLUID OUTLET | ||||
| 47218-12010 |
TA1# SINGLE M/C |
1 | ||
| 47218-30010 |
TA1# |
1 | ||
| 47218-30010 |
TA12 |
1 | ||
| 47218A - GASKET(FOR FLUID OUTLET PLUG) | ||||
| 90430-20018 |
TA1# |
1 | ||
| 47219 - PLUG, MASTER CYLINDER FLUID OUTLET(FOR REAR SIDE) | ||||
| 47218-30010 |
TA1# |
1 | ||
| 47218-30010 |
TA12 |
1 | ||
| 47219A - GASKET(FOR FLUID OUTLET PLUG REAR SIDE) | ||||
| 90430-20018 |
TA12..RHD |
1 | ||
| 90430-20018 |
TA1# |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12030 |
TA1# |
1 | ||
| 47230-12011 |
TA1# |
1 | ||
| 47230-12020 |
TA12;TA10..4D;TA10..RHD..2D |
1 | ||
| 47231 - BOLT, BRAKE MASTER CYLINDER RESERVOIR SET | ||||
| 47231-35010 |
TA1# |
2 | ||
| 47232 - WASHER, BRAKE RESERVOIR SET BOLT | ||||
| 47232-35010 |
TA1# |
2 | ||
| 47233 - BRACKET, RESERVOIR | ||||
| 47233-14011 |
TA12..RHD |
1 | ||
| 47233-14010 |
TA1#..RHD |
1 | ||
| 47233-14030 |
TA12..RHD |
1 | ||
| 47236 - TUBE, RESERVOIR BRAKE | ||||
| 47236-14010 |
TA12..RHD |
1 | ||
| 47236-14020 |
TA12..RHD SINGLE M/C |
1 | ||
| 47236-14020 |
TA1#..RHD FOR FR.DISC BRK |
1 | ||
| 90445-16537 |
TA12..RHD TANDEM M/C |
1 | ||
| 90445-17003 |
TA12..RHD TANDEM M/C |
1 | ||
| 90445-17004 |
TA12..RHD SINGLE M/C |
1 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
TA1#..RHD |
2 | ||
| 47236A - CLIP(FOR RESERVOIR TUBE) | ||||
| 90460-16069 |
TA1#..RHD |
2 | ||
| 47261 - ROD, MASTER CYLINDER PUSH | ||||
| 44646-14030 |
TA12..RHD TANDEM MASTER |
1 | ||
| 47206-14010 |
TA12..RHD SINGLE MASTER |
1 | ||
| 47206-14010 |
TA1# SINGLE MASTER |
1 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 31453-30011 |
TA1#..RHD |
1 | ||
| 31453-30011 |
TA12..RHD |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-14011 |
TA1# FOR W/BOOSTER |
1 | ||
| 47265-14010 |
TA1# |
1 | ||
| 47265-12020 |
TA1#..DLX,STD FOR L/BOOSTER |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-14010 |
TA1# |
1 | ||
| 47280 - VALVE ASSY, BRAKE MASTER CYLINDER OUTLET CHECK | ||||
| 47280-12010 |
TA1# |
1 | ||
| 47281-14011 |
TA1# TANDEM M/C |
1 | ||
| 47280-12020 |
TA1# SINGLE M/C |
1 | ||
| 47281-14011 |
TA12 TANDEM M/C |
1 | ||
| 47280A - SPRING, COMPRESSION | ||||
| 90501-10074 |
TA1# SINGLE M/C |
1 | ||
| 90502-03047 |
TA12 TANDEM MASTER |
2 | ||
| 90502-03047 |
TA1# TANDEM M/C |
1 | ||
| 90501-10698 |
TA1# SINGLE M/C |
1 | ||
| 47290 - VALVE ASSY, MASTER CYLINDER OUTLET(FOR REAR SIDE) | ||||
| 47281-14011 |
TA12 TANDEM MASTER |
1 | ||
| 47281-14011 |
TA1# |
1 | ||
| 47290A - SPRING, COMPRESSION(FOR FLUID OUTLET REAR SIDE) | ||||
| 90502-03047 |
TA1# |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-22020 |
TA12..RHD |
1 | ||
| 47299-22010 |
TA1# |
1 | ||
| 47299R - STRAINER, MASTER CYLINDER RESERVOIR, REAR | ||||
| 47299-22010 |
TA1# |
1 | ||
| Common parts | ||||
| 91656-40616 | ||||
| 93385-15014 | ||||
| 94110-40800 | ||||
| 94120-41000 | ||||
| 94531-00800 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
