TA12-HF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)4D

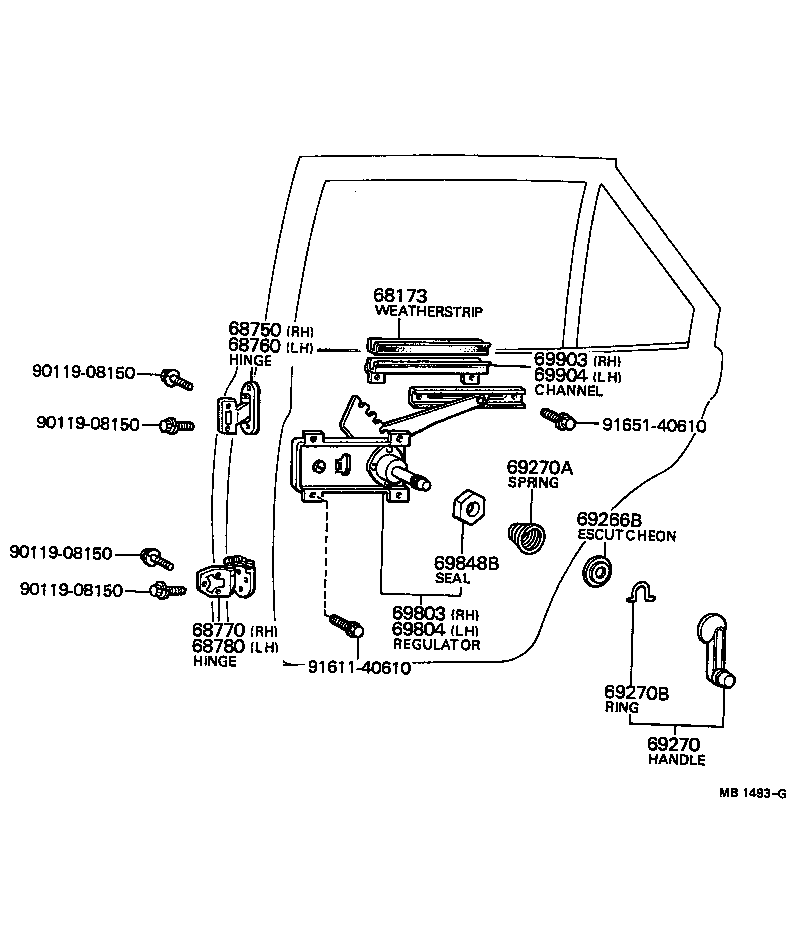

Click highlighted areas on diagram

diagram 68173 68750 68760 68770 68780 69266B 69270 69270A 69270B 69803 69804 69848B 69903 69904 9011908150 9011908150 9011908150 9011908150 9161140610 9165140610
Part # Description Qty Price
68173 - WEATHERSTRIP, REAR DOOR GLASS CHANNEL
68173-20030

TA1#..4D

 2
68750 - HINGE ASSY, REAR DOOR, UPPER RH
68750-20030

TA1#..4D

 1
68760 - HINGE ASSY, REAR DOOR, UPPER LH
68760-20020

TA1#..4D

 1
68770 - HINGE ASSY, REAR DOOR, LOWER RH
68730-20031

TA1#..4D

 1
68780 - HINGE ASSY, REAR DOOR, LOWER LH
68740-20031

TA1#..4D

 1
69266B - ESCUTCHEON, DOOR REGULATOR HANDLE(FOR REAR DOOR)
69266-22010

TA1#..4D

 2
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-14010

TA1#..4D

 2
69260-29015

TA1#..4D

 2
69270A - SPRING(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90502-16018

TA1#..4D

 2
69270B - RING, SHAFT SNAP(FOR REAR DOOR WINDOW REGULATOR HANDLE)
90520-01002

TA1#..4D

 2
69803 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH
69803-20030

TA1#..4D

 1
69804 - REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH
69804-20030

TA1#..4D

 1
69848B - SEAL, WINDOW REGULATOR HOLE(FOR REAR DOOR)
69848-30010

TA1#..4D

 2
69903 - CHANNEL SUB-ASSY, REAR DOOR GLASS, RH
69903-20040

TA1#..4D

 1
69904 - CHANNEL SUB-ASSY, REAR DOOR GLASS, LH
69903-20040

TA1#..4D

 1
Common parts
90119-08150
91611-40610
91651-40610
