TA12-HF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7308)3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35056 - LEVER SUB-ASSY, PARKING LOCK W/ROLLER | ||||
| 35056-30010 |
TA12..3FC |
1 | ||
| 35056A - SPRING, PARKING LOCK LEVER | ||||
| 90508-26122 |
TA12..3FC |
1 | ||
| 35056B - PIN, PARKING LOCK LEVER | ||||
| 90254-04013 |
TA12..3FC |
2 | ||
| 35056B - PIN, PARKING LOCK LEVER | ||||
| 90254-04013 |
TA12..3FC |
2 | ||
| 35059 - SHAFT SUB-ASSY, PARKING LOCK | ||||
| 35059-22010 |
TA12..3FC |
1 | ||
| 35502 - LEVER SUB-ASSY, THROTTLE VALVE | ||||
| 35532-30010 |
TA12..3FC |
1 | ||
| 35502C - WASHER, WAVE (FOR THROTTLE VALVE INNER LEVER) | ||||
| 90206-08024 |
TA12..3FC |
1 | ||
| 35505 - LEVER SUB-ASSY, MANUAL VALVE | ||||
| 35505-30010 |
TA12..3FC |
1 | ||
| 35505E - SPRING, COMPRESSION (FOR MANUAL VALVE LEVER) | ||||
| 90501-12324 |
TA12..3FC WD=1.2,CW=15 |
1 | ||
| 35505F - BALL (FOR MANUAL VALVE LEVER) | ||||
| 90360-08009 |
TA12..3FC |
1 | ||
| 35506 - SHAFT SUB-ASSY, MANUAL VALVE LEVER | ||||
| 35506-14010 |
TA12..3FC |
1 | ||
| 35561-20020 |
TA12..3FC |
1 | ||
| 35506C - PIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER SHAFT) | ||||
| 90254-03010 |
TA12..3FC |
1 | ||
| 35509 - LEVER SUB-ASSY, THROTTLE VALVE, OUTER | ||||
| 35502-30011 |
TA12..3FC |
1 | ||
| 35556 - SHAFT, PARKING LOCK PAWL | ||||
| 35556-30010 |
TA12..3FC |
1 | ||
| 35556D - SPACER (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90560-11253 |
TA12..3FC |
2 | ||
| 35556D - SPACER (FOR PARKING LOCK PAWL SHAFT) | ||||
| 90560-11253 |
TA12..3FC |
2 | ||
| 35557 - PAWL, PARKING LOCK | ||||
| 35557-30011 |
TA12..3FC |
1 | ||
| 35557A - SPRING, TORSION (FOR PARKING LOCK PAWL) | ||||
| 90508-16135 |
TA12..3FC |
1 | ||
| 35573 - LEVER, TRANSMISSION CONTROL SHAFT, LH | ||||
| 35573-14010 |
TA12..3FC |
1 | ||
| 35573A - BUSH (FOR TRANSMISSION CONTROL SHAFT LEVER) | ||||
| 90389-06014 |
TA12..3FC |
1 | ||
| 35573B - WASHER (FOR TRANSMISSION CONTROL SHAFT LEVER SETTING) | ||||
| 90206-06002 |
TA12..3FC |
1 | ||
| 35585 - ROD, PARKING LOCK | ||||
| 35585-14010 |
TA12..3FC |
1 | ||
| 35585A - NUT (FOR PARKING LOCK ROD SETTING) | ||||
| 90170-08103 |
TA12..3FC |
2 | ||
| 35585A - NUT (FOR PARKING LOCK ROD SETTING) | ||||
| 90170-08103 |
TA12..3FC |
2 | ||
| 35588 - SWIVEL, PARKING LOCK ROD | ||||
| 35588-30010 |
TA12..3FC |
1 | ||
| 35588A - BUSH (FOR PARKING LOCK ROD SWIVEL) | ||||
| 90389-06014 |
TA12..3FC |
1 | ||
| 35588B - WASHER (FOR PARKING LOCK ROD SWIVEL) | ||||
| 90206-06002 |
TA12..3FC |
1 | ||
| Common parts | ||||
| 94110-40600 | ||||
| 94120-40800 | ||||
| 94511-00600 | ||||
| 94512-00800 | ||||
| 94611-11000 | ||||
| 94612-10600 | ||||
| 94612-10800 | ||||
| 94612-11000 | ||||
| 94613-10800 | ||||
| 94613-11000 | ||||
| 95381-02015 | ||||

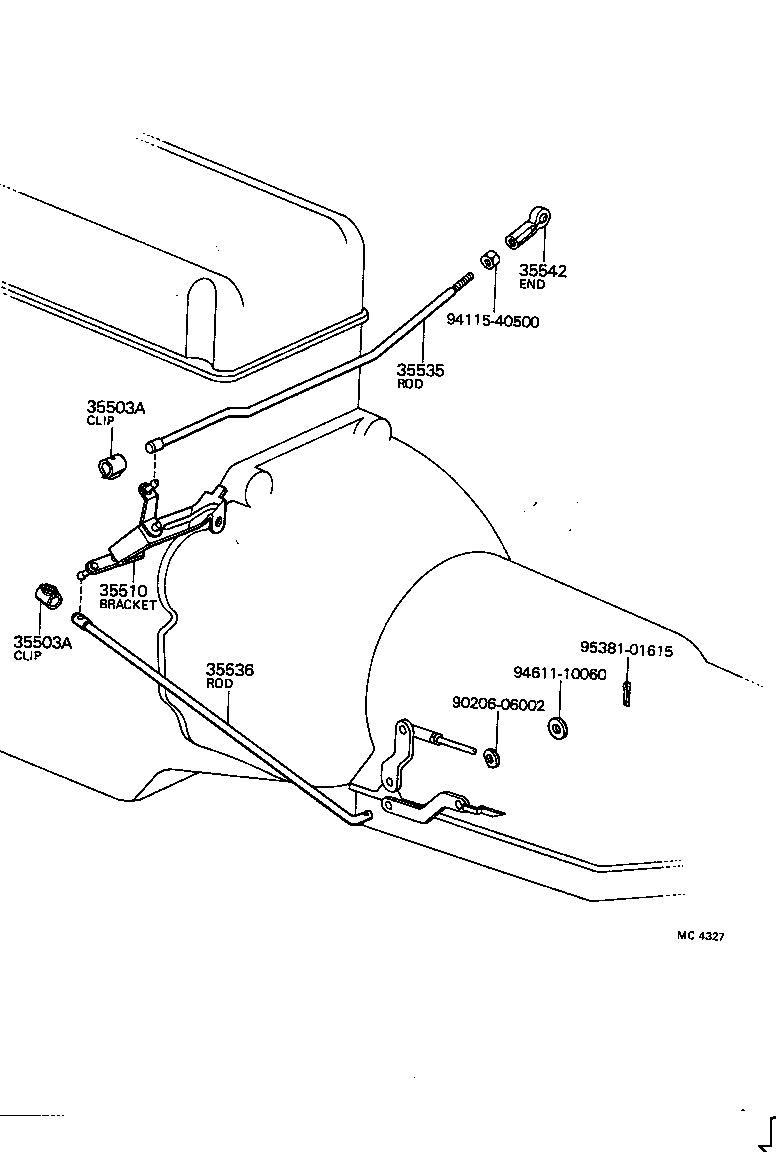

(7012-7308)3FC
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 35503A - CLIP(FOR THROTTLE LINK CONNECTING ROD) | ||||
| 78197-10010 |
TA12..3FC |
2 | ||
| 35503A - CLIP(FOR THROTTLE LINK CONNECTING ROD) | ||||
| 78197-10010 |
TA12..3FC |
2 | ||
| 35510 - BRACKET ASSY, THROTTLE LINK BELLCRANK, NO.2 | ||||
| 35510-14011 |
TA12..3FC |
1 | ||
| 35510-14010 |
TA12..3FC |
1 | ||
| 35535 - ROD, THROTTLE LINK CONNECTING, 2ND | ||||
| 35535-14021 |
TA12..3FC |
1 | ||
| 35536 - ROD, THROTTLE LINK CONNECTING, 3RD | ||||
| 35536-14010 |
TA12..3FC |
1 | ||
| 35542 - END, THROTTLE LINK CONNECTING ROD | ||||
| 35542-14010 |
TA12..3FC |
1 | ||
| Common parts | ||||
| 90206-06002 | ||||
| 94115-40500 | ||||
| 94611-10060 | ||||
| 95381-01615 | ||||
