TA12-HF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

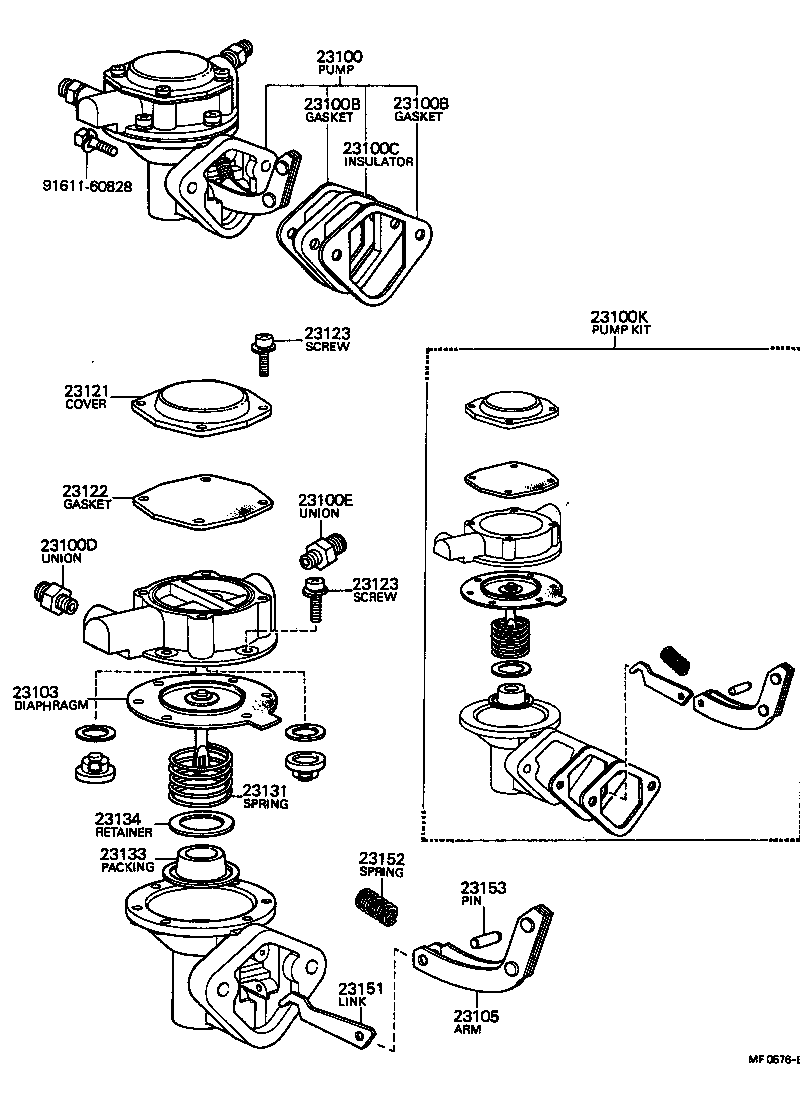

(7012-7204)

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23100K 23103 23105 23121 23122 23123 23123 23131 23133 23134 23151 23152 23153 9161160828
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-29055

T,2T..TA1#

 1
23100-29056

T,2T..TA1#

 1
23100-29105

T,2T#..TA1#

 1
23100-29057

T,2T#..TA1#

 1
23100B - GASKET, FUEL PUMP
90923-05005

T,2T#..TA1#

 2
23100B - GASKET, FUEL PUMP
90923-05005

T,2T#..TA1#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

T,2T#..TA1#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13265

T,2T#..TA1#

 1
90404-13105

T,2T#..TA1#

 1
90404-51244

T,2T#..TA1#

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
90404-51266

T,2T#..TA1#

 1
90404-13105

T,2T..TA1#

 1
90404-51244

T,2T#..TA1#

 1
23100K - PUMP KIT, FUEL
04231-25010

T,2T..TA1#

 1
23103 - DIAPHRAGM SUB-ASSY
23103-25010

T,2T..TA1#

 1
23105 - ARM SUB-ASSY, ROCKER
23105-30030

T,2T..TA1#

 1
23121 - COVER, FUEL PUMP
23121-34020

T,2T#..TA1#

 1
23122 - GASKET, FUEL PUMP COVER
23122-34020

T,2T#..TA1#

 1
23123 - SCREW, COVER SET, NO.1
23123-33011

T,2T#..TA1#

 10
23123-60022

T,2T#..TA1#

FOR BODY SET

 6
23123 - SCREW, COVER SET, NO.1
23123-33011

T,2T#..TA1#

 10
23123-60022

T,2T#..TA1#

FOR BODY SET

 6
23131 - SPRING, DIAPHRAGM(FOR FUEL PUMP)
23131-25010

T,2T..TA1#

 1
23133 - PACKING, OIL SEAL(FOR FUEL PUMP)
23133-33011

T,2T..TA1#

 1
23133-33010

T,2T..TA1#

 1
23134 - RETAINER, OIL SEAL PACKING(FOR FUEL PUMP)
23134-22010

T,2T..TA1#

 1
23134-22011

T,2T..TA1#

 1
23151 - LINK, ROCKER ARM
23151-30020

T,2T..TA1#

 1
23152 - SPRING, ROCKER ARM
23152-33010

T,2T..TA1#

 1
23152-30020

T,2T#..TA1#

 1
23153 - PIN, ROCKER ARM
23153-60011

T,2T..TA1#

 1
Common parts
91611-60828

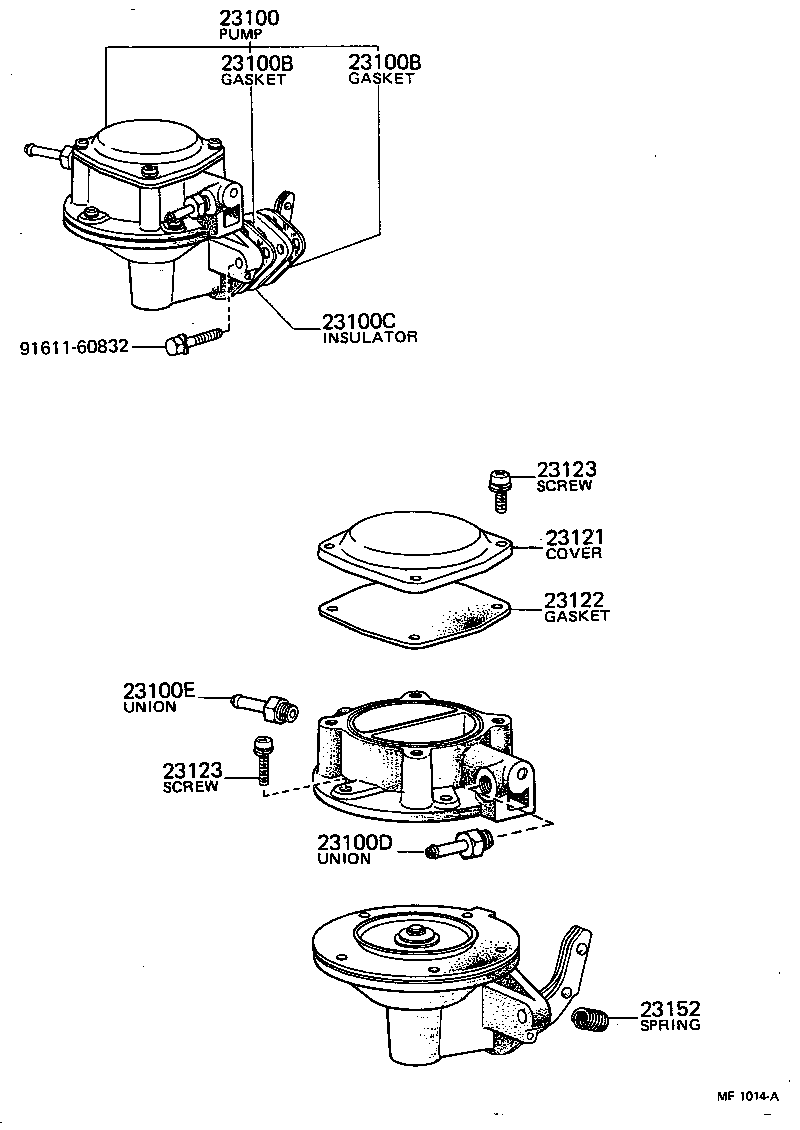

(7205-7509)

Click highlighted areas on diagram

diagram 23100 23100B 23100B 23100C 23100D 23100E 23121 23122 23123 23123 23152 9161160832
Part # Description Qty Price
23100 - PUMP ASSY, FUEL
23100-29055

T,2T..TA1#

 1
23100-29056

T,2T..TA1#

 1
23100-29105

T,2T#..TA1#

 1
23100-29057

T,2T#..TA1#

 1
23100B - GASKET, FUEL PUMP
90923-05005

T,2T#..TA1#

 2
23100B - GASKET, FUEL PUMP
90923-05005

T,2T#..TA1#

 2
23100C - INSULATOR, FUEL PUMP
90923-06001

T,2T#..TA1#

 1
23100D - UNION, NIPPLE(FOR FUEL OUTLET)
90404-13265

T,2T#..TA1#

 1
90404-13105

T,2T#..TA1#

 1
90404-51244

T,2T#..TA1#

 1
23100E - UNION, NIPPLE(FOR FUEL INLET)
90404-51266

T,2T#..TA1#

 1
90404-13105

T,2T..TA1#

 1
90404-51244

T,2T#..TA1#

 1
23121 - COVER, FUEL PUMP
23121-34020

T,2T#..TA1#

 1
23122 - GASKET, FUEL PUMP COVER
23122-34020

T,2T#..TA1#

 1
23123 - SCREW, COVER SET, NO.1
23123-33011

T,2T#..TA1#

 10
23123-60022

T,2T#..TA1#

FOR BODY SET

 6
23123 - SCREW, COVER SET, NO.1
23123-33011

T,2T#..TA1#

 10
23123-60022

T,2T#..TA1#

FOR BODY SET

 6
23152 - SPRING, ROCKER ARM
23152-33010

T,2T..TA1#

 1
23152-30020

T,2T#..TA1#

 1
Common parts
91611-60832
