TA12-HDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

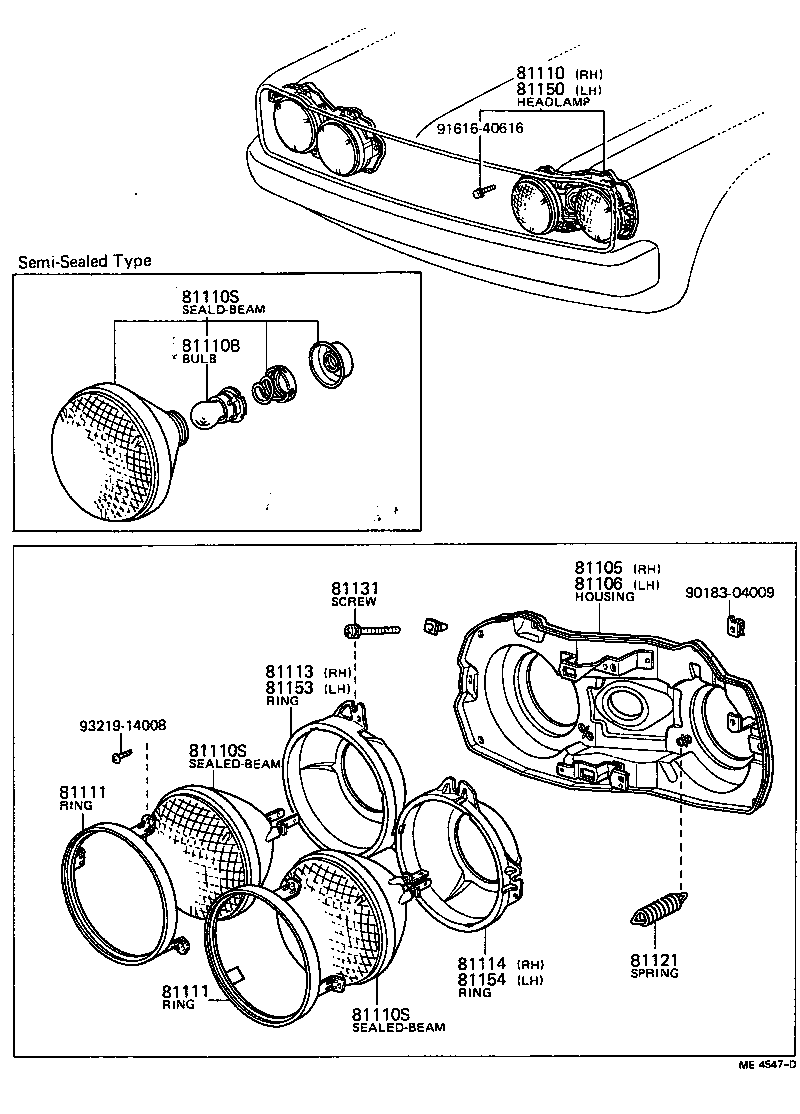

Click highlighted areas on diagram

diagram 81105 81106 81110 81110B 81110S 81110S 81110S 81111 81111 81113 81114 81121 81131 81150 81153 81154 9018304009 9161640616 9321914008
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-14021

TA1#

TOSHIBA

 1
81105-14010

TA1#

KOITO

 1
81105-14011

TA1#

KOITO

 1
81105-14150

TA1#

TOSHIBA

 1
81105-14020

TA1#

TOSHIBA

 1
81105-14150

TA1#

IKI

 1
81105-14160

TA1#

KOITO

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-14010

TA1#

KOITO

 1
81106-14011

TA1#

KOITO

 1
81106-14161

TA1#

KOITO

 1
81106-14020

TA1#

TOSHIBA

 1
81106-14150

TA1#

IKI

 1
81106-14150

TA1#

TOSHIBA

 1
81106-14021

TA1#

TOSHIBA

 1
81110 - HEADLAMP ASSY, RH
81110-19045

TA1#..RHD

KOITO

 1
81110-19065

TA1#

L/SEALED-BEAM

 1
81110-19046

TA12..RHD

KOITO

 1
81110-19275

TA12..RHD

TOSHIBA

 1
81110-19305

TA12..RHD

TOSHIBA

 1
81110-19305

TA12..RHD

IKI

 1
81110-19295

TA12..RHD

KOITO

 1
81110S - SEALED BEAM UNIT, NO.1
90981-02003

TA1#

12V 37.5W,TOSHIBA

 2
90981-02004

TA1#..RHD

12V 37.5/50W,TOSHIBA

 2
90981-02011

TA1#

12V 37.5W,*WB,12V 37.5W,KOITO

 2
90981-02012

TA1#..RHD

12V 37.5/50W,*WB,12V 37.5/50W,KOITO

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02003

TA1#

12V 37.5W,TOSHIBA

 2
90981-02004

TA1#..RHD

12V 37.5/50W,TOSHIBA

 2
90981-02011

TA1#

12V 37.5W,*WB,12V 37.5W,KOITO

 2
90981-02012

TA1#..RHD

12V 37.5/50W,*WB,12V 37.5/50W,KOITO

 2
81110S - SEALED BEAM UNIT, NO.1
90981-02003

TA1#

12V 37.5W,TOSHIBA

 2
90981-02004

TA1#..RHD

12V 37.5/50W,TOSHIBA

 2
90981-02011

TA1#

12V 37.5W,*WB,12V 37.5W,KOITO

 2
90981-02012

TA1#..RHD

12V 37.5/50W,*WB,12V 37.5/50W,KOITO

 2
81111 - RING, SEALED BEAM RETAINING
81111-20101

TA1#

TYPE 1,KOITO

 2
81111-20042

TA1#

TYPE 2,KOITO

 2
81111-14011

TA1#

TYPE 1,KOITO

 2
81111-20111

TA1#

TYPE 1,TOSHIBA

 2
81111-20110

TA1#

TYPE 2,TOSHIBA

 2
81111 - RING, SEALED BEAM RETAINING
81111-20101

TA1#

TYPE 1,KOITO

 2
81111-20042

TA1#

TYPE 2,KOITO

 2
81111-14011

TA1#

TYPE 1,KOITO

 2
81111-20111

TA1#

TYPE 1,TOSHIBA

 2
81111-20110

TA1#

TYPE 2,TOSHIBA

 2
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-20111

TA1#

TOSHIBA

 1
81113-20110

TA1#

TOSHIBA

 1
81113-20100

TA1#

KOITO

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-14010

TA1#

KOITO

 1
81114-14100

TA1#

TOSHIBA

 1
81121 - SPRING, HEADLAMP TENSION
90506-18018

TA1#

TOSHIBA

 4
90506-16019

TA1#

KOITO

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-20053

TA1#

TOSHIBA

 8
81131-20101

TA1#

KOITO

 8
81131-20043

TA1#

KOITO

 8
81150 - HEADLAMP ASSY, LH
81150-19065

TA1#

L/SEALED-BEAM

 1
81150-19045

TA1#..RHD

KOITO

 1
81150-19225

TA12..RHD

TOSHIBA

 1
81150-19046

TA12..RHD

KOITO

 1
81150-19256

TA12..RHD

TOSHIBA

 1
81150-19256

TA12..RHD

IKI

 1
81150-19246

TA12..RHD

KOITO

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-20070

TA1#

TOSHIBA

 1
81153-20100

TA1#

KOITO

 1
81153-20071

TA1#

TOSHIBA

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-14100

TA1#

TOSHIBA

 1
81154-14010

TA1#

KOITO

 1
Common parts
90183-04009
91616-40616
93219-14008
