TA12-HDF (1970)
Toyota Carina
(7012-7509)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

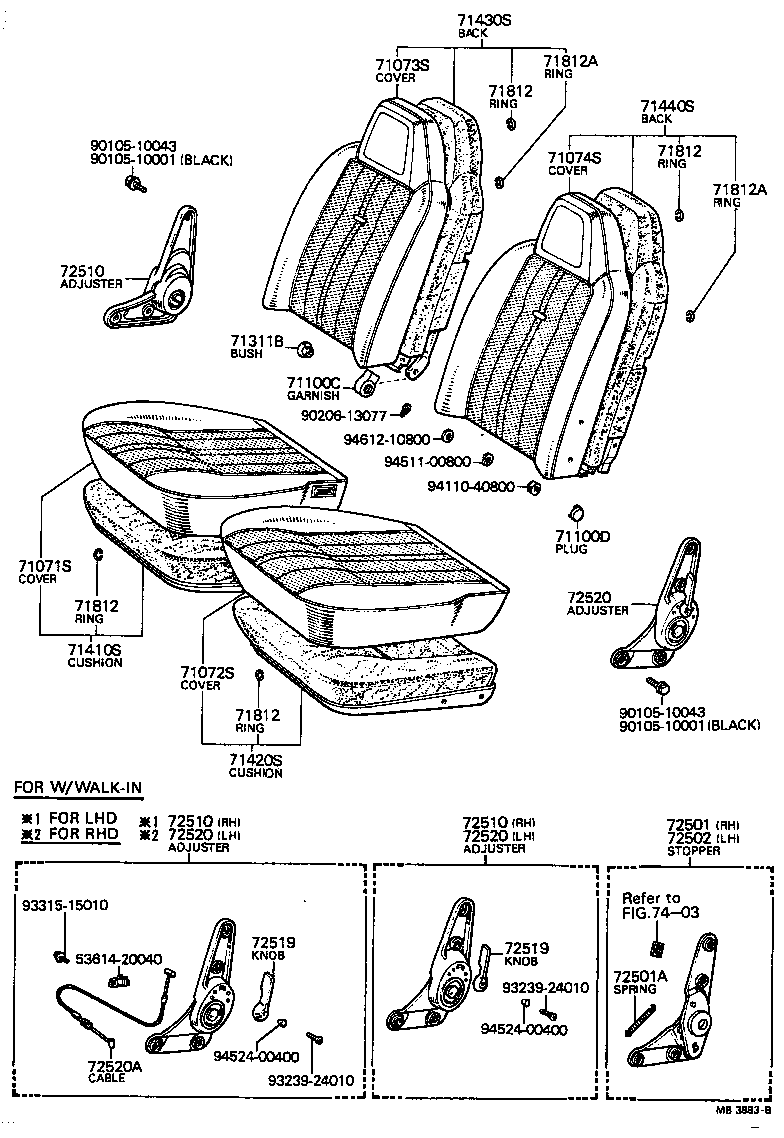

| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-1402006 |
TA12..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1404004 |
TA1# PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1404009 |
TA1# PF.GOLD,YELLOW |
1 | ||
| 71071-1402009 |
TA12..DLX FB.GOLD,YELLOW |
1 | ||
| 71071-1402004 |
TA12..DLX FB.BLUE,BLUE,TRIM8# |
1 | ||
| 71071-1404001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1404104 |
TA1# PF.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71071-1402001 |
TA12..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1404008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71071-1404106 |
TA1# PF.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1402106 |
TA1#..DLX FB.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1402101 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1402104 |
TA1#..DLX FB.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71071-1402206 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1427001 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1427006 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1427005 |
TA1#..DLX FB.BEIGE,BEIGE |
1 | ||
| 71071-1404101 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71071-1404006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71071-1402208 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71071-1402201 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-1404004 |
TA1# PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1402006 |
TA12..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1404008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71072-1402009 |
TA12..DLX FB.GOLD,YELLOW |
1 | ||
| 71072-1404006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1402001 |
TA12..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1404009 |
TA1# PF.GOLD,YELLOW |
1 | ||
| 71072-1404001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1402004 |
TA12..DLX FB.BLUE,BLUE,TRIM8# |
1 | ||
| 71072-1402106 |
TA1#..DLX FB.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1402104 |
TA1#..DLX FB.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71072-1404104 |
TA1# PF.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71072-1427006 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1404106 |
TA1# PF.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1402206 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71072-1427001 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1427005 |
TA1#..DLX FB.BEIGE,BEIGE |
1 | ||
| 71072-1404101 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1402201 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1402101 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71072-1402208 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-1402004 |
TA12..DLX FB.BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1402001 |
TA12..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1404009 |
TA1# PF.GOLD,YELLOW |
1 | ||
| 71073-1404004 |
TA1# PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1404006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402009 |
TA12..DLX FB.GOLD,YELLOW |
1 | ||
| 71073-1402006 |
TA12..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1404008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71073-1404001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1402106 |
TA1#..DLX FB.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402101 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1404101 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1404106 |
TA1# PF.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402104 |
TA1#..DLX FB.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71073-1402301 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1425006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1425008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71073-1402306 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402308 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71073-1402201 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1428001 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1404104 |
TA1# PF.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71073-1402206 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1425001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1428005 |
TA1#..DLX FB.BEIGE,BEIGE |
1 | ||
| 71073-1428006 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402208 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71073-1402009 |
TA12..DLX FB.GOLD,YELLOW |
1 | ||
| 71073-1404004 |
TA1# PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1402006 |
TA12..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402004 |
TA12..DLX FB.BLUE,BLUE,TRIM8# |
1 | ||
| 71073-1402001 |
TA12..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1404008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71073-1404006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402101 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1404009 |
TA1# PF.GOLD,YELLOW |
1 | ||
| 71073-1402106 |
TA1#..DLX FB.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402201 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1404001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1402104 |
TA1#..DLX FB.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71073-1404106 |
TA1# PF.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402206 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1402301 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1425008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71073-1402208 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71073-1404104 |
TA1# PF.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71073-1428005 |
TA1#..DLX FB.BEIGE,BEIGE |
1 | ||
| 71073-1425001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1404101 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1402308 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71073-1402306 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1425006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71073-1428001 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71073-1428006 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71100C - GARNISH, FRONT SEAT HINGE | ||||
| 71841-14010 |
TA1# |
2 | ||
| 71100D - PLUG, HOLE | ||||
| 90950-01098 |
TA1# |
2 | ||
| 71311B - BUSH (FOR FRONT SEAT HINGE PIN) | ||||
| 90386-12118 |
TA1# |
2 | ||
| 71410S - CUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71410-1402004 |
TA12..DLX FB.BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1404006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1402001 |
TA12..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1404004 |
TA1# PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71410-1402006 |
TA12..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1404008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71410-1404009 |
TA1# PF.GOLD,YELLOW |
1 | ||
| 71410-1402009 |
TA12..DLX FB.GOLD,YELLOW |
1 | ||
| 71410-1402206 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1402106 |
TA1#..DLX FB.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1402104 |
TA1#..DLX FB.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71410-1402201 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1428001 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1428005 |
TA1#..DLX FB.BEIGE,BEIGE |
1 | ||
| 71410-1404104 |
TA1# PF.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71410-1404001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1404106 |
TA1# PF.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1404101 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71410-1402208 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71410-1428006 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71410-1402101 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420S - CUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE) | ||||
| 71420-1402004 |
TA12..DLX FB.BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1404006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1402009 |
TA12..DLX FB.GOLD,YELLOW |
1 | ||
| 71420-1404001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1404004 |
TA1# PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71420-1402001 |
TA12..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1404104 |
TA1# PF.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71420-1402101 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1404009 |
TA1# PF.GOLD,YELLOW |
1 | ||
| 71420-1402006 |
TA12..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1404101 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1404008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71420-1402104 |
TA1#..DLX FB.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71420-1402206 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1404106 |
TA1# PF.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1402106 |
TA1#..DLX FB.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71420-1429001 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1429005 |
TA1#..DLX FB.BEIGE,BEIGE |
1 | ||
| 71420-1402208 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71420-1402201 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71420-1429006 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71430S - BACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE) | ||||
| 71430-1404001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1402001 |
TA12..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1402009 |
TA12..DLX FB.GOLD,YELLOW |
1 | ||
| 71430-1402004 |
TA12..DLX FB.BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1402006 |
TA12..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1402101 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1404009 |
TA1# PF.GOLD,YELLOW |
1 | ||
| 71430-1404101 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1404104 |
TA1# PF.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71430-1404004 |
TA1# PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71430-1404008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71430-1404106 |
TA1# PF.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1425008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71430-1404006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1425001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1402106 |
TA1#..DLX FB.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1425006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1402206 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1402208 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71430-1402301 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1402306 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1402201 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1402308 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71430-1428005 |
TA1#..DLX FB.BEIGE,BEIGE |
1 | ||
| 71430-1428006 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71430-1428001 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71430-1402104 |
TA1#..DLX FB.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71440S - BACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE) | ||||
| 71440-1402001 |
TA12..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1402006 |
TA12..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1402004 |
TA12..DLX FB.BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1402009 |
TA12..DLX FB.GOLD,YELLOW |
1 | ||
| 71440-1404004 |
TA1# PF.BLUE,BLUE,TRIM8# |
1 | ||
| 71440-1404001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1404008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71440-1404009 |
TA1# PF.GOLD,YELLOW |
1 | ||
| 71440-1404006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1404104 |
TA1# PF.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71440-1402104 |
TA1#..DLX FB.BLUE M.,BLUE,TRIM8# |
1 | ||
| 71440-1402201 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1404101 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1402208 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71440-1402206 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1402106 |
TA1#..DLX FB.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1402101 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1425006 |
TA1# PF.BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1402308 |
TA1#..DLX FB.IVORY,IVORY,TRIM0# |
1 | ||
| 71440-1428005 |
TA1#..DLX FB.BEIGE,BEIGE |
1 | ||
| 71440-1425001 |
TA1# PF.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1428001 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1402301 |
TA1#..DLX FB.BLACK,BLACK,TRIM2# |
1 | ||
| 71440-1404106 |
TA1# PF.OLIVE- BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1402306 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71440-1425008 |
TA1# PF.IVORY,IVORY,TRIM0# |
1 | ||
| 71440-1428006 |
TA1#..DLX FB.BROWN,BROWN,TRIM4# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
TA1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
TA1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
TA1# |
1 | ||
| 71812 - CLIP (FOR FRONT SEAT CUSHION COVER) | ||||
| 90468-18071 |
TA1# |
1 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18056 |
TA1# SEAT BACK |
18 | ||
| 71812A - RING, HOG, SMALL (FOR FRONT SEAT) | ||||
| 90468-18056 |
TA1# SEAT BACK |
18 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-1401106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72510-12020 |
TA1# |
1 | ||
| 72510-1401201 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1401101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1402201 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1402301 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-12021 |
TA1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-1401106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72510-12020 |
TA1# |
1 | ||
| 72510-1401201 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1401101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1402201 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1402301 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-12021 |
TA1# |
1 | ||
| 72510 - ADJUSTER ASSY, RECLINING SEAT BACK, RH | ||||
| 72510-1401106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 72510-12020 |
TA1# |
1 | ||
| 72510-1401201 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1401101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1402201 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-1402301 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 72510-12021 |
TA1# |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72553-12010 |
TA1# LH. |
1 | ||
| 72519-12030 |
TA1# RH. |
1 | ||
| 72519 - KNOB, RECLINING SEAT BACK ADJUSTING ARM | ||||
| 72553-12010 |
TA1# LH. |
1 | ||
| 72519-12030 |
TA1# RH. |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-12020 |
TA1# |
1 | ||
| 72520-12021 |
TA1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-12020 |
TA1# |
1 | ||
| 72520-12021 |
TA1# |
1 | ||
| 72520 - ADJUSTER ASSY, RECLINING SEAT BACK, LH | ||||
| 72520-12020 |
TA1# |
1 | ||
| 72520-12021 |
TA1# |
1 | ||
| Common parts | ||||
| 53614-20040 | ||||
| 90105-10001 | ||||
| 90105-10043 | ||||
| 90206-13077 | ||||
| 93239-24010 | ||||
| 93315-15010 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
| 94524-00400 | ||||
| 94612-10800 | ||||
| Linked diagrams | ||||
| 7403 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
