TA12-HDF (1970)

Toyota Carina

Production Dec 1970 - Sep 1975
Engine 2T
Transmission 3FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)4D

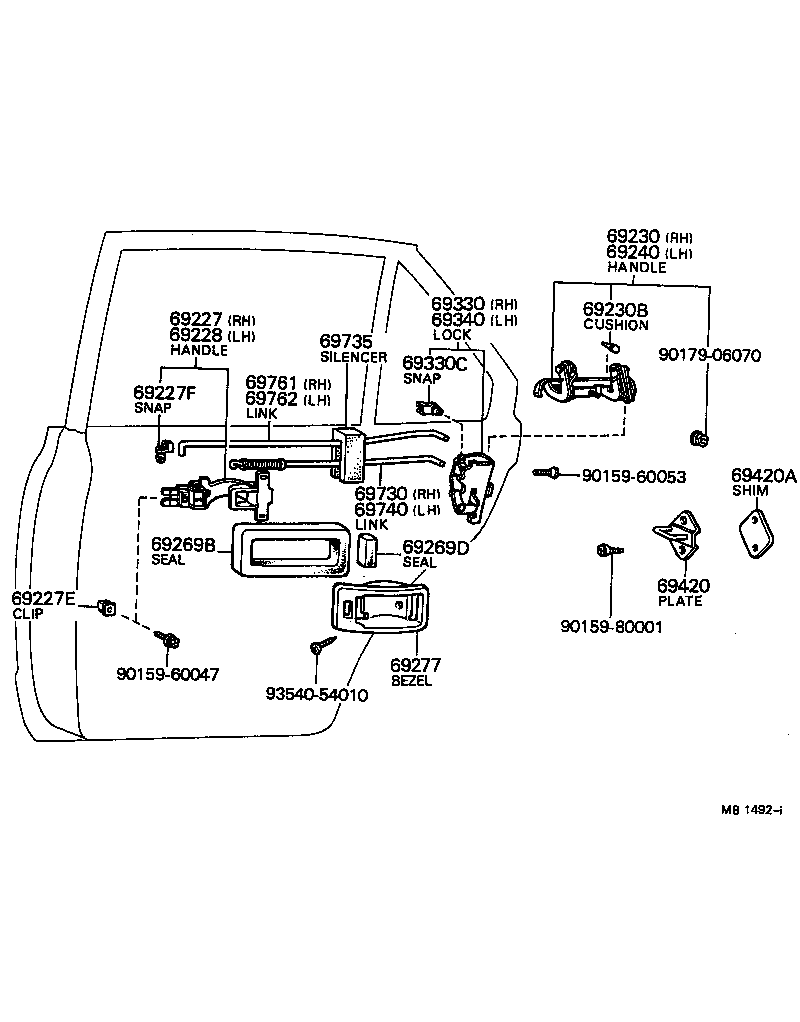

Click highlighted areas on diagram

diagram 69227 69227E 69227F 69228 69230 69230B 69240 69269B 69269D 69277 69330 69330C 69340 69420 69420A 69730 69735 69740 69761 69762 9015960047 9015960053 9015980001 9017906070 9354054010
Part # Description Qty Price
69227 - HANDLE, REAR DOOR INSIDE, RH
69207-20020

TA1#..4D

 1
69207-20021

TA1#..4D

 1
69027-20010

TA1#..4D

 1
69227E - CLIP(FOR REAR DOOR INSIDE HANDLE)
90189-06010

TA1#..4D

 6
69227F - SNAP(FOR REAR DOOR INSIDE HANDLE)
69273-10010

TA1#..4D

 2
69228 - HANDLE, REAR DOOR INSIDE, LH
69208-20011

TA1#..4D

 1
69208-20010

TA1#..4D

 1
69028-20010

TA1#..4D

 1
69230 - HANDLE ASSY, REAR DOOR OUTSIDE, RH
69230-19035

TA1#..4D

 1
69230B - CUSHION(FOR REAR DOOR OUTSIDE HANDLE)
90541-02006

TA1#..4D

 4
69240 - HANDLE ASSY, REAR DOOR OUTSIDE, LH
69240-19035

TA1#..4D

 1
69277 - BEZEL, REAR DOOR INSIDE HANDLE
69276-20011

TA1#..4D

 2
69276-20010

TA1#..4D

 2
69278-20010

TA1#..4D

 2
69330 - LOCK ASSY, REAR DOOR, RH
69330-14010

TA1#..4D

 1
69340 - LOCK ASSY, REAR DOOR, LH
69340-14010

TA1#..4D

 1
69420 - PLATE ASSY, REAR DOOR LOCK STRIKER
69410-14010

TA1#..4D

 2
69730 - LINK ASSY, REAR DOOR OPEN CONTROL, RH
69730-14010

TA1#..4D

 1
69735 - SILENCER, REAR DOOR LOCK LINK
69759-20010

TA1#..4D

 2
69759-20011

TA1#..4D

 2
69740 - LINK ASSY, REAR DOOR OPEN CONTROL, LH
69740-14010

TA1#..4D

 1
69761 - LINK, REAR DOOR LOCK CONTROL, NO.1 RH
69765-14010

TA1#..4D

 1
69762 - LINK, REAR DOOR LOCK CONTROL, NO.1 LH
69766-14010

TA1#..4D

 1
Common parts
90159-60047
90159-60053
90159-80001
90179-06070
93540-54010
