TA12-HDF (1970)
Toyota Carina
Production
Dec 1970
-
Sep 1975
Engine
2T
Transmission
3FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7308)3FC

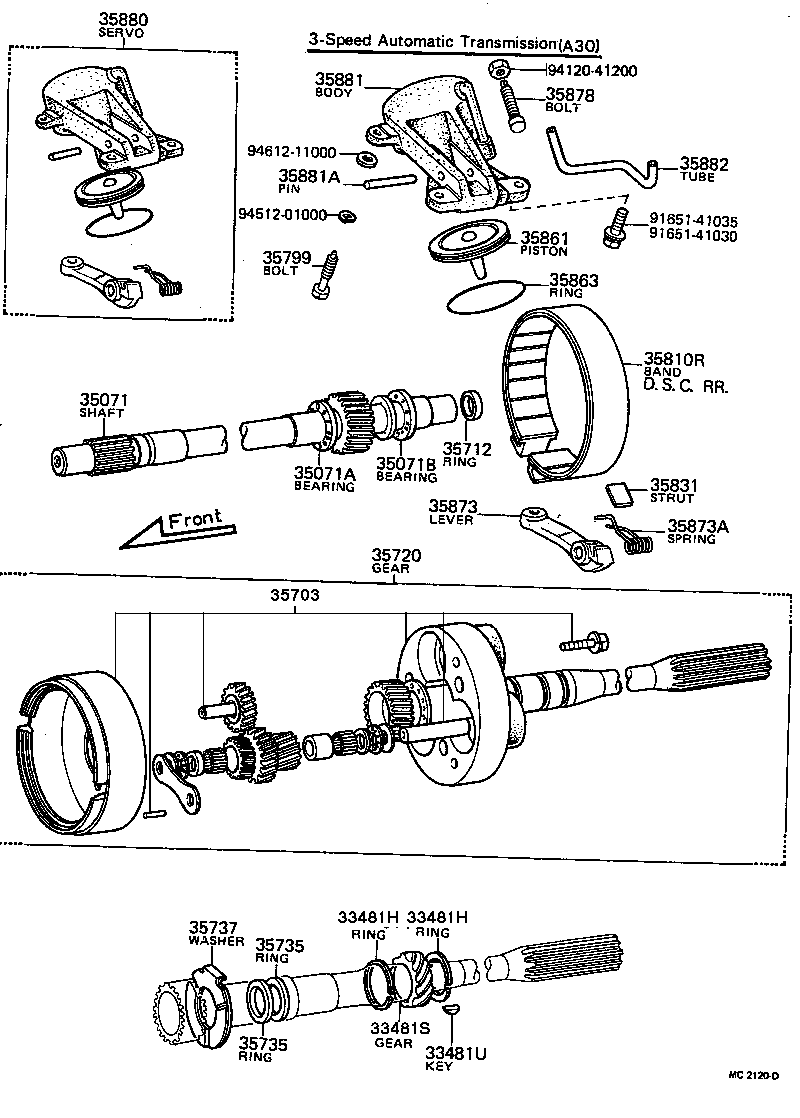

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33481H - RING, SHAFT SNAP (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
TA12,14..3FC |
2 | ||
| 33481H - RING, SHAFT SNAP (FOR ATM SPEEDMETER DRIVE GEAR) | ||||
| 90520-28009 |
TA12,14..3FC |
2 | ||
| 33481S - GEAR, SPEEDOMETER DRIVE (ATM) | ||||
| 33481-20020 |
TA12,14..3FC N=5 |
1 | ||
| 33481U - BALL (FOR SPEEDOMETER DRIVE GEAR) | ||||
| 90280-03005 |
TA12,14..3FC |
1 | ||
| 35071 - SHAFT SUB-ASSY, PLANETARY INTERMEDIATE | ||||
| 35071-30010 |
TA12..3FC |
1 | ||
| 35071A - BEARING, THRUST(FOR INTERMEDIATE SHAFT FRONT) | ||||
| 90374-20002 |
TA12..3FC TP 0403SC |
1 | ||
| 35071B - BEARING, THRUST(FOR INTERMEDIATE SHAFT REAR) | ||||
| 90374-20007 |
TA12..3FC TP 0403S |
1 | ||
| 35712 - RING, PLANETARY INTERMEDIATE SHAFT OIL SEAL | ||||
| 35712-30010 |
TA12..3FC |
1 | ||
| 35720 - GEAR ASSY, FRONT PLANETARY | ||||
| 35720-40013 |
TA12..3FC |
1 | ||
| 35735 - RING, PLANETARY OUTPUT SNAP | ||||
| 35735-30010 |
TA12..3FC |
2 | ||
| 35735 - RING, PLANETARY OUTPUT SNAP | ||||
| 35735-30010 |
TA12..3FC |
2 | ||
| 35737 - WASHER, PLANETARY CARRIER THRUST | ||||
| 35737-30010 |
TA12..3FC |
1 | ||
| 35799 - BOLT, CENTER SUPPORT, NO.2 | ||||
| 35799-30010 |
TA12..3FC |
1 | ||
| 35810R - BAND ASSY, TRANSMISSION BRAKE (FOR REAR) | ||||
| 35808-40010 |
TA12..3FC |
2 | ||
| 35831 - STRUT, BRAKE BAND APPLY | ||||
| 35831-30030 |
TA12..3FC |
1 | ||
| 35861 - PISTON, REVERSE | ||||
| 35861-30012 |
TA12..3FC |
1 | ||
| 35863 - RING, REVERSE PISTON OIL SEAL, OUTER | ||||
| 90301-59124 |
TA12..3FC |
1 | ||
| 35873 - LEVER, REVERSE BRAKE BAND APPLY | ||||
| 35873-40011 |
TA12..3FC |
1 | ||
| 35873A - SPRING, TORSION (FOR BRAKE BAND) | ||||
| 90508-38160 |
TA12..3FC |
1 | ||
| 35878 - BOLT, REAR BRAKE BAND ANCHOR | ||||
| 35878-30012 |
TA12..3FC |
1 | ||
| 35880 - SERVO ASSY, REAR | ||||
| 35880-30011 |
TA12..3FC |
1 | ||
| 35881 - BODY, REAR SERVO | ||||
| 35881-40012 |
TA12..3FC |
1 | ||
| 35881A - PIN, STRAIGHT (FOR REAR SERVO BODY) | ||||
| 90250-10138 |
TA12..3FC |
1 | ||
| 35882 - TUBE, REAR SERVO APPLY | ||||
| 35882-30010 |
TA12..3FC |
1 | ||
| Common parts | ||||
| 91651-41030 | ||||
| 91651-41035 | ||||
| 94120-41200 | ||||
| 94512-01000 | ||||
| 94612-11000 | ||||
