TA12-HD (1970)
Toyota Carina

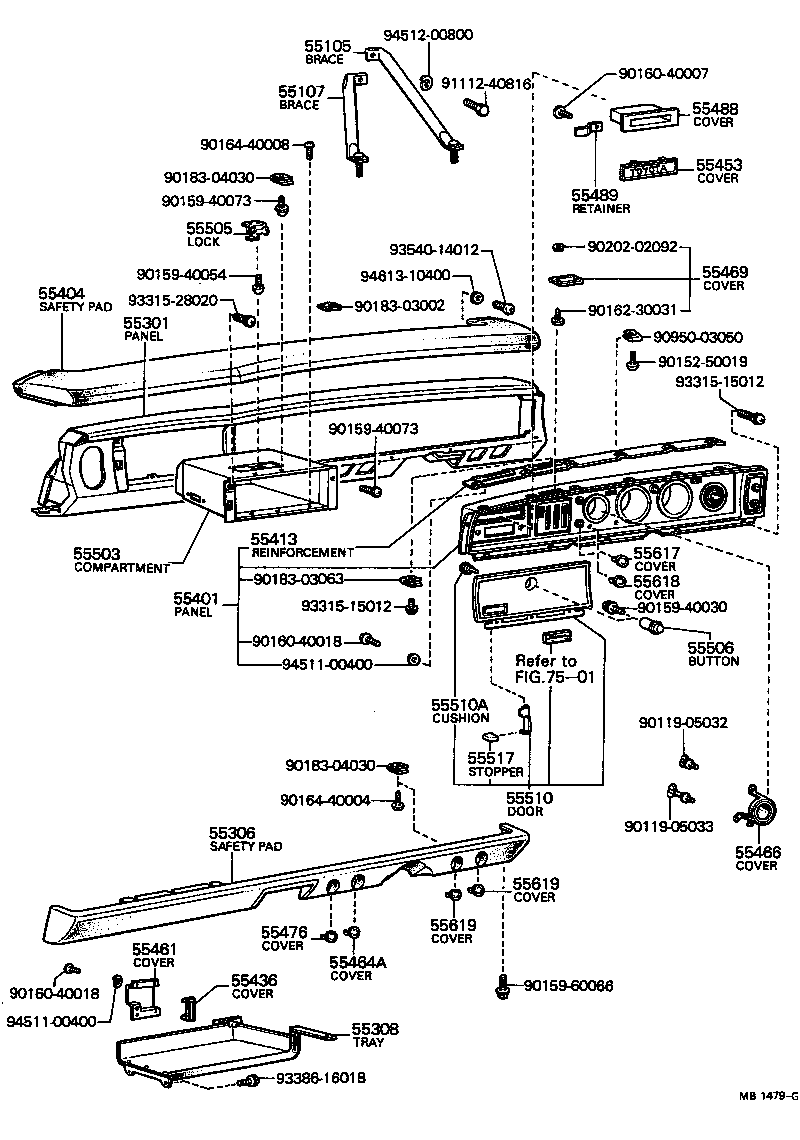

(7012-7207)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55105 - BRACE SUB-ASSY, PEDAL BRACKET TO DASH, RH | ||||
| 55157-14010 |
TA1#..RHD |
1 | ||
| 55107 - BRACE SUB-ASSY, PEDAL BRACKET TO DASH, LH | ||||
| 55158-14010 |
TA1#..RHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-14010 |
TA1#..RHD |
1 | ||
| 55301-14011 |
TA12..RHD |
1 | ||
| 55306 - GARNISH OR SAFETY PAD, LOWER, CENTER | ||||
| 55307-1401101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55307-1401106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55307-14010 |
TA1#..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55308-1401001 |
TA12..RHD..DLX BLACK,BLACK,TRIM2# |
1 | ||
| 55308-1401006 |
TA12..RHD..DLX BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55401-14908 |
TA12..RHD..DLX |
1 | ||
| 55410-1408101 |
TA12..RHD..DLX BLACK,BLACK,TRIM2# |
1 | ||
| 55410-1407101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55410-1407106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-14010 |
TA1#..RHD |
1 | ||
| 55404-1401106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55404-1401101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55413 - REINFORCEMENT, CLUSTER HOUSING | ||||
| 55041-14010 |
TA1#..RHD |
1 | ||
| 55436 - COVER, HEATER CONTROL, NO.2 | ||||
| 55424-14020 |
TA1# FOR BOOST VENTILATOR |
1 | ||
| 55424-20020 |
TA1# FOR BOOST VENTILATOR |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-14020 |
TA1# |
1 | ||
| 55463-14010 |
TA1# |
1 | ||
| 55463-14021 |
TA1# |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55423-20040 |
TA1#..RHD |
1 | ||
| 55423-14020 |
TA1# |
1 | ||
| 55464A - COVER, CHOKE KNOB HOLE | ||||
| 55464-14010 |
TA1#..RHD |
1 | ||
| 55466 - COVER, CLOCK HOLE | ||||
| 55467-14010 |
TA1# |
1 | ||
| 55469 - COVER, HEATER CONTROL LAMP HOLE | ||||
| 55469-14010 |
TA1# |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55462-20050 |
TA1# |
1 | ||
| 55462-14010 |
TA1# |
1 | ||
| 55489 - RETAINER, STEREO OPENING COVER, NO.1 | ||||
| 55475-14011 |
TA1# |
2 | ||
| 55475-14010 |
TA1# |
2 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55531-14011 |
TA12..RHD..DLX |
1 | ||
| 55531-14010 |
TA12..RHD..DLX |
1 | ||
| 55505 - LOCK SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55505-14010 |
TA1# |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55510-1490106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55510-14020 |
TA12..RHD..DLX |
1 | ||
| 55510-1490101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04073 |
TA1# |
2 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
TA1# |
1 | ||
| 55517-14020 |
TA1# |
1 | ||
| 55617 - COVER, DEFOGGER KNOB HOLE | ||||
| 55617-14010 |
TA1# |
1 | ||
| 55618 - COVER, AUTO CLOCK KNOB HOLE | ||||
| 55618-14010 |
TA1# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55619-14010 |
TA1# |
2 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55619-14010 |
TA1# |
2 | ||
| Common parts | ||||
| 90119-05032 | ||||
| 90119-05033 | ||||
| 90152-50019 | ||||
| 90159-40030 | ||||
| 90159-40054 | ||||
| 90159-40073 | ||||
| 90159-60066 | ||||
| 90160-40007 | ||||
| 90160-40018 | ||||
| 90162-30031 | ||||
| 90164-40004 | ||||
| 90164-40008 | ||||
| 90183-03002 | ||||
| 90183-03063 | ||||
| 90183-04030 | ||||
| 90202-02092 | ||||
| 90950-03050 | ||||
| 91112-40816 | ||||
| 93315-15012 | ||||
| 93315-28020 | ||||
| 93386-16018 | ||||
| 93540-14012 | ||||
| 94511-00400 | ||||
| 94512-00800 | ||||
| 94613-10400 | ||||
| Linked diagrams | ||||
| 7501 | ||||

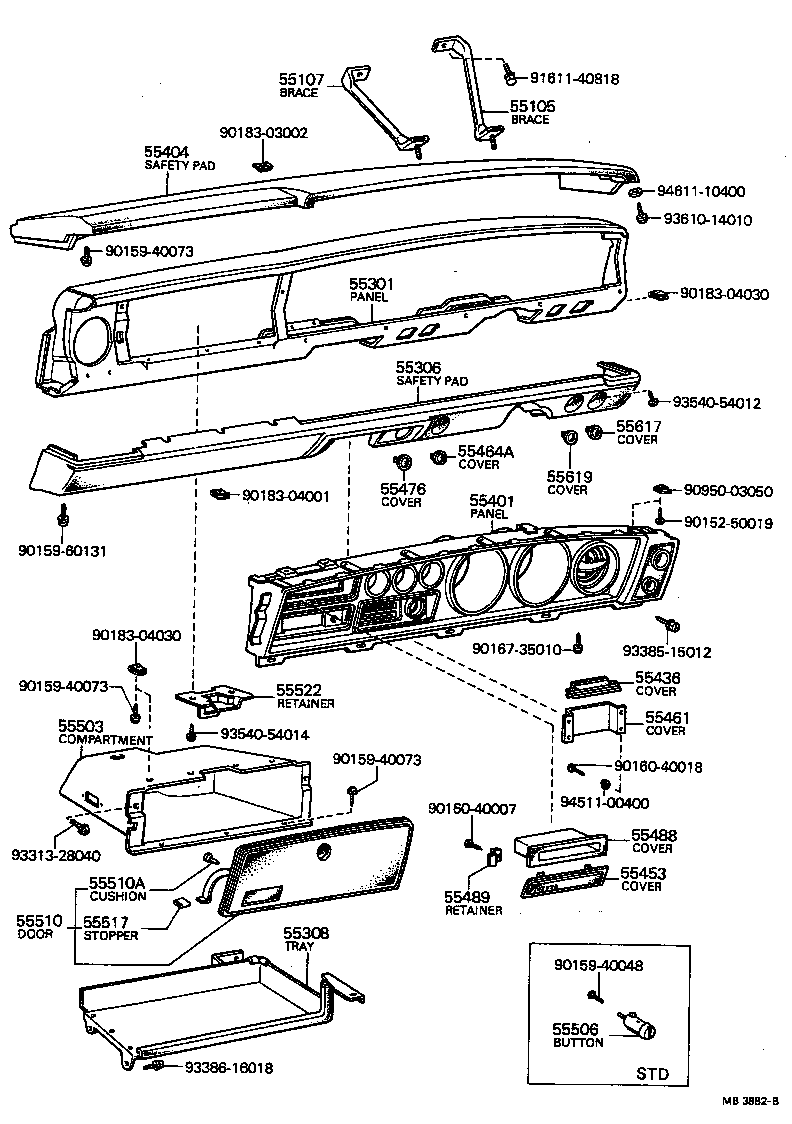

(7208-7509)RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55105 - BRACE SUB-ASSY, PEDAL BRACKET TO DASH, RH | ||||
| 55157-14010 |
TA1#..RHD |
1 | ||
| 55107 - BRACE SUB-ASSY, PEDAL BRACKET TO DASH, LH | ||||
| 55158-14010 |
TA1#..RHD |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-14010 |
TA1#..RHD |
1 | ||
| 55301-14011 |
TA12..RHD |
1 | ||
| 55306 - GARNISH OR SAFETY PAD, LOWER, CENTER | ||||
| 55307-1401101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55307-1401106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55307-14010 |
TA1#..RHD |
1 | ||
| 55308 - TRAY SUB-ASSY, INSTRUMENT PANEL UNDER | ||||
| 55308-1401001 |
TA12..RHD..DLX BLACK,BLACK,TRIM2# |
1 | ||
| 55308-1401006 |
TA12..RHD..DLX BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55401 - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55401-14908 |
TA12..RHD..DLX |
1 | ||
| 55410-1408101 |
TA12..RHD..DLX BLACK,BLACK,TRIM2# |
1 | ||
| 55410-1407101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55410-1407106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55404 - SAFETY PAD SUB-ASSY, INSTRUMENT PANEL, UPPER | ||||
| 55404-14010 |
TA1#..RHD |
1 | ||
| 55404-1401106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55404-1401101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55436 - COVER, HEATER CONTROL, NO.2 | ||||
| 55424-14020 |
TA1# FOR BOOST VENTILATOR |
1 | ||
| 55424-20020 |
TA1# FOR BOOST VENTILATOR |
1 | ||
| 55453 - COVER, RADIO TUNER OPENING | ||||
| 55463-14020 |
TA1# |
1 | ||
| 55463-14010 |
TA1# |
1 | ||
| 55463-14021 |
TA1# |
1 | ||
| 55461 - COVER, HEATER CONTROL HOLE | ||||
| 55423-20040 |
TA1#..RHD |
1 | ||
| 55423-14020 |
TA1# |
1 | ||
| 55464A - COVER, CHOKE KNOB HOLE | ||||
| 55464-14010 |
TA1#..RHD |
1 | ||
| 55488 - COVER, STEREO OPENING | ||||
| 55462-20050 |
TA1# |
1 | ||
| 55462-14010 |
TA1# |
1 | ||
| 55489 - RETAINER, STEREO OPENING COVER, NO.1 | ||||
| 55475-14011 |
TA1# |
2 | ||
| 55475-14010 |
TA1# |
2 | ||
| 55503 - COMPARTMENT SUB-ASSY, GLOVE | ||||
| 55531-14011 |
TA12..RHD..DLX |
1 | ||
| 55531-14010 |
TA12..RHD..DLX |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55510-1490106 |
TA12..RHD BROWN,BROWN,TRIM0#,4# |
1 | ||
| 55510-14020 |
TA12..RHD..DLX |
1 | ||
| 55510-1490101 |
TA12..RHD BLACK,BLACK,TRIM2# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 90541-04073 |
TA1# |
2 | ||
| 55517 - STOPPER, GLOVE COMPARTMENT DOOR ARM | ||||
| 55517-14010 |
TA1# |
1 | ||
| 55517-14020 |
TA1# |
1 | ||
| 55522 - RETAINER, GLOVE COMPARTMENT MALE | ||||
| 55521-14010 |
TA1# |
1 | ||
| 55617 - COVER, DEFOGGER KNOB HOLE | ||||
| 55617-14010 |
TA1# |
1 | ||
| 55619 - COVER, SWITCH HOLE | ||||
| 55619-14010 |
TA1# |
2 | ||
| Common parts | ||||
| 90152-50019 | ||||
| 90159-40048 | ||||
| 90159-40073 | ||||
| 90159-60131 | ||||
| 90160-40007 | ||||
| 90160-40018 | ||||
| 90167-35010 | ||||
| 90183-03002 | ||||
| 90183-04001 | ||||
| 90183-04030 | ||||
| 90950-03050 | ||||
| 91611-40818 | ||||
| 93313-28040 | ||||
| 93385-15012 | ||||
| 93386-16018 | ||||
| 93540-54012 | ||||
| 93540-54014 | ||||
| 93610-14010 | ||||
| 94511-00400 | ||||
| 94611-10400 | ||||
