TA10L-KF (1970)

Toyota Carina

Production Dec 1970 - Jul 1972
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7509)

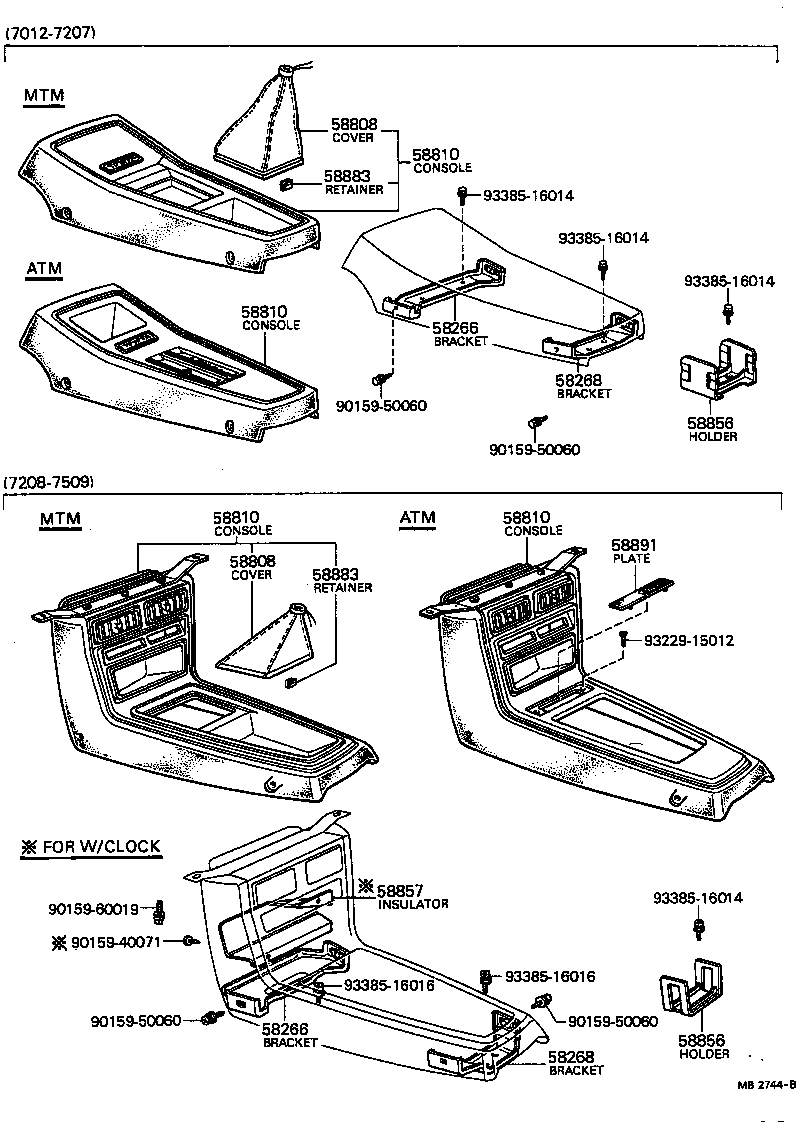

Click highlighted areas on diagram

diagram 58266 58266 58268 58268 58808 58808 58810 58810 58810 58810 58856 58856 58857 58883 58883 58891 9015940071 9015950060 9015950060 9015950060 9015950060 9015960019 9322915012 9338516014 9338516014 9338516014 9338516014 9338516016 9338516016
Part # Description Qty Price
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58266-14010

TA1#

 1
58266 - BRACKET, CONSOLE BOX SUPPORT, FRONT
58266-14010

TA1#

 1
58268 - BRACKET, CONSOLE BOX SUPPORT, REAR
58267-14010

TA1#

 1
58268 - BRACKET, CONSOLE BOX SUPPORT, REAR
58267-14010

TA1#

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-14010

TA1#..4F

 1
58808 - COVER SUB-ASSY, SHIFTING HOLE
58808-14010

TA1#..4F

 1
58810 - CONSOLE ASSY
58810-14010

TA1#..4F

 1
58810 - CONSOLE ASSY
58810-14010

TA1#..4F

 1
58810 - CONSOLE ASSY
58810-14010

TA1#..4F

 1
58810 - CONSOLE ASSY
58810-14010

TA1#..4F

 1
58856 - HOLDER, SEAT BELT BUCKLE
58853-14010

TA1#

 1
58856 - HOLDER, SEAT BELT BUCKLE
58853-14010

TA1#

 1
58883 - RETAINER, SHIFTING HOLE COVER
58883-22010

TA1#..MTM

 4
58883 - RETAINER, SHIFTING HOLE COVER
58883-22010

TA1#..MTM

 4
Common parts
90159-40071
90159-50060
90159-60019
93229-15012
93385-16014
93385-16016
