TA10L-KDF (1972)

Toyota Carina

Production Aug 1972 - Sep 1975
Engine T
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7012-7707)

Click highlighted areas on diagram

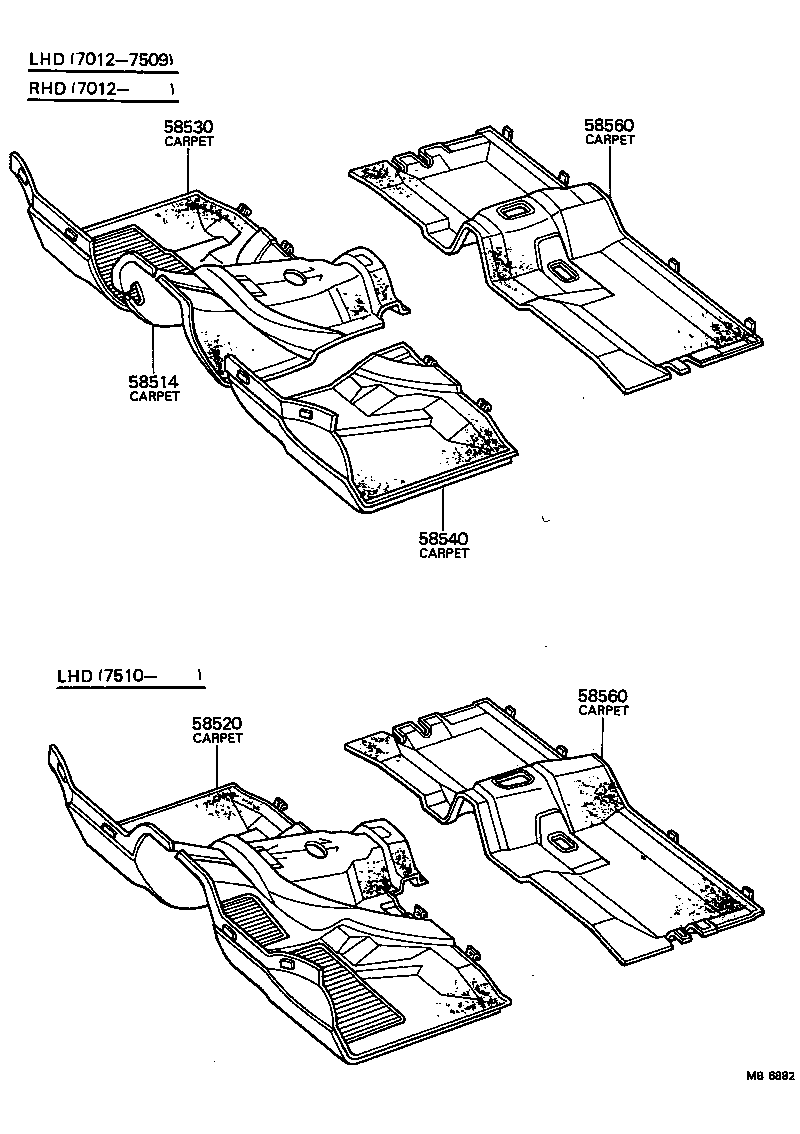

diagram 58514 58520 58530 58540 58560 58560
Part # Description Qty Price
58514 - CARPET, FLOOR, FRONT CENTER
58514-1402006

TA1#..4F

BROWN,FOR CONSOLE,BROWN,TRIM0#,4#

 1
58514-1402001

TA1#..4F

BLACK,FOR CONSOLE,BLACK,TRIM2#

 1
58514-1402001

TA1#..LHD..MTM

BLACK,BLACK,TRIM2#

 1
58514-1402007

TA1#..4F

OLIVE,FOR CONSOLE,GREEN,TRIM4#

 1
58514-1402004

TA1#..4F

BLUE, FOR CONSOLE,BLUE,TRIM8#

 1
58514-1414014

TA1#..LHD..MTM

BLUE,BLUE,TRIM8#

 1
58514-1414016

TA1#..LHD..MTM

OLIVE- BROWN,BROWN,TRIM4#

 1
58514-1417026

TA1#..LHD..MTM

BROWN,BROWN,TRIM0#,4#

 1
58514-1417026

TA1#..LHD

BROWN,BROWN,TRIM0#,4#

 1
58514-1417001

TA1#..LHD

BLACK,BLACK,TRIM2#

 1
58514-1417001

TA1#..LHD..MTM

BLACK,BLACK,TRIM2#

 1
58530 - CARPET ASSY, FLOOR, FRONT RH
58530-1402001

TA1#..LHD

BLACK,BLACK,TRIM2#

 1
58530-1402004

TA1#..LHD

BLUE,BLUE,TRIM8#

 1
58530-1402006

TA1#..LHD

BROWN,BROWN,TRIM0#,4#

 1
58530-1402007

TA1#..LHD

OLIVE,GREEN,TRIM4#

 1
58530-1407016

TA1#..LHD

OLIVE- BROWN,BROWN,TRIM4#

 1
58530-1402101

TA1#..LHD

BLACK,BLACK,TRIM2#

 1
58530-1402126

TA1#..LHD

BROWN,BROWN,TRIM0#,4#

 1
58530-1407014

TA1#..LHD

BLUE,BLUE,TRIM8#

 1
58540 - CARPET ASSY, FLOOR, FRONT LH
58540-1402006

TA1#..LHD

BROWN,BROWN,TRIM0#,4#

 1
58540-1402004

TA1#..LHD

BLUE,BLUE,TRIM8#

 1
58540-1402007

TA1#..LHD

OLIVE,GREEN,TRIM4#

 1
58540-1407014

TA1#..LHD

BLUE,BLUE,TRIM8#

 1
58540-1402101

TA1#..LHD

BLACK,BLACK,TRIM2#

 1
58540-1402001

TA1#..LHD

BLACK,BLACK,TRIM2#

 1
58540-1407016

TA1#..LHD

OLIVE- BROWN,BROWN,TRIM4#

 1
58540-1402126

TA1#..LHD

BROWN,BROWN,TRIM0#,4#

 1
58560 - CARPET ASSY, FLOOR, REAR
58560-1402001

TA1#

BLACK,BLACK,TRIM2#

 1
58560-1401006

TA1#

BROWN, FOR BELT.,BROWN,TRIM0#,4#

 1
58560-1402006

TA1#

BROWN,BROWN,TRIM0#,4#

 1
58560-1402007

TA1#

OLIVE,GREEN,TRIM4#

 1
58560-1401001

TA1#

BLACK, FOR BELT.,BLACK,TRIM2#

 1
58560-1401007

TA1#

OLIVE, FOR BELT.,GREEN,TRIM4#

 1
58560-1402004

TA1#

BLUE,BLUE,TRIM8#

 1
58560-1410014

TA1#..LHD

BLUE, FOR BELT.,BLUE,TRIM8#

 1
58560-1411014

TA1#..LHD

BLUE,BLUE,TRIM8#

 1
58560-1410016

TA1#..LHD

OLIVE- BROWN, FOR BELT.,BROWN,TRIM4#

 1
58560-1401004

TA1#

BLUE, FOR BELT.,BLUE,TRIM8#

 1
58560-1401126

TA1#

BROWN, FOR BELT.,BROWN,TRIM0#,4#

 1
58560-1401101

TA1#

BLACK, FOR BELT.,BLACK,TRIM2#

 1
58560-1411016

TA1#..LHD

OLIVE- BROWN,BROWN,TRIM4#

 1
58560-1402126

TA1#

BROWN,BROWN,TRIM0#,4#

 1
58560-1402101

TA1#

BLACK,BLACK,TRIM2#

 1
58560 - CARPET ASSY, FLOOR, REAR
58560-1402001

TA1#

BLACK,BLACK,TRIM2#

 1
58560-1401006

TA1#

BROWN, FOR BELT.,BROWN,TRIM0#,4#

 1
58560-1402006

TA1#

BROWN,BROWN,TRIM0#,4#

 1
58560-1402007

TA1#

OLIVE,GREEN,TRIM4#

 1
58560-1401001

TA1#

BLACK, FOR BELT.,BLACK,TRIM2#

 1
58560-1401007

TA1#

OLIVE, FOR BELT.,GREEN,TRIM4#

 1
58560-1402004

TA1#

BLUE,BLUE,TRIM8#

 1
58560-1410014

TA1#..LHD

BLUE, FOR BELT.,BLUE,TRIM8#

 1
58560-1411014

TA1#..LHD

BLUE,BLUE,TRIM8#

 1
58560-1410016

TA1#..LHD

OLIVE- BROWN, FOR BELT.,BROWN,TRIM4#

 1
58560-1401004

TA1#

BLUE, FOR BELT.,BLUE,TRIM8#

 1
58560-1401126

TA1#

BROWN, FOR BELT.,BROWN,TRIM0#,4#

 1
58560-1401101

TA1#

BLACK, FOR BELT.,BLACK,TRIM2#

 1
58560-1411016

TA1#..LHD

OLIVE- BROWN,BROWN,TRIM4#

 1
58560-1402126

TA1#

BROWN,BROWN,TRIM0#,4#

 1
58560-1402101

TA1#

BLACK,BLACK,TRIM2#

 1
