TA10-KF (1970)
Toyota Carina
Production
Dec 1970
-
Jul 1972
Engine
T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7509)

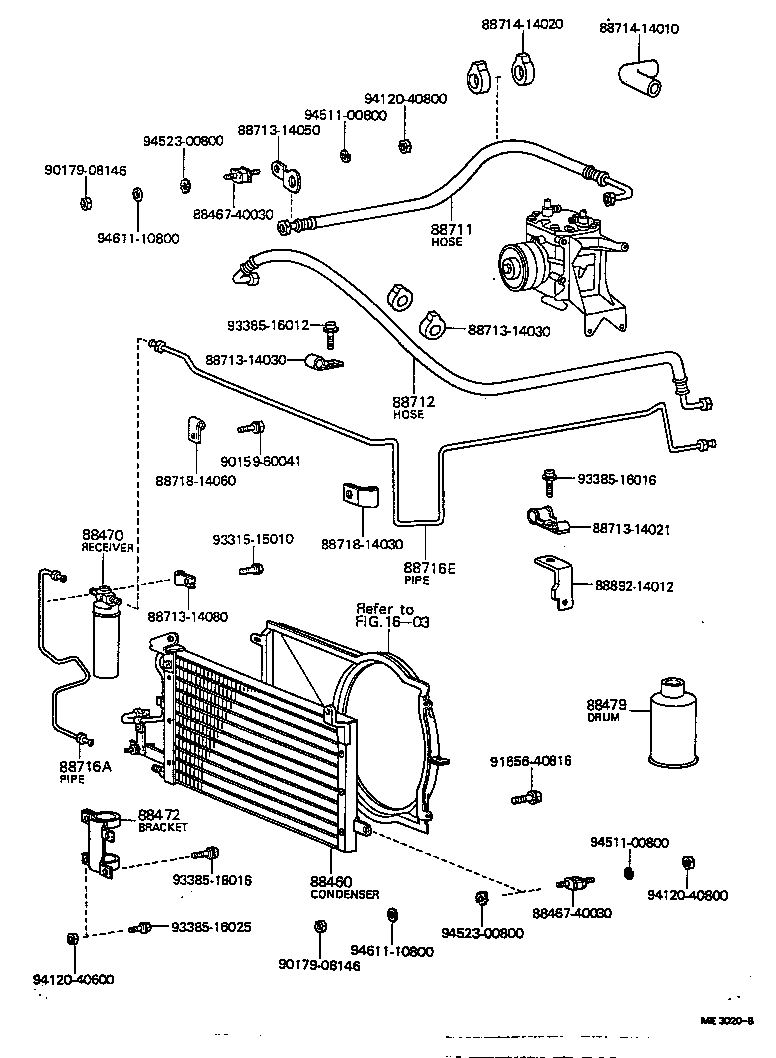

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-14010 |
TA1# |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-10010 |
TA1# |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-14010 |
TA1#..RHD |
1 | ||
| 88472-14011 |
TA1#..RHD |
1 | ||
| 88892-14010 |
TA1#..RHD |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 88434-30010 |
TA1# |
3 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-14010 |
TA1# |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-14010 |
TA1#..RHD |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-14010 |
TA1#..RHD |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-14020 |
TA1#..RHD |
1 | ||
| Common parts | ||||
| 88467-40030 | ||||
| 88713-14021 | ||||
| 88713-14030 | ||||
| 88713-14050 | ||||
| 88713-14080 | ||||
| 88714-14010 | ||||
| 88714-14020 | ||||
| 88718-14030 | ||||
| 88718-14060 | ||||
| 88892-14012 | ||||
| 90159-60041 | ||||
| 90179-08146 | ||||
| 91656-40816 | ||||
| 93315-15010 | ||||
| 93385-16012 | ||||
| 93385-16016 | ||||
| 93385-16025 | ||||
| 93385-18016 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
| 94511-00800 | ||||
| 94523-00800 | ||||
| 94611-10800 | ||||
| Linked diagrams | ||||
| 1603 | ||||
