TA10-KF (1970)
Toyota Carina
Production
Dec 1970
-
Jul 1972
Engine
T
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7012-7312)

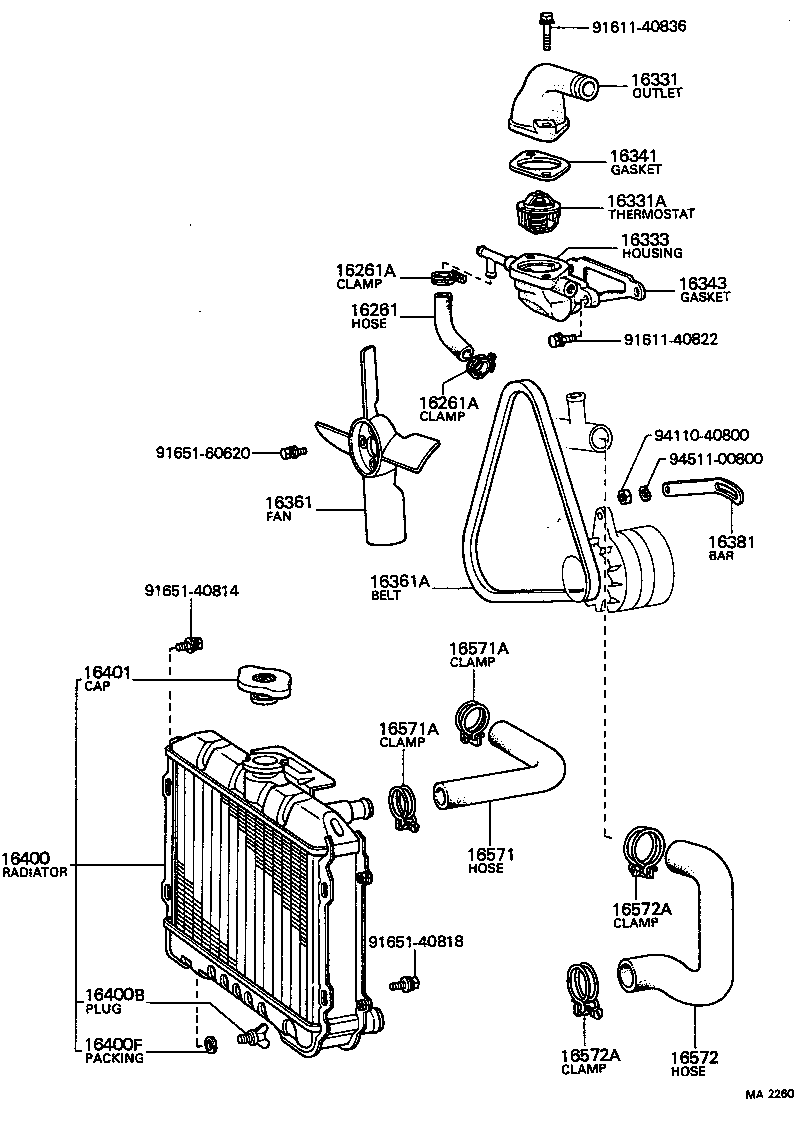

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16261 - HOSE, WATER BY-PASS | ||||
| 16261-25010 |
T,2T#..TA1# |
1 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-22004 |
T,2T..TA1# |
2 | ||
| 16261A - CLAMP OR CLIP, HOSE(FOR WATER BY-PASS HOSE) | ||||
| 90460-22004 |
T,2T..TA1# |
2 | ||
| 16331 - OUTLET, WATER | ||||
| 16331-31010 |
T,2T#..TA1# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03016 |
T,2T..TA1# WAX 82-95 FUJI-THOMSON |
1 | ||
| 90916-03021 |
T,2T..TA1# WAX 82-95 FUJI-THOMSON |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16303-25010 |
T,2T#..TA1# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-49010 |
T,2T#..TA1# |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-22010 |
T,2T#..TA1# |
1 | ||
| 16361 - FAN | ||||
| 16361-31030 |
T,2T#..TA1# 5 BLADES |
1 | ||
| 16361-31020 |
T,2T..TA1#..4F 4 BLADES |
1 | ||
| 16361A - BELT, V(FOR FAN & ALTERNATOR) | ||||
| 99521-10860 |
T,2T..TA10,12 L=860 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-25010 |
T,2T#..TA1# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-25010 |
T,2T#..TA1#..MTM |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90099-18502 |
T,2T..TA1# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 90099-06027 |
T,2T..TA1# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-50010 |
T,2T#..TA1# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 90916-01101 |
T,2T#..TA1# |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
T,2T..TA1# ID=43 |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90460-43005 |
T,2T..TA1# ID=43 |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16571-25010 |
T,2T#..TA1# |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
T,2T..TA1# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
T,2T#..TA1# RADIATOR SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 90460-50016 |
T,2T..TA1# WATER PUMP SIDE |
1 | ||
| 90460-47036 |
T,2T#..TA1# RADIATOR SIDE |
1 | ||
| Common parts | ||||
| 91611-40822 | ||||
| 91611-40836 | ||||
| 91651-40814 | ||||
| 91651-40818 | ||||
| 91651-60620 | ||||
| 94110-40800 | ||||
| 94511-00800 | ||||
