CA60R-AEMDSW (1982)
Toyota Carina
Production
Apr 1982
-
Sep 1983
Engine
1C
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8204- )CA60..RHD

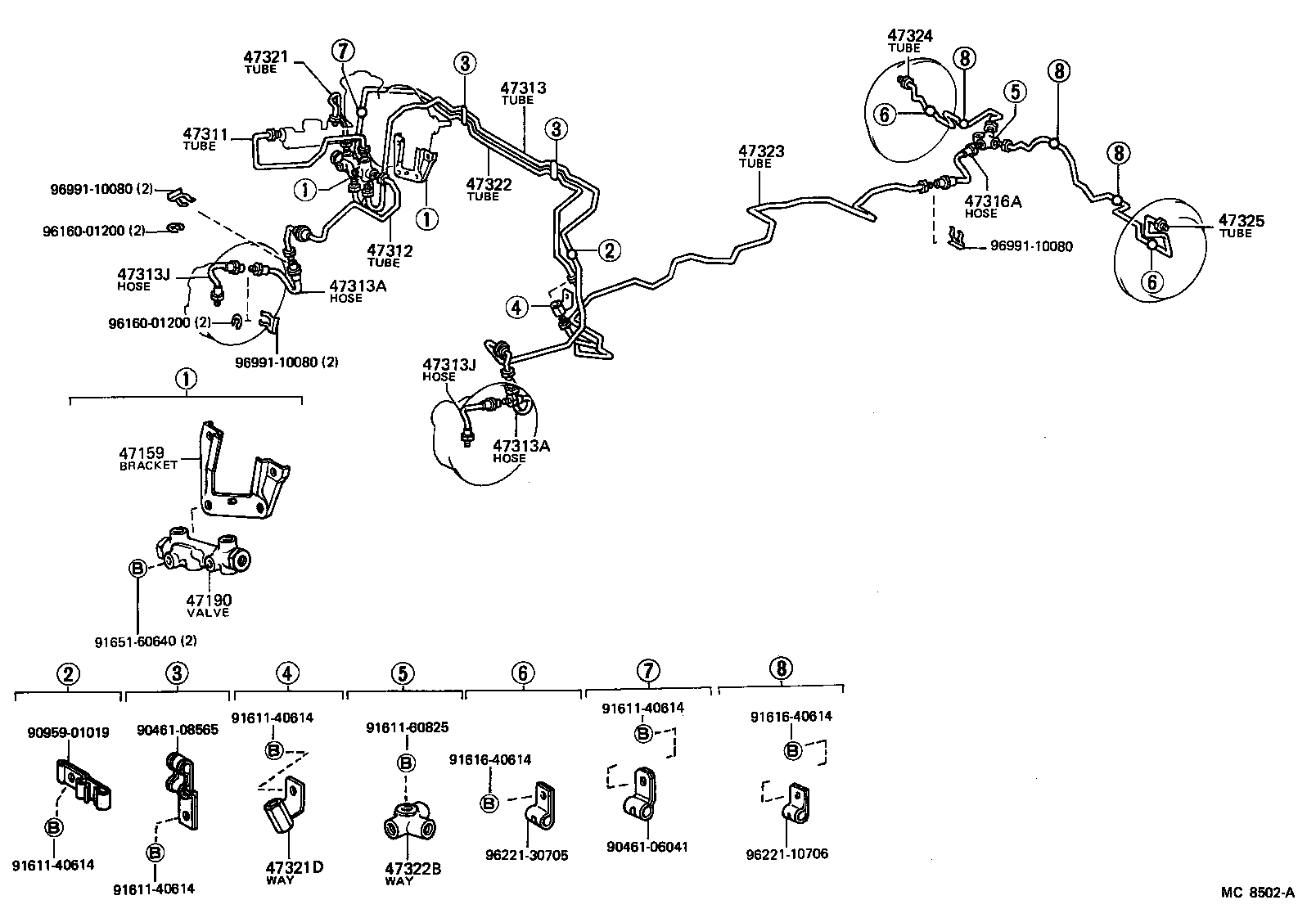

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47159 - BRACKET, PROPORTIONING VALVE | ||||
| 47159-14020 |
CA60,TA6#..RHD |
1 | ||
| 47190 - VALVE ASSY, PROPORTIONING & BY-PASS | ||||
| 47190-22030 |
CA60,TA6#..RHD..EUG |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-14210 |
CA60,TA6#..RHD |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-14110 |
CA60,TA6#..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02426 |
CA60,TA6# |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02426 |
CA60,TA6# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96960-32454 |
CA60,TA6# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 96960-32454 |
CA60,TA6# |
2 | ||
| 47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 96940-32855 |
CA60,TA6# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-14100 |
CA60..RHD |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90412-10056 |
CA60..RHD |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47329-14010 |
CA60..RHD |
1 | ||
| 47322B - WAY, NO.2(FOR REAR BRAKE TUBE) | ||||
| 90413-10098 |
CA60,TA6# |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47322-14180 |
CA60..RHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47323-14042 |
CA60,TA60;TA62..EUG |
1 | ||
| 47323-14042 |
CA60,TA6# |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47324-14052 |
CA60,TA6# |
1 | ||
| 47324-14052 |
CA60,TA60;TA62..EUG |
1 | ||
| Common parts | ||||
| 90461-06041 | ||||
| 90461-08565 | ||||
| 90959-01019 | ||||
| 91611-40614 | ||||
| 91611-60825 | ||||
| 91616-40614 | ||||
| 91651-60640 | ||||
| 96160-01200 | ||||
| 96221-10706 | ||||
| 96221-30705 | ||||
| 96991-10080 | ||||
