CA60LG-AWMDSW (1982)

Toyota Carina

Production Apr 1982 - Sep 1983
Engine 1C
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8204- )1C

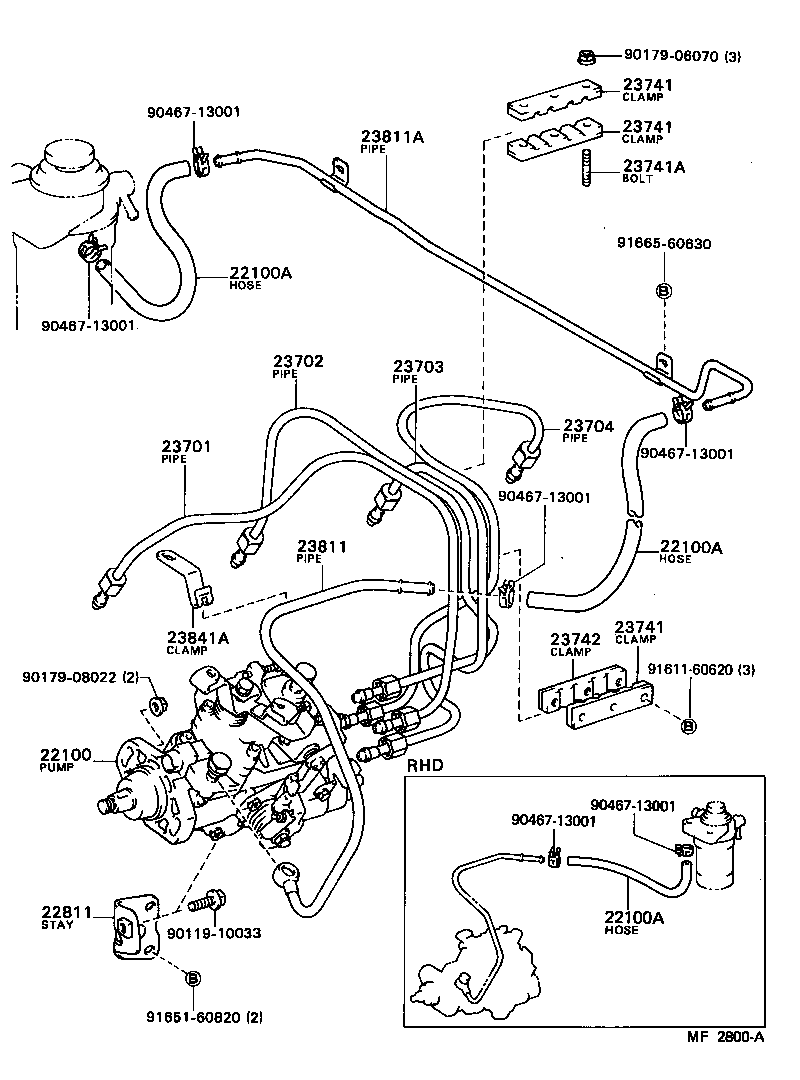

Click highlighted areas on diagram

diagram 22100 22100A 22100A 22100A 22811 23701 23702 23703 23704 23741 23741 23741 23741A 23742 23811 23811A 23841A 9011910033 9017906070 9017908022 9046713001 9046713001 9046713001 9046713001 9046713001 9046713001 9161160620 9165160820 9166560630
Part # Description Qty Price
22100 - PUMP ASSY, INJECTION OR SUPPLY
22100-64010

1C..CA60

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-08030

1C..CA60..LHD

*H,L=260,ID=7.6,FILTER SIDE

 1
95332-08040

1C..CA60..LHD

*H,L=320,ID=7.6,PUMP SIDE

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-08030

1C..CA60..LHD

*H,L=260,ID=7.6,FILTER SIDE

 1
95332-08040

1C..CA60..LHD

*H,L=320,ID=7.6,PUMP SIDE

 1
22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER)
95332-08030

1C..CA60..LHD

*H,L=260,ID=7.6,FILTER SIDE

 1
95332-08040

1C..CA60..LHD

*H,L=320,ID=7.6,PUMP SIDE

 1
22811 - STAY, INJECTION PUMP, NO.1
22811-64010

1C..CA60

 1
23701 - PIPE SUB-ASSY, INJECTION, NO.1
23701-64010

1C..CA60

 1
23702 - PIPE SUB-ASSY, INJECTION, NO.2
23702-64020

1C..CA60

 1
23703 - PIPE SUB-ASSY, INJECTION, NO.3
23703-64010

1C..CA60

 1
23704 - PIPE SUB-ASSY, INJECTION, NO.4
23704-64020

1C..CA60

 1
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64010

1C..CA60

 3
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64010

1C..CA60

 3
23741 - CLAMP, INJECTION PIPE, NO.1
23741-64010

1C..CA60

 3
23741A - BOLT, STUD(FOR INJECTION PIPE CLAMP)
92122-60622

1C..CA60

 3
23742 - CLAMP, INJECTION PIPE, NO.2
23742-64010

1C..CA60

 1
23811 - PIPE, FUEL(FOR FUEL FILTER TO INJECTION PUMP)
23811-64011

1C..CA60

 1
23811A - PIPE, FUEL, NO.2(FOR FUEL FILTER TO INJECTION PUMP)
23812-64011

1C..CA60..LHD

 1
23812-64010

1C..CA60..LHD

 1
23841A - CLAMP, FUEL PIPE, NO.1(FOR INJECTION PUMP)
90929-01018

1C..CA60

 1
Common parts
90119-10033
90179-06070
90179-08022
90467-13001
91611-60620
91651-60820
91665-60630
