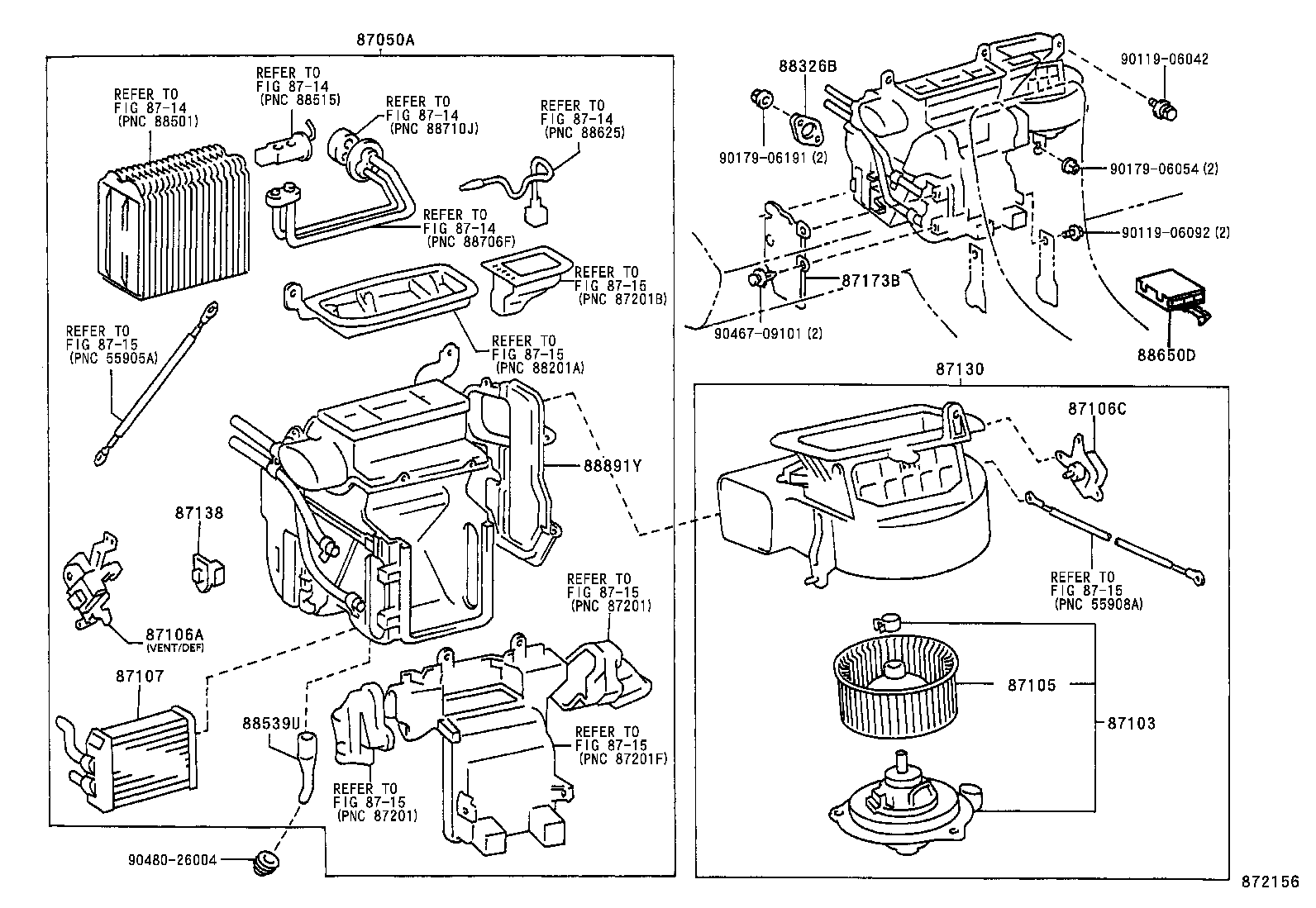

Toyota Camry (nap/sed/wg) SXV10 HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

Part #	Description	Period	Qty
87050A - RADIATOR ASSY, AIR CONDITIONER
87050-06020	SXV10..NAP	09/1992 - 09/1993	1
87050-06140	SXV10..NAP..WG	09/1993 - 07/1996	1
87103 - MOTOR SUB-ASSY, HEATER BLOWER, W/FAN
87103-06010	MCV10,SXV10..NAP	09/1992 - 07/1995	1
87103-06011	MCV10,SXV10..NAP	07/1995 - 07/1996	1
87105 - FAN SUB-ASSY, HEATER BLOWER
87105-06010	MCV10,SXV10..NAP	09/1992 - 07/1995	1
87106A - SERVO SUB-ASSY, DAMPER
87106-06010	MCV10,SXV10..NAP	09/1992 - 07/1996	1
87107 - UNIT SUB-ASSY, HEATER RADIATOR
87107-06010	MCV10,SXV10..NAP	09/1992 - 07/1996	1
87130 - BLOWER ASSY, HEATER, FRONT
87130-06010	SXV10..NAP..WG	09/1992 - 07/1996	1
87138 - RESISTOR, HEATER BLOWER
87138-06010	MCV10,SXV10..NAP..(DX,GL,LE,SE,XL)	09/1992 - 07/1996	1
87173B - PROTECTOR, HEATER
87173-06010	MCV10,SXV10..NAP	09/1992 - 07/1996	1
88326B - PLATE, COVER
88326-06010	MCV10,SXV10..NAP	08/1994 - 07/1996	1
88326-06010	MCV10,SXV10..NAP..(GL,XE,XL)	09/1992 - 08/1994	1
88539U - HOSE, COOLER DRAIN
88539-06010	MCV10,SXV10..NAP	09/1992 - 07/1996	1
88650D - AMPLIFIER ASSY
88650-06020	SXV10..NAP	09/1992 - 09/1993	1
88650-06040	SXV10..NAP	09/1993 - 07/1996	1
88891Y - COVER, COOLER,NO.1
88891-06010	MCV10,SXV10..NAP *ND USA	08/1994 - 07/1996	1
88891-06010	MCV10,SXV10..NAP	09/1992 - 08/1994	1
88891-33030	MCV10,SXV10..NAP *ND	08/1994 - 07/1996	1
Common parts
90119-06042
90119-06092
90179-06054
90179-06191
90467-09101
90480-26004
Linked diagrams
8714
8715

SXV10L-CWPNKV (1992)
