SXV10L-CWPNKV (1992)

Toyota Camry (Nap/Sed/Wg)

Production Sep 1992 - Jul 1996
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP

Click highlighted areas on diagram

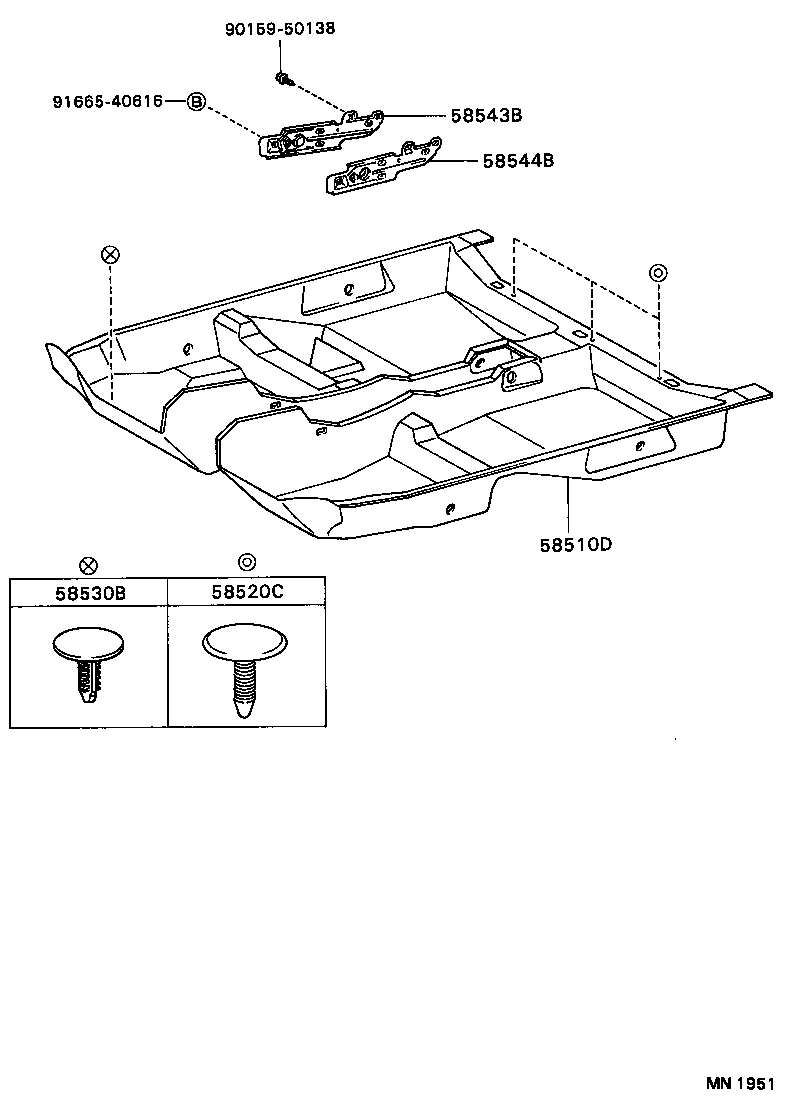

diagram 58510D 58520C 58530B 58543B 58544B 9015950138 9166540616
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-06030E0

SXV10..NAP

MEDIUM OAK,TRIM4#

 1
58510-06030J0

SXV10..NAP

DARK BLUE,TRIM8#

 1
58510-06030B0

SXV10..NAP

MEDIUM GRAY,TRIM1#

 1
58510-06120B0

SXV10..NAP..WG

MEDIUM GRAY,TRIM1#

 1
58510-06120E0

SXV10..NAP..WG

MEDIUM OAK,TRIM4#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-0601601

SXV10..NAP

BLACK,TRIM1#,4#,8#

 3
58530B - CLIP(FOR FRONT FLOOR CARPET)
90467-06089J0

SXV10..NAP

DARK BLUE,TRIM8#

 1
90467-06089B0

MCV10,SXV10..NAP

MEDIUM GRAY,TRIM1#

 1
90467-06089E1

MCV10,SXV10..NAP

MD.OAK,TRIM4#

 1
90467-06089E0

MCV10,SXV10..NAP

OAK,TRIM4#

 1
58543B - BRACKET, FLOOR CARPET, RH
58543-06010

MCV10,SXV10..NAP

 1
58544B - BRACKET, FLOOR CARPET, LH
58544-06010

MCV10,SXV10..NAP

 1
Common parts
90159-50138
91665-40616
