SXV10L-CWMNKV (1992)
Toyota Camry (Nap/Sed/Wg)
(9209-9607)NAP

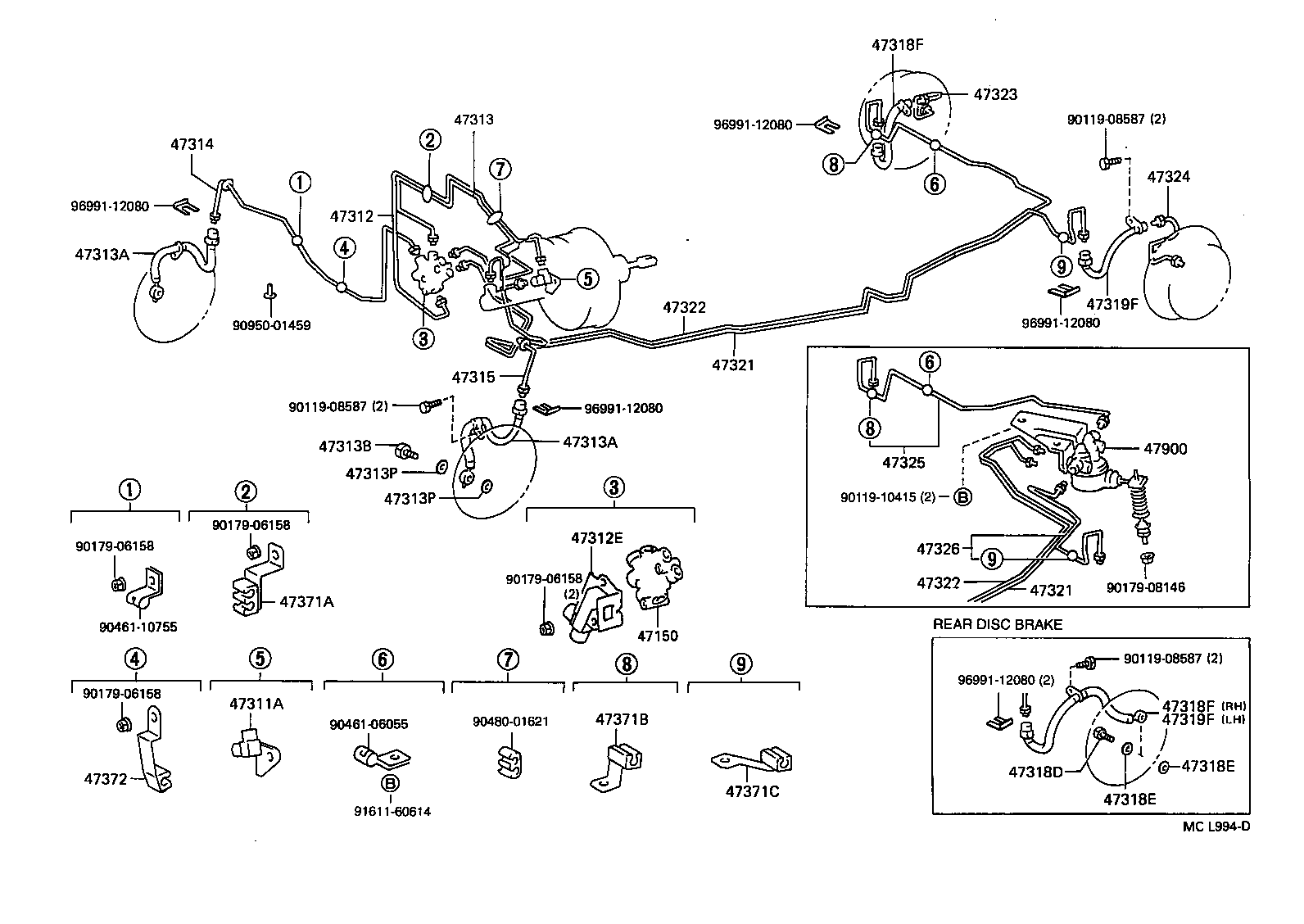

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47150 - VALVE ASSY, PROPORTIONING | ||||
| 90413-10205 |
SXV10..NAP..WG |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90080-41006 |
SXV10..NAP |
1 | ||
| 90413-10261 |
SXV10..NAP |
1 | ||
| 90904-13011 |
SXV10..NAP |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-06010 |
SXV10..NAP |
1 | ||
| 47312-06050 |
SXV10..NAP |
1 | ||
| 47312-06060 |
SXV10..NAP |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-06060 |
SXV10..NAP |
1 | ||
| 47313-06050 |
SXV10..NAP |
1 | ||
| 47313-06010 |
SXV10..NAP |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02652 |
MCV10,SXV10..NAP RH |
1 | ||
| 90947-02736 |
MCV10,SXV10..NAP LH |
1 | ||
| 90947-02734 |
MCV10,SXV10..NAP RH |
1 | ||
| 90947-02653 |
MCV10,SXV10..NAP LH |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02652 |
MCV10,SXV10..NAP RH |
1 | ||
| 90947-02736 |
MCV10,SXV10..NAP LH |
1 | ||
| 90947-02734 |
MCV10,SXV10..NAP RH |
1 | ||
| 90947-02653 |
MCV10,SXV10..NAP LH |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCV10,SXV10..NAP |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCV10,SXV10..NAP |
4 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCV10,SXV10..NAP |
4 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-06010 |
SXV10..NAP |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-06010 |
SXV10..NAP |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10015 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
4 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 90430-10074 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
4 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02668 |
SXV10..NAP |
1 | ||
| 90080-94023 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) (L) |
1 | ||
| 90947-02750 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) (J) |
1 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02668 |
SXV10..NAP |
1 | ||
| 90080-94023 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) (L) |
1 | ||
| 90947-02750 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) (J) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02751 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) (J) |
1 | ||
| 90947-02669 |
SXV10..NAP |
1 | ||
| 90080-94020 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) (L) |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02751 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) (J) |
1 | ||
| 90947-02669 |
SXV10..NAP |
1 | ||
| 90080-94020 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) (L) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-33030 |
SXV10..NAP..WG (J) |
1 | ||
| 47321-06020 |
SXV10..NAP..WG (L) |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-33030 |
SXV10..NAP..WG (J) |
1 | ||
| 47321-06020 |
SXV10..NAP..WG (L) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-33030 |
SXV10..NAP..WG (J) |
1 | ||
| 47322-06020 |
SXV10..NAP..WG (L) |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-33030 |
SXV10..NAP..WG (J) |
1 | ||
| 47322-06020 |
SXV10..NAP..WG (L) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-06010 |
SXV10..NAP..WG |
1 | ||
| 47326 - TUBE, REAR BRAKE, NO.6 | ||||
| 47326-06010 |
SXV10..NAP..WG |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 47372-50090 |
SXV10..NAP |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 47371-32130 |
MCV10,SXV10..NAP |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 47371-32140 |
MCV10,SXV10..NAP |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 47371-33060 |
SXV10..NAP |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-33030 |
SXV10..NAP..WG |
1 | ||
| Common parts | ||||
| 90119-08587 | ||||
| 90119-10415 | ||||
| 90179-06158 | ||||
| 90179-08146 | ||||
| 90461-06055 | ||||
| 90461-10755 | ||||
| 90480-01621 | ||||
| 90950-01459 | ||||
| 91611-60614 | ||||
| 96991-12080 | ||||
