Toyota Camry (nap/sed/wg) SXV10 BACK DOOR PANEL & GLASS

Part #	Description	Period	Qty
04641A - DAM KIT, BACK WINDOW GLASS ADHESIVE
04562-12010	SXV10..NAP	09/1992 - 10/1992	1
04562-12010	SXV10..NAP..WG	08/1994 - 07/1996	1
67005 - PANEL SUB-ASSY, BACK DOOR
67005-06040	SXV10..NAP..WG	08/1994 - 07/1996	1
67005-06050	SXV10..NAP..WG	09/1992 - 08/1994	1
67281B - STOPPER, BACK DOOR, LOWER
67281-06010	SXV10..NAP..WG	09/1992 - 07/1996	2
67293 - CUSHION, BACK DOOR LOWER STOPPER
67294-33010	SXV10..NAP..WG LH	09/1992 - 07/1996	1
67293-33010	SXV10..NAP..WG RH	09/1992 - 07/1996	1
67881A - WEATHERSTRIP, BACK DOOR
67881-06010	SXV10..NAP..WG	09/1992 - 07/1996	1
68131 - GLASS, BACK DOOR
68131-06010	SXV10..NAP..WG *TT,T=3.5, GREEN	09/1992 - 07/1996	1
68131-06050	SXV10..NAP *TT,T=3.5, GREEN	09/1992 - 09/1993	1
Common parts
90159-50116
90176-06008
90176-08029
90467-06121
90530-19002
90950-01200
90950-01745

Part #	Description	Period	Qty
64033F - GRILLE SUB-ASSY, REAR SPEAKER, RH
64033-06030B0	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	09/1992 - 07/1996	1
64033-06030J0	SXV10..NAP DARK BLUE,TRIM8#	09/1992 - 09/1993	1
64033-06030E0	SXV10..NAP..WG OAK,TRIM4#	09/1992 - 07/1996	1
64034F - GRILLE SUB-ASSY, REAR SPEAKER, LH
64034-06030B0	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	09/1992 - 07/1996	1
64034-06030E0	SXV10..NAP..WG OAK,TRIM4#	09/1992 - 07/1996	1
64034-06030J0	SXV10..NAP DARK BLUE,TRIM8#	09/1992 - 09/1993	1
64276A - BRACKET, BACK PANEL TRIM, UPPER
64276-33010	SXV10..NAP..WG	09/1992 - 07/1996	4
64791C - COVER, BACK DOOR TRIM, RH
64791-33040B0	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	09/1992 - 07/1996	1
64791-33040J0	SXV10..NAP DARK BLUE,TRIM8#	09/1992 - 09/1993	1
64791-33040E0	SXV10..NAP..WG OAK,TRIM4#	09/1992 - 07/1996	1
64792 - COVER, BACK DOOR TRIM, LH
64792-33020J0	SXV10..NAP DARK BLUE,TRIM8#	09/1992 - 09/1993	1
64792-33020B0	SXV10..NAP..WG MEDIUM GARY,TRIM1#	09/1992 - 07/1996	1
64792-33020E0	SXV10..NAP..WG OAK,TRIM4#	09/1992 - 07/1996	1
67750 - BOARD ASSY, BACK DOOR TRIM
67750-06010E0	SXV10..NAP..WG OAK,TRIM4#	09/1992 - 07/1996	1
67750-06010J0	SXV10..NAP DARK BLUE,TRIM8#	09/1992 - 09/1993	1
67750-06010B0	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	09/1992 - 07/1996	1
67765B - COVER, BACK DOOR TRIM, UPPER
67760-06010E0	SXV10..NAP..WG OAK,TRIM4#	09/1992 - 07/1996	1
67760-06010B0	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	09/1992 - 07/1996	1
67760-06010J0	SXV10..NAP DARK BLUE,TRIM8#	09/1992 - 09/1993	1
67847E - COVER, BACK DOOR SERVICE HOLE, RH
67847-06020J1	SXV10..NAP DARK BLUE,TRIM8#	09/1992 - 09/1993	1
67847-06020B1	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	09/1992 - 08/1994	1
67847-06020B0	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	08/1994 - 06/1995	1
67847-06020E1	SXV10..NAP..WG OAK,TRIM4#	09/1992 - 08/1994	1
67847-06020E0	SXV10..NAP..WG OAK,TRIM4#	08/1994 - 06/1995	1
67848E - COVER, BACK DOOR SERVICE HOLE, LH
67848-06020E0	SXV10..NAP..WG OAK,TRIM4#	09/1992 - 06/1995	1
67848-06020B0	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	08/1994 - 06/1995	1
67848-06020B1	SXV10..NAP..WG MEDIUM GRAY,TRIM1#	09/1992 - 08/1994	1
67848-06020J1	SXV10..NAP DARK BLUE,TRIM8#	09/1992 - 09/1993	1
Common parts
90080-46124
90467-10158
90468-05017
90468-05077
90468-06082

SXV10L-CWMDKV (1992)

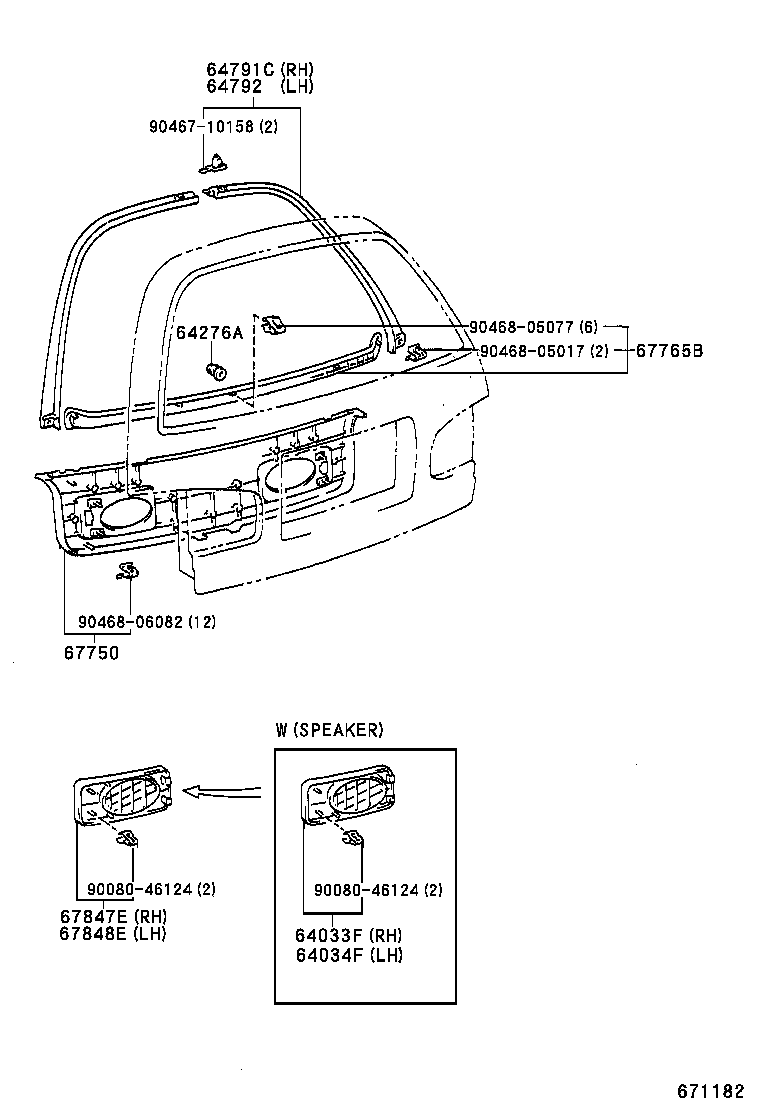

ILLUST NO. 2 OF 2(9209- )NAP..WG

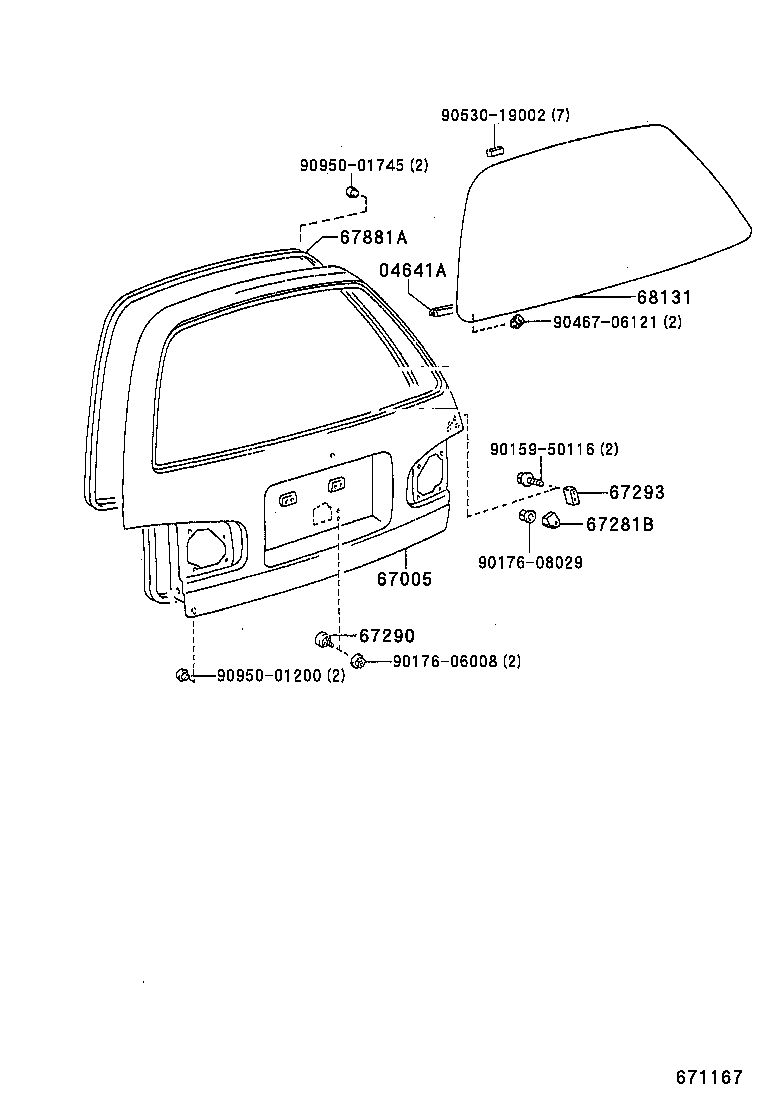

ILLUST NO. 1 OF 2(9209- )NAP..WG
