SXV10L-CWMDKV (1992)

Toyota Camry (Nap/Sed/Wg)

Production Sep 1992 - Jul 1996
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209- )NAP..WG

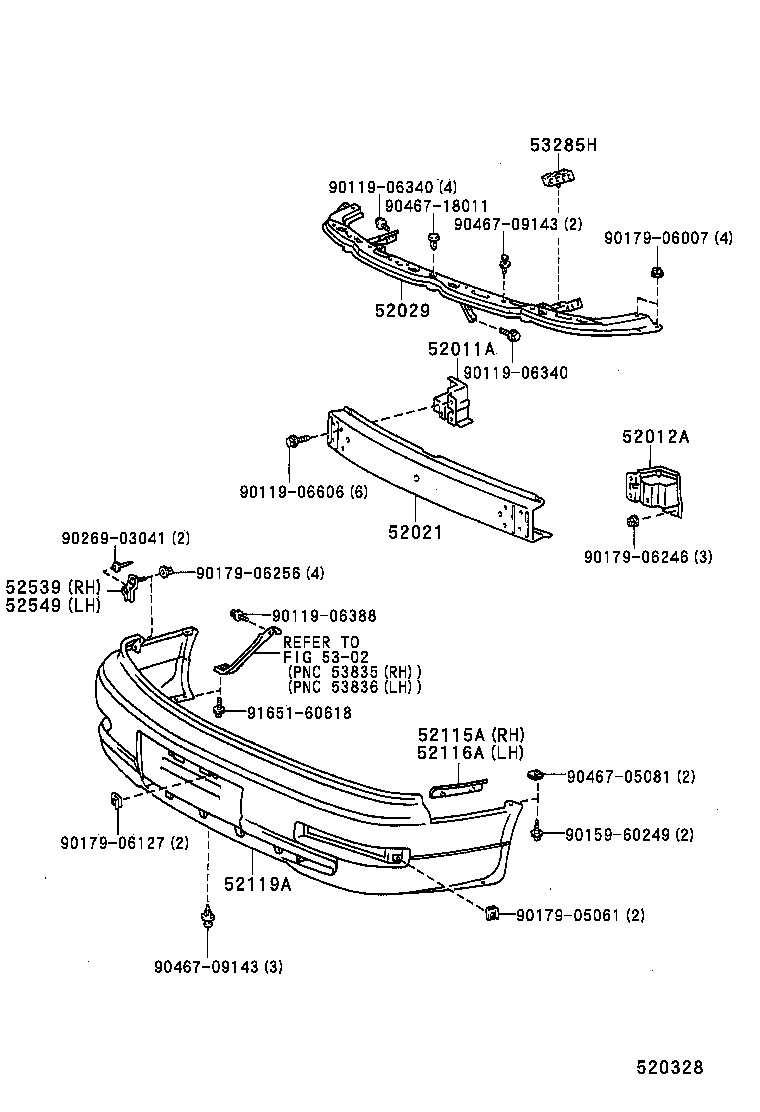

Click highlighted areas on diagram

diagram 52011A 52012A 52021 52029 52115A 52116A 52119A 52539 52549 5302 53285H 9011906340 9011906340 9011906388 9011906606 9015960249 9017905061 9017906007 9017906127 9017906246 9017906256 9026903041 9046705081 9046709143 9046709143 9046718011 9165160618
Part # Description Qty Price
52011A - ARM SUB-ASSY, FRONT BUMPER, RH
52011-06010

MCV10,SXV10..NAP

 1
52012A - ARM SUB-ASSY, FRONT BUMPER, LH
52012-06010

MCV10,SXV10..NAP

 1
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-06012

MCV10,SXV10..NAP

 1
52029 - REINFORCEMENT SUB-ASSY, FRONT BUMPER, UPPER
52029-33030

SXV10..NAP..WG

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-33010

SXV10..NAP..WG

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-33010

SXV10..NAP..WG

 1
52119A - COVER, FRONT BUMPER
52119-33901

SXV10..NAP..WG

 1
52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH
52539-33020

SXV10..NAP..WG

 1
52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH
52549-33020

SXV10..NAP..WG

 1
53285H - SEAL, RADIATOR SIDE AIR, NO.1
53285-33010

MCV10,SXV10..NAP

 1
Common parts
90119-06340
90119-06388
90119-06606
90159-60249
90179-05061
90179-06007
90179-06127
90179-06246
90179-06256
90269-03041
90467-05081
90467-09143
90467-18011
91651-60618
Linked diagrams
5302
