SXV10L-CWMDKV (1992)

Toyota Camry (Nap/Sed/Wg)

Production Sep 1992 - Jul 1996
Engine 5SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9209-9607)NAP..MTM

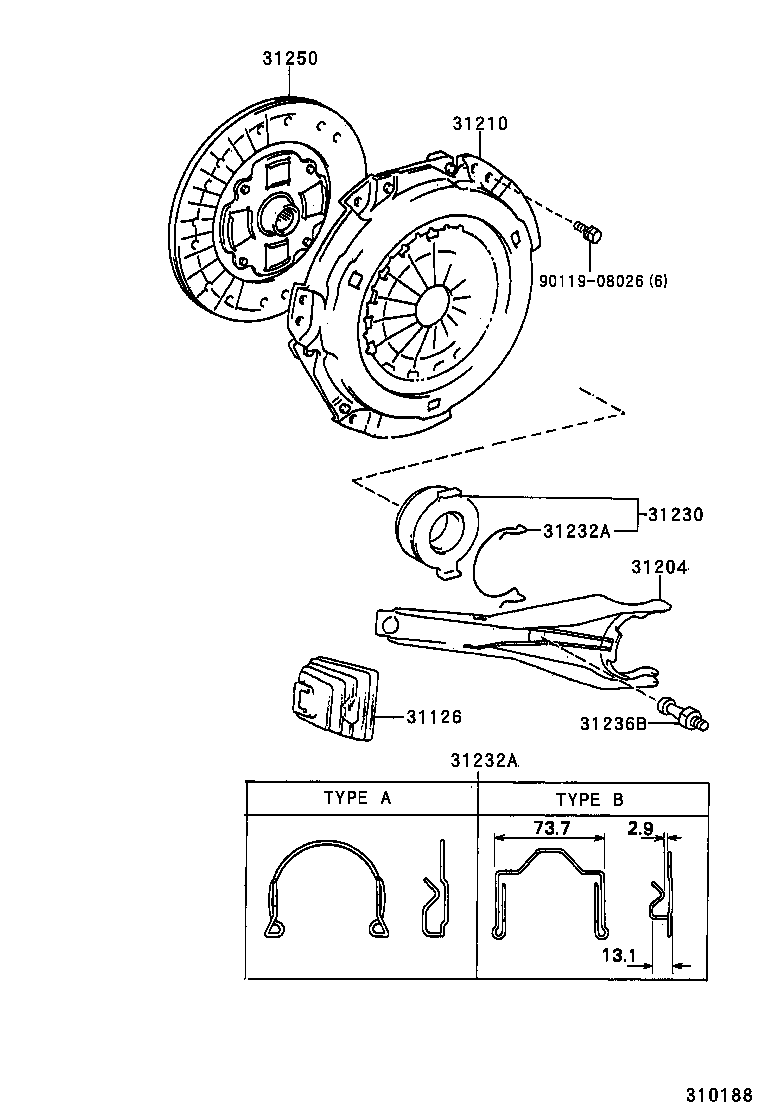

Click highlighted areas on diagram

diagram 31126 31204 31210 31230 31232A 31232A 31236B 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-32010

SXV10..NAP..MTM

 1
31204 - FORK SUB-ASSY, CLUTCH RELEASE
31204-20100

SXV10..NAP..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-33010

SXV10..NAP..MTM

 1
31210-32130

SXV10..NAP..MTM

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-32060

SXV10..NAP..MTM

 1
31232A - CLIP, RELEASE BEARING HUB
31232-20020

SXV10..NAP..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232-32050

SXV10..NAP..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31232A - CLIP, RELEASE BEARING HUB
31232-20020

SXV10..NAP..MTM

TYPE A:REFER TO ILLUSTRATION

 1
31232-32050

SXV10..NAP..MTM

TYPE B:REFER TO ILLUSTRATION

 1
31236B - SUPPORT, RELEASE FORK
31236-32010

SXV10..NAP..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-17040

SXV10..NAP..MTM

 1
31250-33011

SXV10..NAP..MTM

 1
Common parts
90119-08026
