SXV10L-CWMDKV (1992)
Toyota Camry (Nap/Sed/Wg)
Production
Sep 1992
-
Jul 1996
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9209-9607)5SFE..NAP..WG

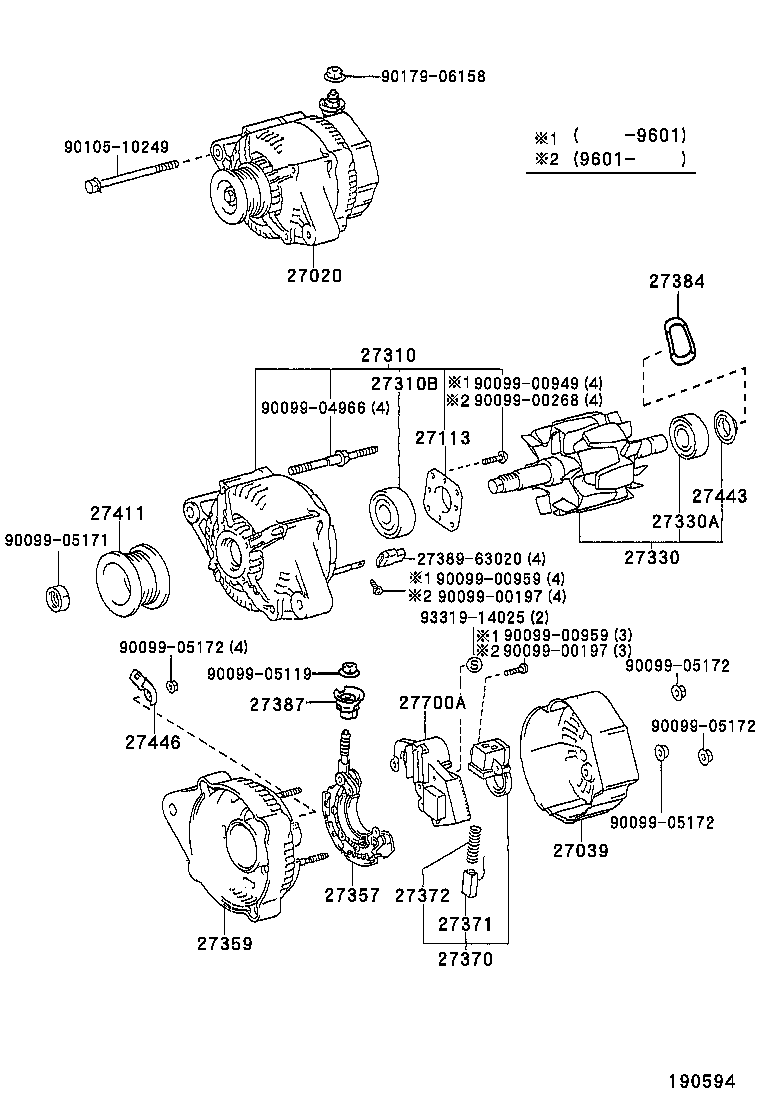

Click highlighted areas on diagram
12V 70A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27020 - ALTERNATOR ASSY | ||||
| 27060-74370 |
5SFE..SXV10..NAP..WG 12V 70A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-73020 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-70200 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-70100 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10178 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-72101 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27330A - BEARING(FOR ALTERNATOR ROTOR) | ||||
| 90099-10140 |
1MZFE,5SFE..MCV10,SXV10..NAP |
1 | ||
| 90099-10140 |
1MZFE..MCV10..NAP;5SFE..SXV10..NAP..WG |
1 | ||
| 27357 - HOLDER, ALTERNATOR, W/RECTIFIER | ||||
| 27357-63020 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27359 - FRAME, ALTERNATOR RECTIFIER END | ||||
| 27359-43160 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27359-43161 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-35060 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-70300 |
5SFE..SXV10..NAP..WG |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-63020 |
5SFE..SXV10..NAP..WG |
2 | ||
| 27384 - WASHER | ||||
| 27384-16380 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27387 - INSULATOR, TERMINAL | ||||
| 27387-70170 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-16211 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27443 - COVER, ALTERNATOR BEARING | ||||
| 27443-63020 |
1MZFE..MCV10..NAP;5SFE..SXV10..NAP..WG |
1 | ||
| 27443-63020 |
1MZFE,5SFE..MCV10,SXV10..NAP |
1 | ||
| 27446 - CLIP, ALTERNATOR CORD | ||||
| 27446-74250 |
5SFE..SXV10..NAP..WG |
1 | ||
| 27446-74250 |
5SFE..SXV10..NAP |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-74030 |
5SFE..SXV10..NAP |
1 | ||
| Common parts | ||||
| 27389-63020 | ||||
| 90099-00197 | ||||
| 90099-00268 | ||||
| 90099-00949 | ||||
| 90099-00959 | ||||
| 90099-04966 | ||||
| 90099-05119 | ||||
| 90099-05171 | ||||
| 90099-05172 | ||||
| 90105-10249 | ||||
| 90179-06158 | ||||
| 93319-14025 | ||||
