SXV10L-CWMDKV (1992)
Toyota Camry (Nap/Sed/Wg)
Production
Sep 1992
-
Jul 1996
Engine
5SFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9209-9607)NAP

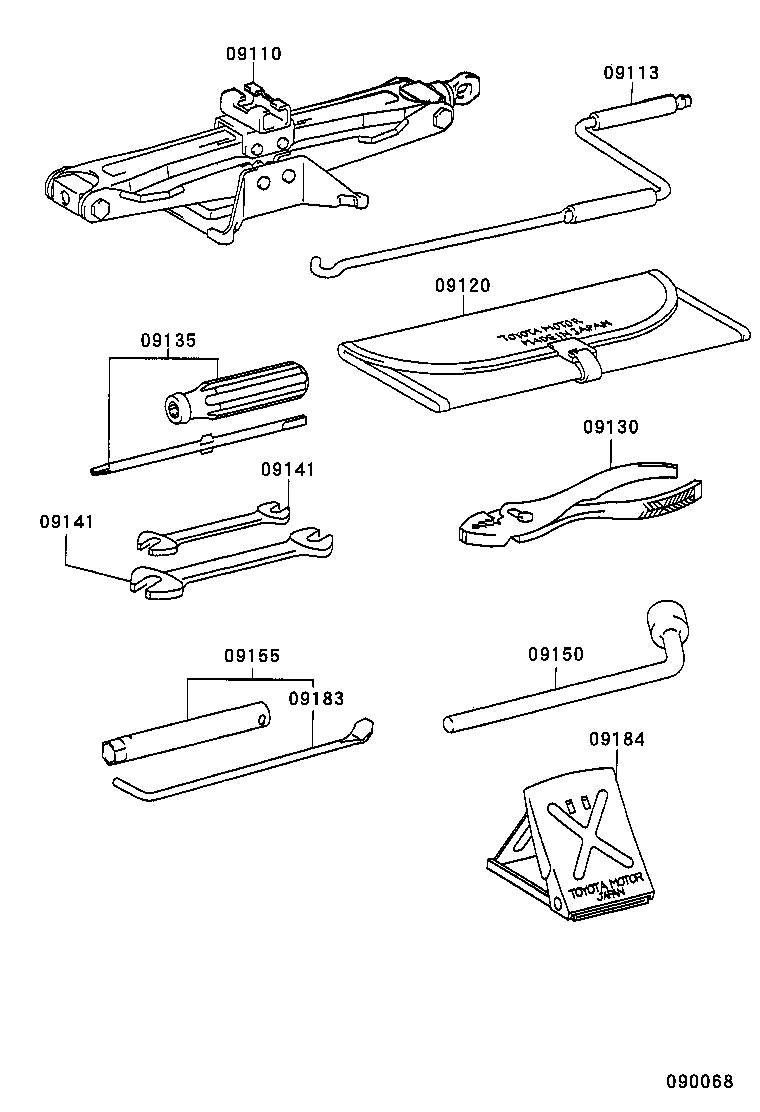

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 09110 - JACK ASSY | ||||
| 09111-20101 |
SXV10..NAP..WG |
1 | ||
| 09113 - HANDLE, JACK | ||||
| 09113-06010 |
MCV10,SXV10..NAP |
1 | ||
| 09120 - BAG, TOOL | ||||
| 09120-10030 |
SXV10..NAP..WG |
1 | ||
| 09120-16030 |
SXV10..NAP..WG |
1 | ||
| 09130 - PLIERS | ||||
| 99913-11500 |
SXV10..NAP..WG |
1 | ||
| 09135 - DRIVER, SCREW | ||||
| 99915-10700 |
SXV10..NAP..WG |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
SXV10..NAP..WG 8 X 10 |
1 | ||
| 99914-11214 |
SXV10..NAP..WG 12 X 14 |
1 | ||
| 09141 - SPANNER | ||||
| 99914-10810 |
SXV10..NAP..WG 8 X 10 |
1 | ||
| 99914-11214 |
SXV10..NAP..WG 12 X 14 |
1 | ||
| 09150 - WRENCH, HUB NUT BOX | ||||
| 09150-26010 |
SXV10..NAP..WG |
1 | ||
| 09155 - WRENCH, SPARK PLUG | ||||
| 09155-74020 |
SXV10..NAP..WG |
1 | ||
| 09183 - WRENCH, WHEEL CAP | ||||
| 09183-00010 |
SXV10..NAP..WG |
1 | ||
| 09184 - STOPPER, WHEEL | ||||
| 09184-00010 |
SXV10..NAP..WG |
1 | ||
