SXV10L-CEPNKR (1993)

Toyota Camry (Nap/Sed/Wg)

Production Sep 1993 - Jul 1996
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9309-9607)NAP..SED

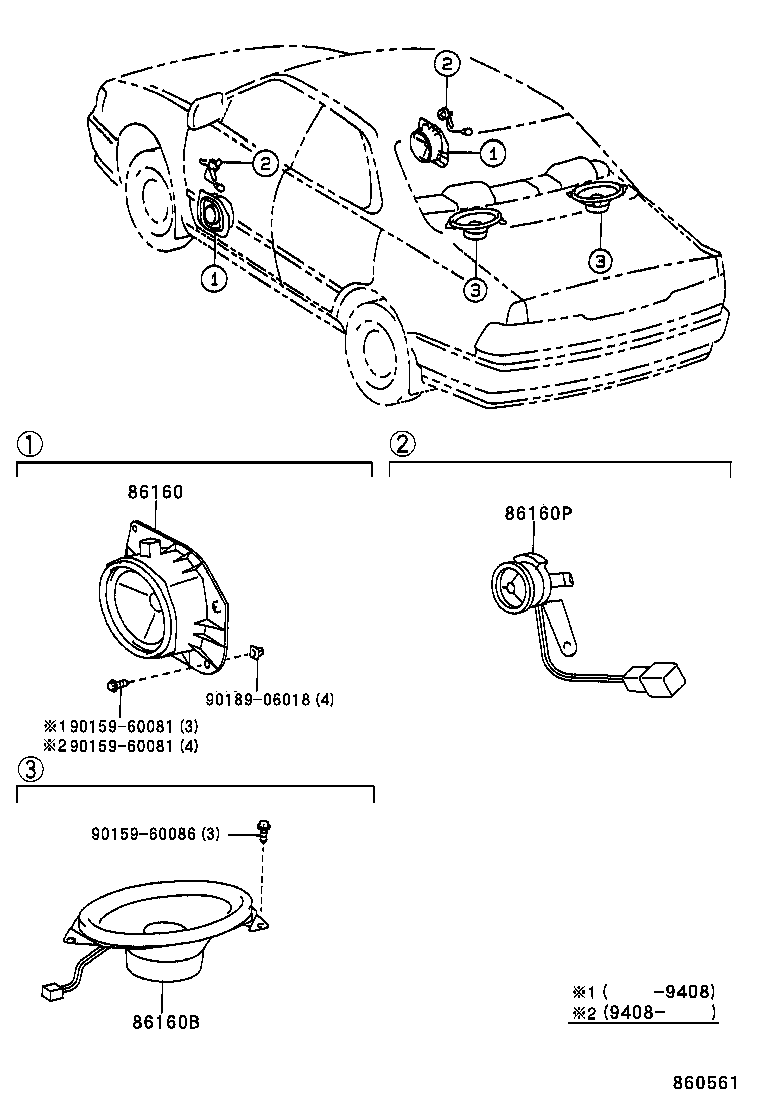

Click highlighted areas on diagram

diagram 86160 86160B 86160P 9015960081 9015960081 9015960086 9018906018
Part # Description Qty Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-06080

MCV10,SXV10..NAP..(GL,LE,SE,XE)

LH

 1
86160-06070

MCV10,SXV10..NAP..(GL,LE,SE,XE)

RH

 1
86160B - SPEAKER ASSY, REAR
86160-06101

MCV10,SXV10..NAP..SED

LH

 1
86160-06091

MCV10,SXV10..NAP..SED

RH

 1
86160P - SPEAKER ASSY, FRONT NO.2
86160-06060

MCV10,SXV10..NAP..(SE,XE)

LH

 1
86160-06050

MCV10,SXV10..NAP..(SE,XE)

RH

 1
Common parts
90159-60081
90159-60086
90189-06018
