SXV10L-CEPDKR (1993)
Toyota Camry (Nap/Sed/Wg)
ILLUST NO. 4 OF 4(9209-9607)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46503 - PLATE SUB-ASSY, PARKING BRAKE, RH | ||||
| 46503-20010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 46504 - PLATE SUB-ASSY, PARKING BRAKE, LH | ||||
| 46504-20010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 46540 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.1 | ||||
| 46540-20040 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 46550 - SHOE ASSY, PARKING BRAKE, RH OR CENTER NO.2 | ||||
| 46550-20040 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 46550C - WASHER, TYPE C(FOR PARKING BRAKE SHOE) | ||||
| 90213-07018 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 46550E - SPRING, TENSION, NO.2(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90506-12010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
4 | ||
| 46550G - SPRING, TENSION, NO.3(FOR PARKING BRAKE SHOE RETURN) | ||||
| 90507-16009 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
4 | ||
| 46550H - SHIM(FOR PARKING BRAKE SHOE) | ||||
| 90564-09184 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) T=0.3 |
1 | ||
| 90564-09186 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) T=0.9 |
1 | ||
| 90564-09185 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) T=0.6 |
1 | ||
| 46580 - SHOE ASSY, PARKING BRAKE, LH NO.1 | ||||
| 46540-20040 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 46590 - SHOE ASSY, PARKING BRAKE, LH NO.2 | ||||
| 46590-20040 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 47405A - SCREW SET, SHOE ADJUSTING, RH(FOR PARKING BRAKE) | ||||
| 47405-30040 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 47406A - SCREW SET, SHOE ADJUSTING, LH(FOR PARKING BRAKE) | ||||
| 47406-30040 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
4 | ||
| 47447D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE HOLD DOWN) | ||||
| 90501-14049 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
4 | ||
| 47447E - PIN, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47447-20030 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 47447F - PIN, SHOE HOLD DOWN SPRING, NO.2(FOR PARKING BRAKE) | ||||
| 47447-22020 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) INNER |
4 | ||
| 47449-30030 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) INNER |
4 | ||
| 47449-30030 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) INNER |
4 | ||
| 47449-30030 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) OUTER |
4 | ||
| 47449A - CUP, SHOE HOLD DOWN SPRING, NO.1(FOR PARKING BRAKE) | ||||
| 47449-32010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) INNER |
4 | ||
| 47449-30030 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) OUTER |
4 | ||
| 47456A - PLATE, SHOE GUIDE(FOR PARKING BRAKE) | ||||
| 47456-20030 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 47456-33010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 47459B - BOLT, SHOE GUIDE PLATE SET(FOR PARKING BRAKE) | ||||
| 47459-30010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 47611 - LEVER, PARKING BRAKE SHOE, RH | ||||
| 47611-20030 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 47612 - LEVER, PARKING BRAKE SHOE, LH | ||||
| 47612-20030 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 47613D - SPRING, COMPRESSION(FOR PARKING BRAKE SHOE STRUT) | ||||
| 90504-14002 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
2 | ||
| 47613E - STRUT, PARKING BRAKE SHOE, RH | ||||
| 47613-20040 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||
| 47614 - STRUT, PARKING BRAKE SHOE, LH | ||||
| 47614-20010 |
MCV10,SXV10..NAP..(GL,LE,SE,XE,XL) |
1 | ||

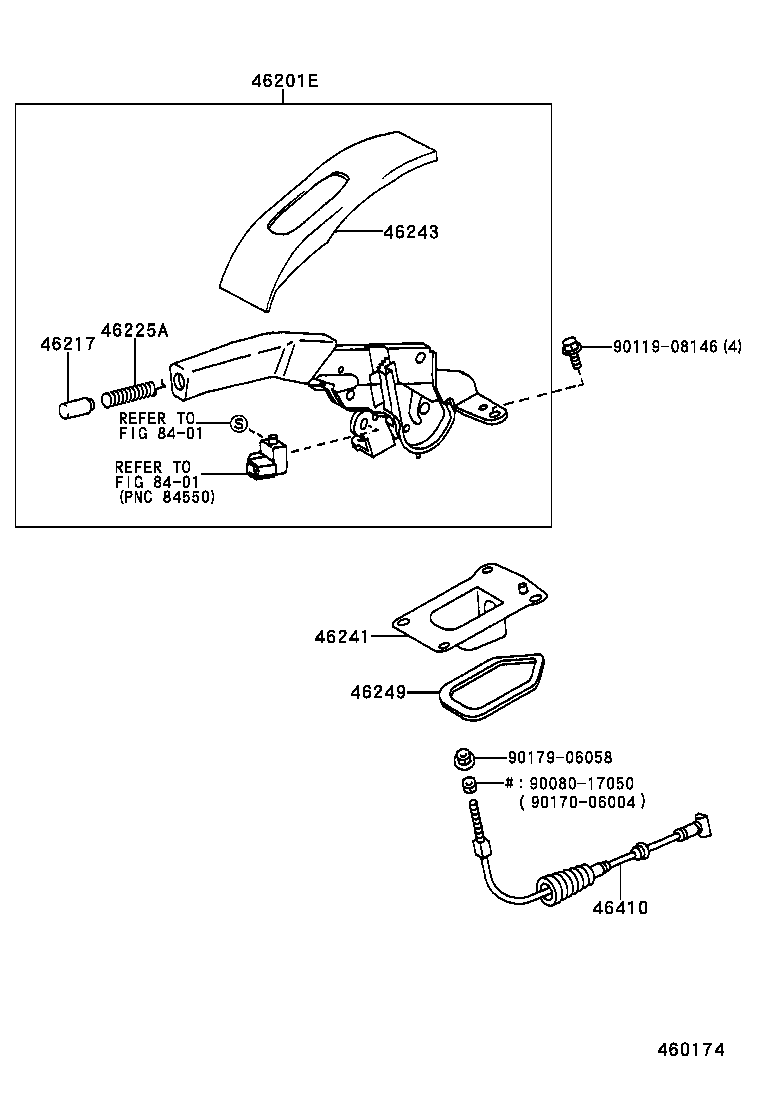

ILLUST NO. 1 OF 4(9209-9607)NAP..SE ; (9209-9607)SXV10..NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-06040C0 |
SXV10..NAP BLACK,TRIM1#,4#,8# |
1 | ||
| 46201-06030E0 |
SXV10..NAP..(DX,LE) OAK,TRIM4# |
1 | ||
| 46201-06030B0 |
SXV10..NAP..(DX,LE) MEDIUM GRAY,TRIM1# |
1 | ||
| 46201-06030K0 |
SXV10..NAP..(DX,LE) TAUPE,TRIM9# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-06010C0 |
SXV10..NAP BLACK,TRIM1#,4#,8# |
1 | ||
| 46217-06010B0 |
SXV10..NAP..SED MEDIUM GRAY,TRIM1# |
1 | ||
| 46217-06010E0 |
SXV10..NAP..SED OAK,TRIM4# |
1 | ||
| 46217-06010K0 |
SXV10..NAP..SED TAUPE,TRIM9# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90080-50064 |
SXV10..NAP |
1 | ||
| 46241 - BOOT, PARKING BRAKE LEVER | ||||
| 46241-06010 |
SXV10..NAP |
1 | ||
| 46243 - COVER, PARKING BRAKE LEVER | ||||
| 46243-06020 |
SXV10..NAP |
1 | ||
| 46249 - SHIELD, PARKING BRAKE HOLE | ||||
| 46249-06010 |
SXV10..NAP |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-06010 |
SXV10..NAP;MCV10..NAP..SE |
1 | ||
| Common parts | ||||
| 90080-17050 | ||||
| 90119-08146 | ||||
| 90170-06004 | ||||
| 90179-06058 | ||||
| Linked diagrams | ||||
| 8401 | ||||

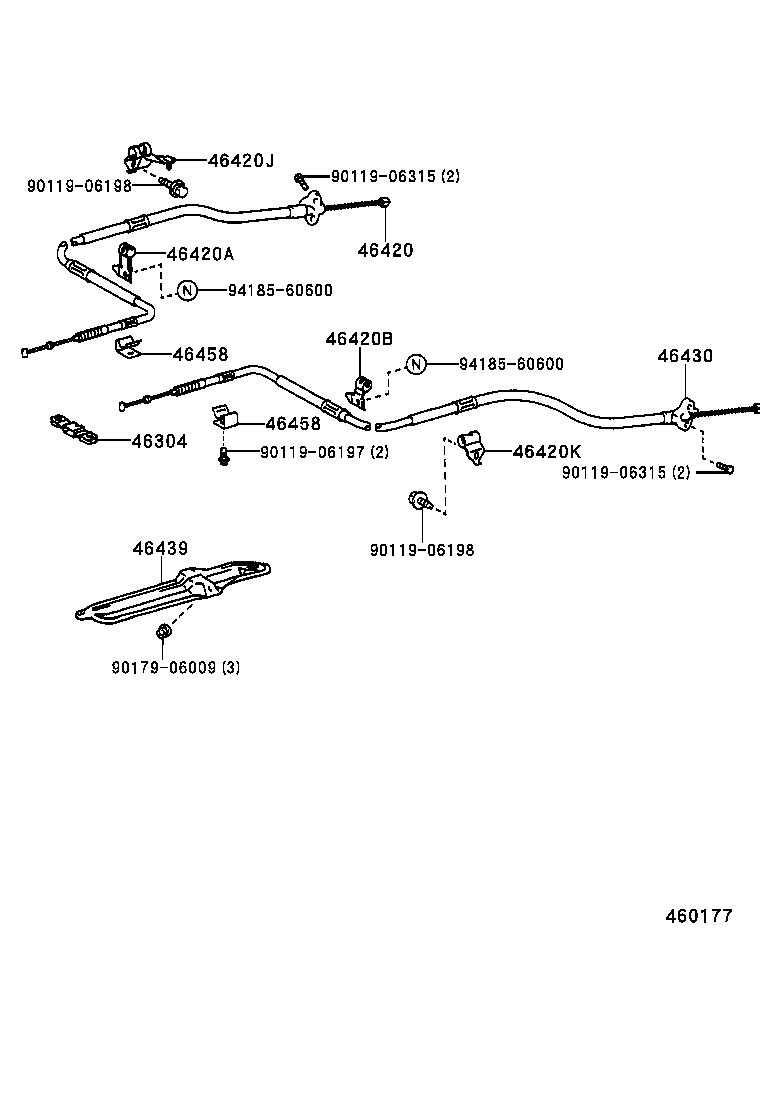

ILLUST NO. 3 OF 4(9209-9607)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46341-33010 |
MCV10,SXV10..NAP |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-06040 |
SXV10..NAP..(DX,LE) |
1 | ||
| 46420-33041 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) |
1 | ||
| 46420A - CLAMP, NO.1(FOR PARKING BRAKE CABLE) | ||||
| 90949-01663 |
MCV10,SXV10..NAP |
1 | ||
| 46420B - CLAMP, NO.2(FOR PARKING BRAKE CABLE) | ||||
| 90949-01664 |
MCV10,SXV10..NAP |
1 | ||
| 46420J - CLAMP, NO.3(FOR PARKING BRAKE CABLE) | ||||
| 90949-01A66 |
MCV10,SXV10..NAP |
1 | ||
| 90949-01709 |
MCV10,SXV10..NAP |
1 | ||
| 46420K - CLAMP, NO.4(FOR PARKING BRAKE CABLE) | ||||
| 90949-01A67 |
MCV10,SXV10..NAP |
1 | ||
| 90949-01711 |
MCV10,SXV10..NAP |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-06040 |
SXV10..NAP..(DX,LE) |
1 | ||
| 46430-33041 |
MCV10,SXV10..NAP..(GL,SE,XE,XL) |
1 | ||
| 46439 - INSULATOR, PARKING BRAKE CABLE HEAT | ||||
| 46439-06010 |
MCV10,SXV10..NAP..SED |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
MCV10,SXV10..NAP |
2 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
MCV10,SXV10..NAP |
2 | ||
| Common parts | ||||
| 90119-06197 | ||||
| 90119-06198 | ||||
| 90119-06315 | ||||
| 90179-06009 | ||||
| 94185-60600 | ||||
