MCV10L-CEPGKR (1993)
Toyota Camry (Nap/Sed/Wg)

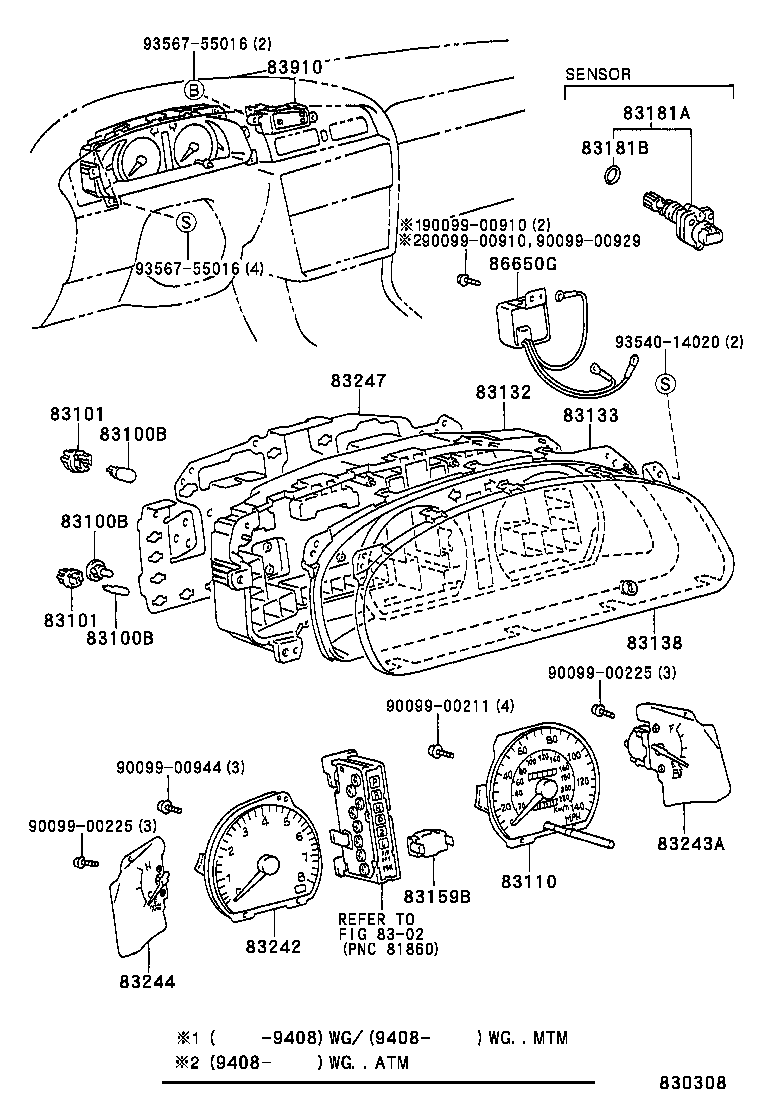

ILLUST NO. 1 OF 2(9209-9607)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCV10,SXV10..NAP..SED 14V 3.78W |
4 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14030 |
MCV10,SXV10..NAP 14V 3.78W |
4 | ||
| 83101-32020 |
MCV10,SXV10..NAP OD=12.2 BLUE |
1 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,SE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14040 |
MCV10..NAP OD=11.3 BLACK |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCV10,SXV10..NAP..SED 14V 3.78W |
4 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14030 |
MCV10,SXV10..NAP 14V 3.78W |
4 | ||
| 83101-32020 |
MCV10,SXV10..NAP OD=12.2 BLUE |
1 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,SE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14040 |
MCV10..NAP OD=11.3 BLACK |
12 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-06020 |
MCV10,SXV10..NAP..SED |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-06010 |
MCV10,SXV10..NAP |
1 | ||
| 83132-33070 |
MCV10,SXV10..NAP |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83133-06010 |
MCV10,SXV10..NAP..ATM..(GL,LE,XE) |
1 | ||
| 83133-33030 |
MCV10,SXV10..NAP..ATM..(GL,LE,SE,XE) |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83138-33030 |
MCV10,SXV10..NAP |
1 | ||
| 83138-06010 |
MCV10,SXV10..NAP |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22170 |
MCV10,SXV10..NAP..SED |
1 | ||
| 83181A - SENSOR, SPEEDOMETER | ||||
| 83181-12040 |
MCV10,SXV10..NAP..ATM |
1 | ||
| 83181B - RING, O (FOR SPEEDOMETER SENSOR) | ||||
| 96711-24018 |
MCV10,SXV10..NAP |
1 | ||
| 83242 - TACHOMETER ASSY, ENGINE | ||||
| 83242-06040 |
MCV10..NAP |
1 | ||
| 83242-33350 |
MCV10..NAP |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83243-33030 |
MCV10,SXV10..NAP |
1 | ||
| 83243-06010 |
MCV10,SXV10..NAP |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-33190 |
MCV10,SXV10..NAP..SED |
1 | ||
| 83244-06020 |
MCV10,SXV10..NAP..SED |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83247-33110 |
MCV10,SXV10..NAP..(LE,SE,XE) |
1 | ||
| 83247-06010 |
MCV10,SXV10..NAP..(LE,XE) |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-06010 |
MCV10,SXV10..NAP |
1 | ||
| 83910-06011 |
MCV10,SXV10..NAP |
1 | ||
| Common parts | ||||
| 90099-00211 | ||||
| 90099-00225 | ||||
| 90099-00910 | ||||
| 90099-00929 | ||||
| 90099-00944 | ||||
| 93540-14020 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 8302 | ||||

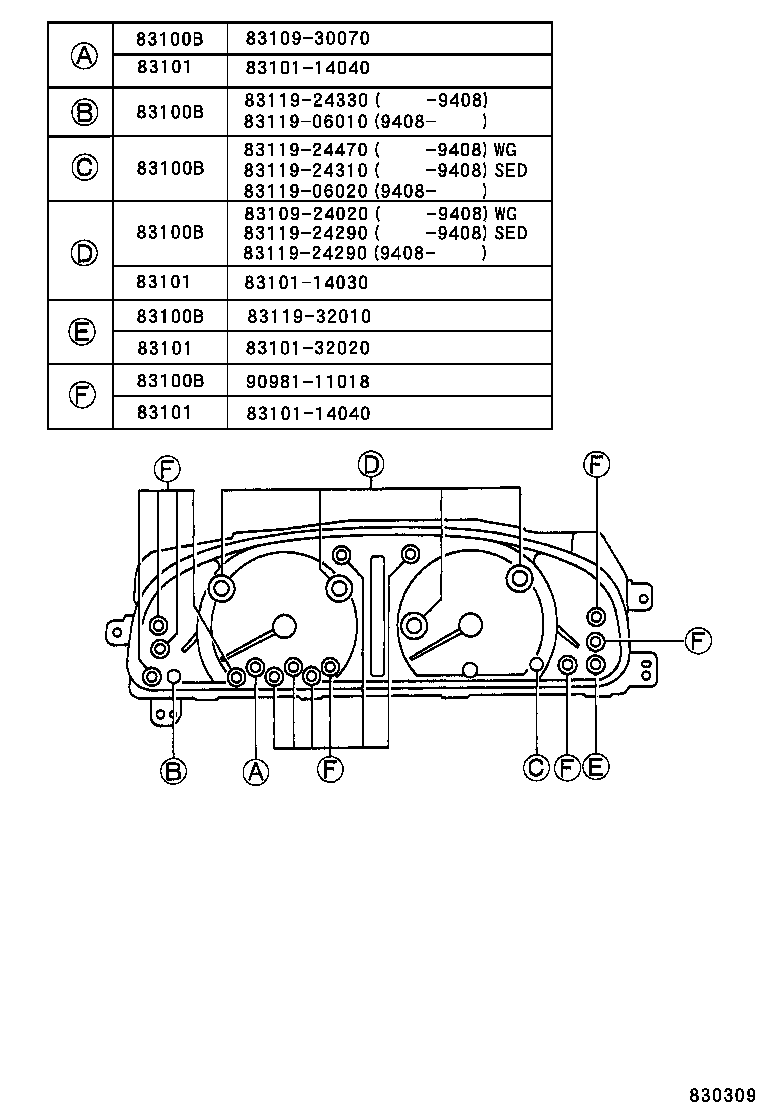

ILLUST NO. 2 OF 2(9209-9607)NAP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 83119-24310 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 90981-11018 |
MCV10,SXV10..NAP..(LE,SE,XE) 12V 1.2W W/O SOCKET,TYPE F:REFER TO ILLUSTRATION |
11 | ||
| 83119-24290 |
MCV10,SXV10..NAP 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-24330 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-06010 |
MCV10,SXV10..NAP..SED 14V 2.0W,TYPE B:REFER TO ILLUSTRATION |
1 | ||
| 83119-24290 |
MCV10,SXV10..NAP..SED 14V 3.78W,TYPE D:REFER TO ILLUSTRATION |
4 | ||
| 83119-06020 |
MCV10,SXV10..NAP 14V 2.0W,TYPE C:REFER TO ILLUSTRATION |
1 | ||
| 83119-32010 |
MCV10,SXV10..NAP 14V 3.0W,TYPE E:REFER TO ILLUSTRATION |
1 | ||
| 83109-30070 |
MCV10,SXV10..NAP 14V 2.0W,W/O SOCKET,TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCV10,SXV10..NAP..SED 14V 3.78W |
4 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14030 |
MCV10,SXV10..NAP 14V 3.78W |
4 | ||
| 83101-32020 |
MCV10,SXV10..NAP OD=12.2 BLUE |
1 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,SE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14040 |
MCV10..NAP OD=11.3 BLACK |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCV10,SXV10..NAP..SED 14V 3.78W |
4 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14030 |
MCV10,SXV10..NAP 14V 3.78W |
4 | ||
| 83101-32020 |
MCV10,SXV10..NAP OD=12.2 BLUE |
1 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,SE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14040 |
MCV10..NAP OD=11.3 BLACK |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCV10,SXV10..NAP..SED 14V 3.78W |
4 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14030 |
MCV10,SXV10..NAP 14V 3.78W |
4 | ||
| 83101-32020 |
MCV10,SXV10..NAP OD=12.2 BLUE |
1 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,SE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14040 |
MCV10..NAP OD=11.3 BLACK |
12 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
MCV10,SXV10..NAP..SED 14V 3.78W |
4 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14030 |
MCV10,SXV10..NAP 14V 3.78W |
4 | ||
| 83101-32020 |
MCV10,SXV10..NAP OD=12.2 BLUE |
1 | ||
| 83101-14040 |
MCV10,SXV10..NAP..(LE,SE,XE) OD=11.3 BLACK |
12 | ||
| 83101-14040 |
MCV10..NAP OD=11.3 BLACK |
12 | ||
Part Price Details
Loading price information...
Part Number:
Price:
