MCV10L-CEPGKR (1993)
Toyota Camry (Nap/Sed/Wg)
Production
Sep 1993
-
Jul 1996
Engine
1MZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9209-9607)NAP

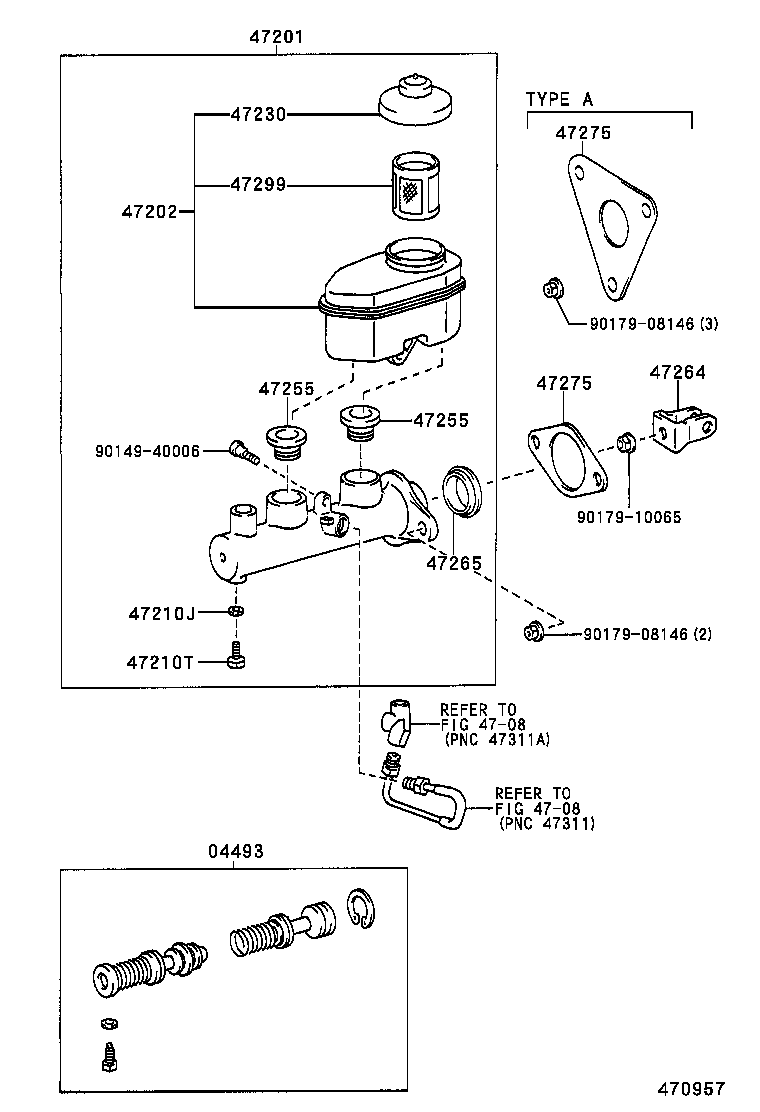

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04493 - CYLINDER KIT, BRAKE MASTER | ||||
| 04493-33020 |
MCV10..NAP |
1 | ||
| 04493-33060 |
MCV10..NAP |
1 | ||
| 47201 - CYLINDER SUB-ASSY, BRAKE MASTER | ||||
| 47201-33040 |
MCV10..NAP |
1 | ||
| 47201-07020 |
MCV10..NAP |
1 | ||
| 47202 - RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER | ||||
| 47220-06011 |
MCV10,SXV10..NAP |
1 | ||
| 47220-33011 |
MCV10..NAP |
1 | ||
| 47210J - GASKET(FOR MASTER CYLINDER) | ||||
| 90430-06104 |
MCV10,SXV10..NAP |
1 | ||
| 47210T - BOLT(FOR BRAKE MASTER CYLINDER) | ||||
| 90109-06077 |
MCV10,SXV10..NAP |
1 | ||
| 47230 - CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER | ||||
| 47230-12040 |
MCV10,SXV10..NAP |
1 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
MCV10..NAP |
2 | ||
| 47255-03010 |
MCV10,SXV10..NAP |
2 | ||
| 47255 - GROMMET, MASTER CYLINDER RESERVOIR | ||||
| 47255-16010 |
MCV10..NAP |
2 | ||
| 47255-03010 |
MCV10,SXV10..NAP |
2 | ||
| 47264 - CLEVIS, MASTER CYLINDER PUSH ROD | ||||
| 47264-16020 |
MCV10,SXV10..NAP |
1 | ||
| 47264-33010 |
MCV10,SXV10..NAP |
1 | ||
| 47265 - BOOT, MASTER CYLINDER | ||||
| 47265-20050 |
MCV10..NAP |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
MCV10,SXV10..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47275-12020 |
MCV10,SXV10..NAP |
1 | ||
| 47275 - GASKET, BRAKE MASTER CYLINDER | ||||
| 47275-32010 |
MCV10,SXV10..NAP TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 47275-12020 |
MCV10,SXV10..NAP |
1 | ||
| 47299 - STRAINER, BRAKE MASTER CYLINDER RESERVOIR | ||||
| 47299-24010 |
MCV10,SXV10..NAP |
1 | ||
| Common parts | ||||
| 90149-40006 | ||||
| 90179-08146 | ||||
| 90179-10065 | ||||
| Linked diagrams | ||||
| 4708 | ||||
