VCV10R-AEPGKN (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Aug 1997
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208-9708)3VZFE..JPP

Click highlighted areas on diagram

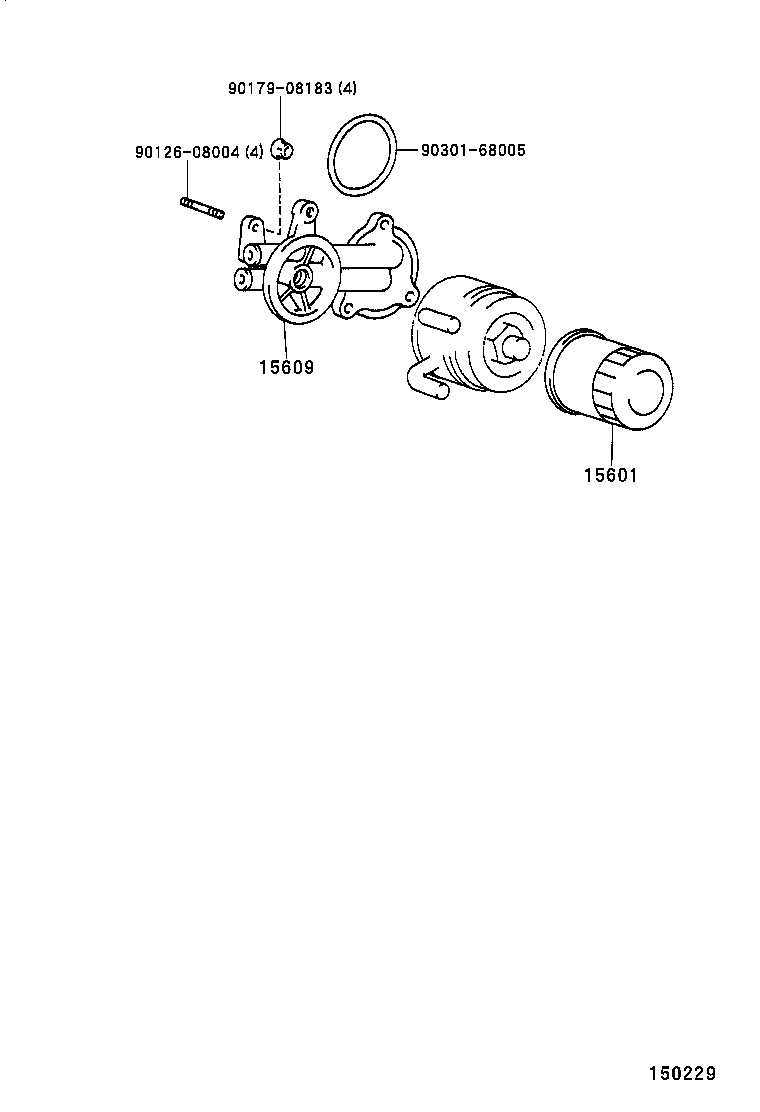

diagram 15601 15609 9012608004 9017908183 9030168005
Part # Description Qty Price
15601 - FILTER SUB-ASSY, OIL
90915-20001

3VZFE..VCV10..JPP

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15671-62030

3VZFE..VCV10..JPP..ATM;3VZFE..VCV10..JPP..LHD..MTM

 1
Common parts
90126-08004
90179-08183
90301-68005
