VCV10R-AEMGKN (1992)
Toyota Camry (Jpp/Sed)
Production
Aug 1992
-
Aug 1997
Engine
3VZFE
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(9208- )VCV10..JPP..SEI

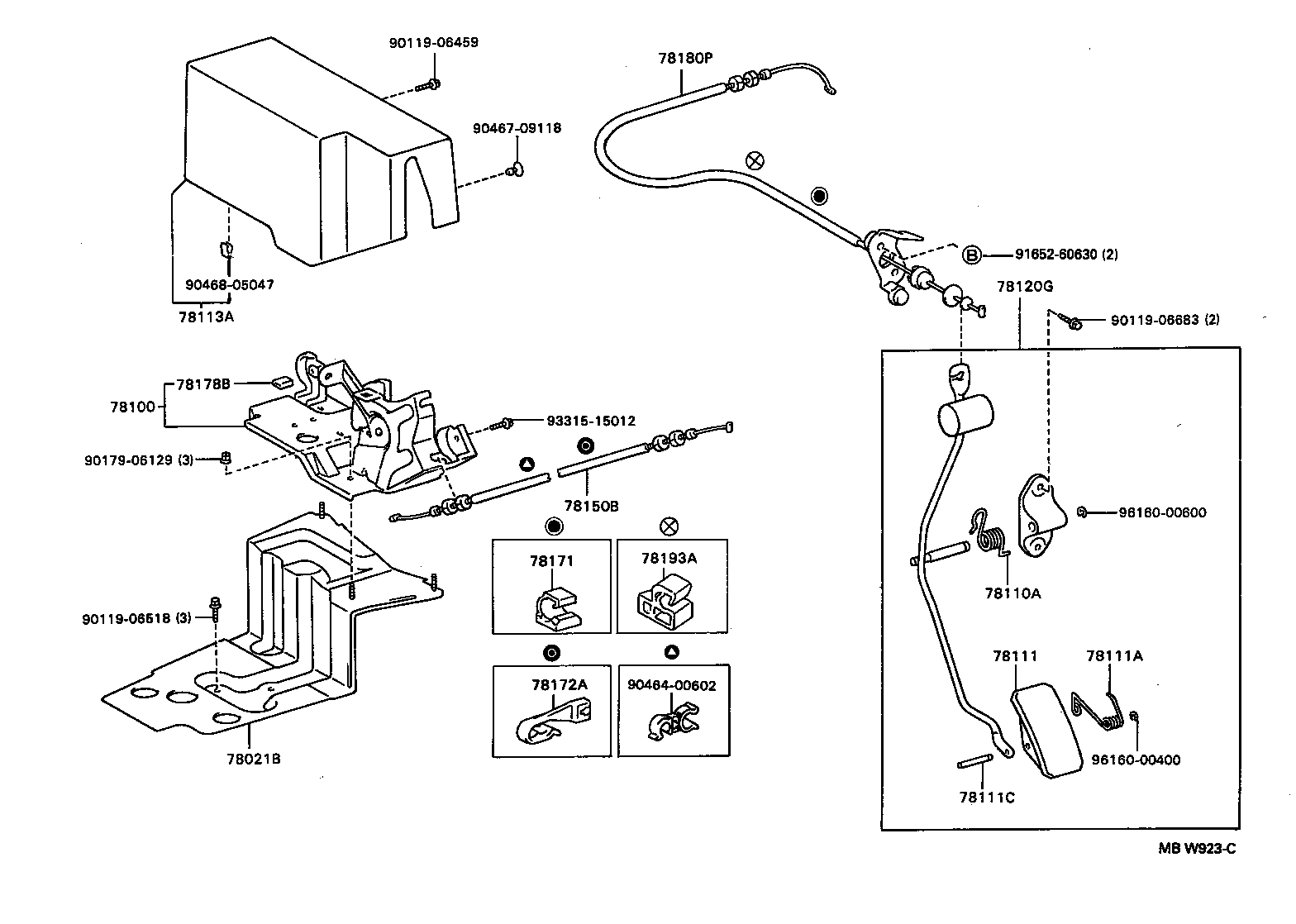

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78021B - BRACKET SUB-ASSY, ACCEL CONTROL BELLCRANK | ||||
| 78021-33010 |
VCV10..JPP..(LUM,SEI) |
1 | ||
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-33010 |
VCV10..JPP..(LUM,SEI) |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-23069 |
SXV1#,VCV10..JPP..RHD..MTM |
1 | ||
| 78111 - PEDAL, ACCELERATOR | ||||
| 78111-12100 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 78111A - SPRING (FOR ACCELERATOR PEDAL) | ||||
| 90508-18046 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 78111C - PIN (FOR ACCELERATOR PEDAL) | ||||
| 90249-05001 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-33010 |
VCV10..JPP..(LUM,SEI) |
1 | ||
| 78120G - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78120-33040 |
SXV1#,VCV10..JPP..RHD..MTM |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-33050 |
VCV10..JPP..(LUM,SEI) |
1 | ||
| 78171 - BRACKET, ACCELERATOR CONTROL NO.2 ROD, RH | ||||
| 78171-33010 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 78172A - BRACKET, ACCELERATOR CONTROL NO.2 ROD, LH | ||||
| 78172-33010 |
VCV10..JPP..(LUM,SEI) |
1 | ||
| 78178B - DAMPER, ACCEL CONTROL NO.4 ROD BRACKET | ||||
| 78178-14010 |
VCV10..JPP..(LUM,SEI) |
1 | ||
| 78180P - CABLE ASSY, ACCELERATOR CONTROL | ||||
| 78180-33010 |
VCV10..JPP..SEI |
1 | ||
| 78193A - SUPPORT, ACCELERATOR CONTROL CABLE, NO.3 | ||||
| 78193-33010 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| Common parts | ||||
| 90119-06459 | ||||
| 90119-06518 | ||||
| 90119-06683 | ||||
| 90179-06129 | ||||
| 90464-00602 | ||||
| 90467-09118 | ||||
| 90468-05047 | ||||
| 91652-60630 | ||||
| 93315-15012 | ||||
| 96160-00400 | ||||
| 96160-00600 | ||||
