VCV10L-AEPNKV (1993)

Toyota Camry (Jpp/Sed)

Production Aug 1993 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

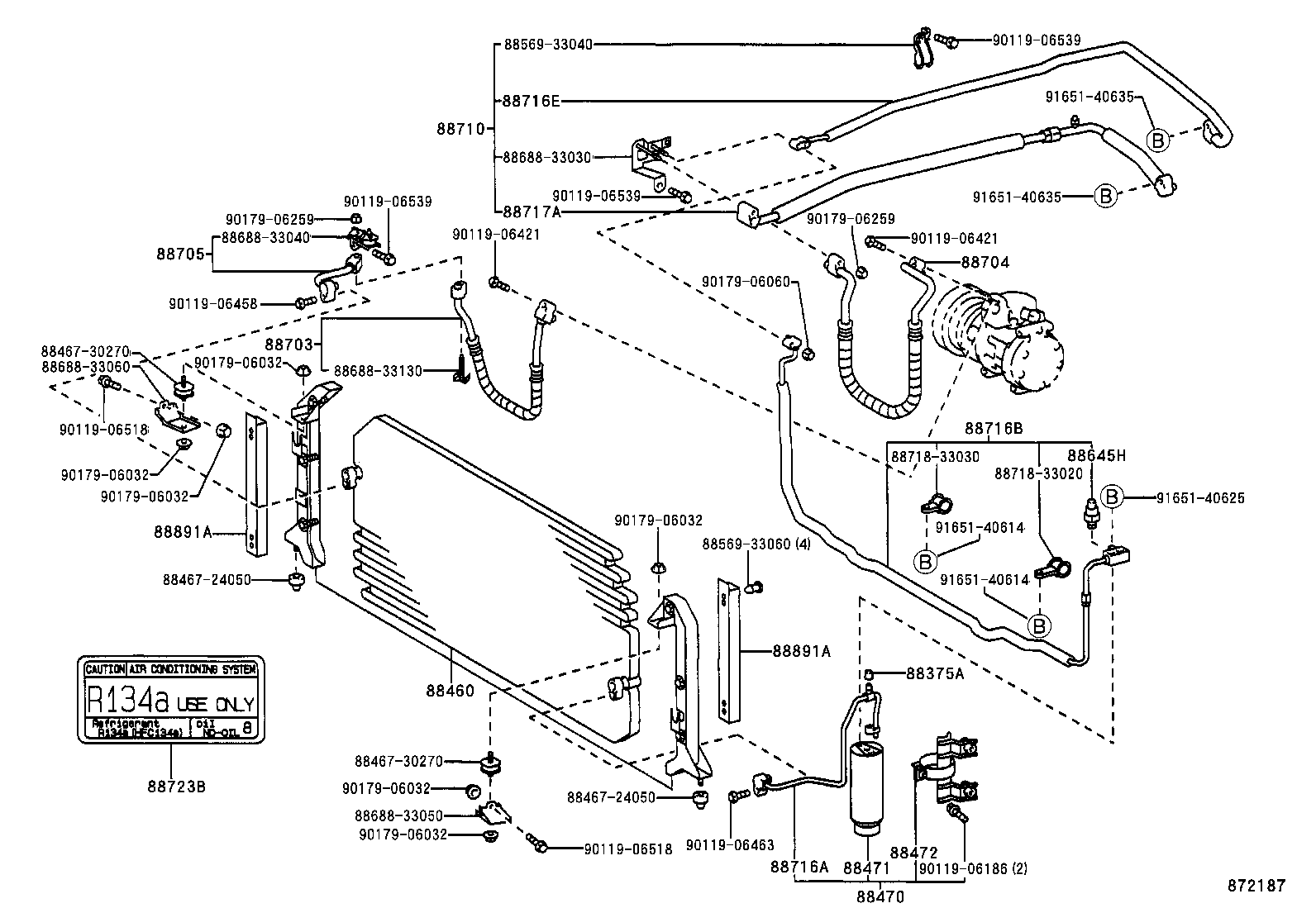

ILLUST NO. 1 OF 2(9208-9408)VCV10..JPP..LHD

Click highlighted areas on diagram

diagram 88375A 88460 8846724050 8846724050 8846730270 8846730270 88470 88471 88472 8856933040 8856933060 88645H 8868833030 8868833040 8868833050 8868833060 8868833130 88703 88704 88705 88710 88716A 88716B 88716E 88717A 8871833020 8871833030 88723B 88891A 88891A 9011906186 9011906421 9011906421 9011906458 9011906463 9011906518 9011906518 9011906539 9011906539 9011906539 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906060 9017906259 9017906259 9165140614 9165140614 9165140625 9165140635 9165140635
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010

SXV1#,VCV10..JPP

 1
88460 - CONDENSER ASSY, COOLER
88460-33010

SXV1#,VCV10..JPP

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-33010

SXV1#,VCV10..JPP

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50010

SXV1#,VCV10..JPP

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-33010

SXV1#,VCV10..JPP

 1
88473-33030

SXV1#,VCV10..JPP

 1
88645H - SWITCH, PRESSURE NO.1
88645-20040

SXV1#,VCV10..JPP

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-33040

VCV10..JPP

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-33040

VCV10..JPP..LHD

 1
88704-33100

VCV10..JPP..LHD

 1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-33010

VCV10..JPP

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-33060

SXV10,VCV10..JPP..LHD

 1
88710-33040

SXV10,VCV10..JPP..LHD

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-33040

SXV1#,VCV10..JPP

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-33030

SXV10,VCV10..JPP..LHD

 1
88716-33110

SXV10,VCV10..JPP..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-33100

SXV10,VCV10..JPP..LHD

 1
88716-33020

SXV10,VCV10..JPP..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33020

SXV10,VCV10..JPP..LHD

 1
88717-33080

SXV10,VCV10..JPP..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-24010

VCV10..JPP

SHROUD FAN

 1
88723-14010

SXV1#,VCV10..JPP

E/G HOOD

 1
Common parts
88467-24050
88467-30270
88569-33040
88569-33060
88688-33030
88688-33040
88688-33050
88688-33060
88688-33130
88718-33020
88718-33030
90119-06186
90119-06421
90119-06458
90119-06463
90119-06518
90119-06539
90179-06032
90179-06060
90179-06259
91651-40614
91651-40625
91651-40635

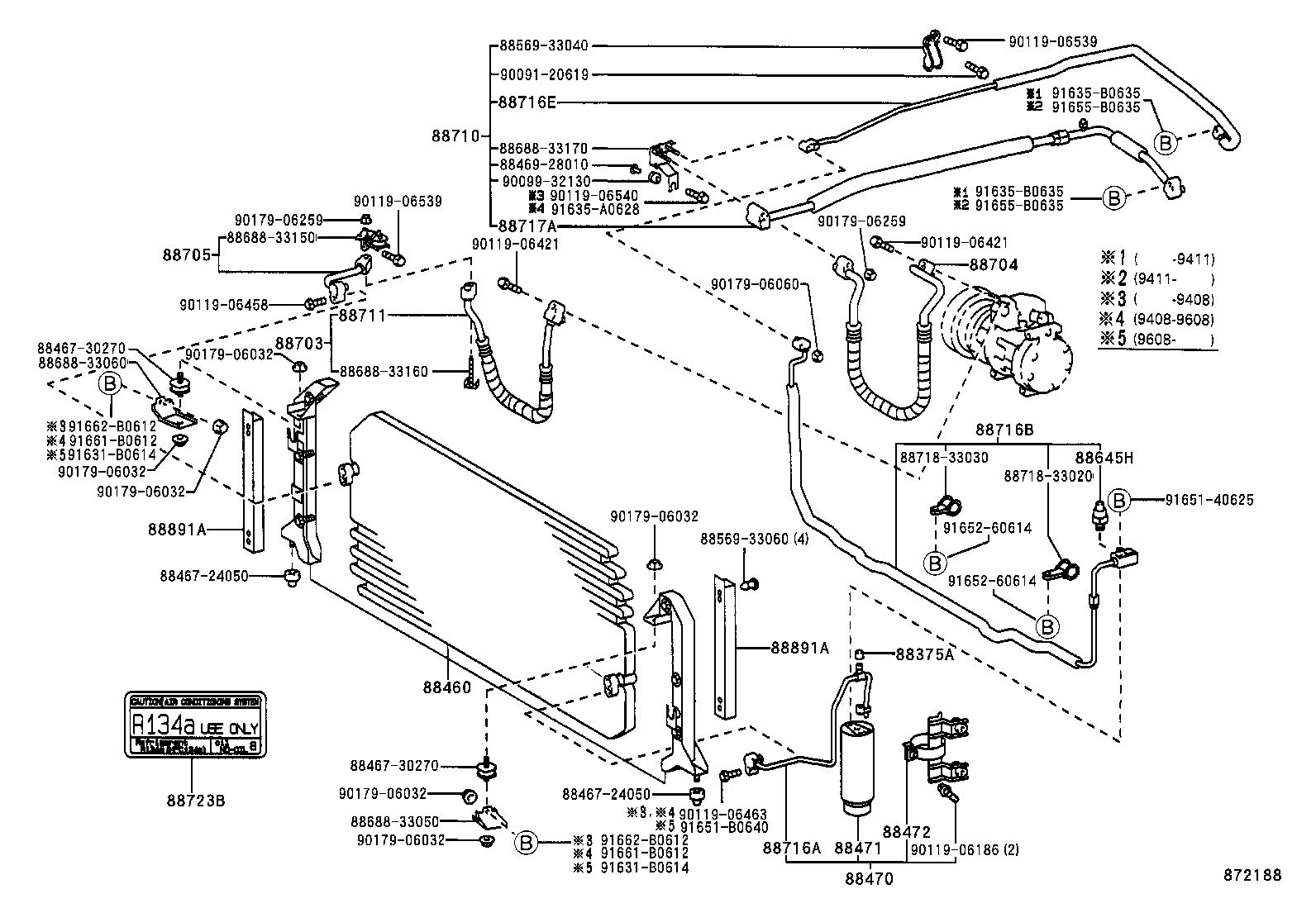

ILLUST NO. 1 OF 2(9408- )VCV10..JPP..LHD

Click highlighted areas on diagram

diagram 88375A 88460 8846724050 8846724050 8846730270 8846730270 8846928010 88470 88471 88472 8856933040 8856933060 88645H 8868833050 8868833060 8868833150 8868833160 8868833170 88703 88704 88705 88710 88711 88716A 88716B 88716E 88717A 8871833020 8871833030 88723B 88891A 88891A 9009120619 9009932130 9011906186 9011906421 9011906421 9011906458 9011906463 9011906539 9011906539 9011906540 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906060 9017906259 9017906259 91631B0614 91631B0614 91635A0628 91635B0635 91635B0635 9165140625 91651B0640 9165260614 9165260614 91655B0635 91655B0635 91661B0612 91661B0612 91662B0612 91662B0612
Part # Description Qty Price
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-20010

SXV1#,VCV10..JPP

 1
88460 - CONDENSER ASSY, COOLER
88460-33010

SXV1#,VCV10..JPP

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-33010

SXV1#,VCV10..JPP

 1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-50010

SXV1#,VCV10..JPP

 1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-33010

SXV1#,VCV10..JPP

 1
88473-33030

SXV1#,VCV10..JPP

 1
88645H - SWITCH, PRESSURE NO.1
88645-20040

SXV1#,VCV10..JPP

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-33040

VCV10..JPP

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-33040

VCV10..JPP..LHD

 1
88704-33100

VCV10..JPP..LHD

 1
88705 - PIPE SUB-ASSY, DISCHARGE
88705-33010

VCV10..JPP

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-33060

SXV10,VCV10..JPP..LHD

 1
88710-33040

SXV10,VCV10..JPP..LHD

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33060

VCV10..JPP..LHD

 1
88711-33060

VCV10..JPP

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-33040

SXV1#,VCV10..JPP

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-33030

SXV10,VCV10..JPP..LHD

 1
88716-33110

SXV10,VCV10..JPP..LHD

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-33100

SXV10,VCV10..JPP..LHD

 1
88716-33020

SXV10,VCV10..JPP..LHD

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33020

SXV10,VCV10..JPP..LHD

 1
88717-33080

SXV10,VCV10..JPP..LHD

 1
88723B - LABEL, COOLER SERVICE CAUTION
88723-24010

VCV10..JPP

SHROUD FAN

 1
88723-14010

SXV1#,VCV10..JPP

E/G HOOD

 1
Common parts
88467-24050
88467-30270
88469-28010
88569-33040
88569-33060
88688-33050
88688-33060
88688-33150
88688-33160
88688-33170
88718-33020
88718-33030
90091-20619
90099-32130
90119-06186
90119-06421
90119-06458
90119-06463
90119-06539
90119-06540
90179-06032
90179-06060
90179-06259
91631-B0614
91635-A0628
91635-B0635
91651-40625
91651-B0640
91652-60614
91655-B0635
91661-B0612
91662-B0612
