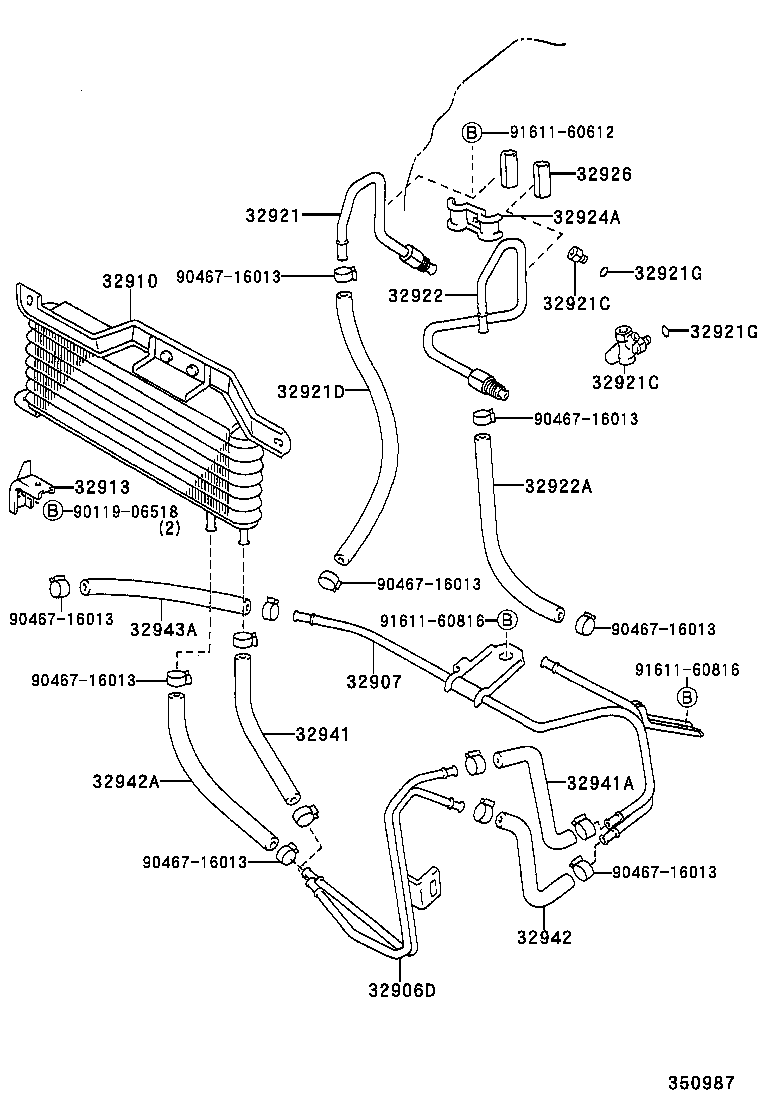

VCV10L-AEPNKV (1993)
Toyota Camry (Jpp/Sed)
(9208-9708)VCV10..JPP..ATM
A540E
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 32906D - TUBE SUB-ASSY, OIL COOLER, NO.2 | ||||
| 32907-33011 |
SXV1#,VCV10..JPP..ATM..(GL,SEI,SI) |
1 | ||
| 32907-33070 |
VCV10..JPP..LHD..ATM |
1 | ||
| 32907 - TUBE SUB-ASSY, OIL COOLER OUTLET, NO.2 | ||||
| 32907-33020 |
VCV10..JPP..LHD..ATM |
1 | ||
| 32910 - COOLER ASSY, OIL | ||||
| 32910-33010 |
SXV1#,VCV10..JPP..ATM..(GL,SEI,SI) |
1 | ||
| 32910-33020 |
VCV10..JPP..LHD..ATM |
1 | ||
| 32913 - BRACKET, OIL COOLER | ||||
| 32913-33010 |
VCV10..JPP..LHD..ATM |
1 | ||
| 32921 - TUBE, OIL COOLER INLET, NO.1 | ||||
| 32921-33030 |
VCV10..JPP..ATM |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
MCV10,SXV1#,VCV10..JPP..ATM INLET |
1 | ||
| 32901-32060 |
SXV1#,VCV10..JPP..ATM OUTLET |
1 | ||
| 32921C - UNION(FOR OIL COOLER TUBE) | ||||
| 90404-16031 |
MCV10,SXV1#,VCV10..JPP..ATM INLET |
1 | ||
| 32901-32060 |
SXV1#,VCV10..JPP..ATM OUTLET |
1 | ||
| 32921D - HOSE(FOR OIL COOLER INLET) | ||||
| 90445-17106 |
VCV10..JPP..ATM |
1 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCV10,SXV1#,VCV10..JPP..ATM |
2 | ||
| 32921G - RING, O(FOR OIL COOLER TUBE UNION) | ||||
| 90301-10189 |
MCV10,SXV1#,VCV10..JPP..ATM |
2 | ||
| 32922 - TUBE, OIL COOLER OUTLET, NO.1 | ||||
| 32922-33030 |
VCV10..JPP..ATM |
1 | ||
| 32922A - HOSE(FOR OIL COOLER OUTLET) | ||||
| 90445-17096 |
VCV10..JPP..ATM |
1 | ||
| 32924A - CLAMP(FOR OIL COOLER TUBE, NO.2) | ||||
| 90462-12074 |
MCV10,SXV1#,VCV10..JPP..ATM |
1 | ||
| 32926 - CUSHION, OIL COOLER TUBE(ATM) | ||||
| 32926-30020 |
SXV1#,VCV10..JPP..ATM..(GL,SEI,SI) L=35,ID=10 |
2 | ||
| 32926-30020 |
VCV10..JPP..LHD..ATM L=35,ID=10 |
1 | ||
| 32941 - HOSE, OIL COOLER INLET, NO.1 | ||||
| 32943-33070 |
VCV10..JPP..LHD..ATM |
1 | ||
| 90445-17069 |
SXV1#,VCV10..JPP..ATM..(GL,SEI,SI) |
1 | ||
| 32941A - HOSE, OIL COOLER INLET, NO.2 | ||||
| 32943-33031 |
SXV1#,VCV10..JPP..ATM |
1 | ||
| 32942 - HOSE, OIL COOLER OUTLET, NO.1 | ||||
| 32943-33041 |
SXV1#,VCV10..JPP..ATM |
1 | ||
| 32942A - HOSE, OIL COOLER OUTLET, NO.2 | ||||
| 90445-17110 |
SXV1#,VCV10..JPP..ATM..(GL,SEI,SI) |
1 | ||
| 32943-33080 |
VCV10..JPP..LHD..ATM |
1 | ||
| 32943A - HOSE, TRANSMISSION OIL COOLER, NO.2 | ||||
| 90445-17100 |
VCV10..JPP..ATM |
1 | ||
| Common parts | ||||
| 90119-06518 | ||||
| 90467-16013 | ||||
| 91611-60612 | ||||
| 91611-60816 | ||||
