VCV10L-AEPNKV (1993)

Toyota Camry (Jpp/Sed)

Production Aug 1993 - Aug 1996
Engine 3VZFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208-9708)VCV10..JPP..ATM ; (9708- )MCV10..JPP

Click highlighted areas on diagram

A540E,A541E

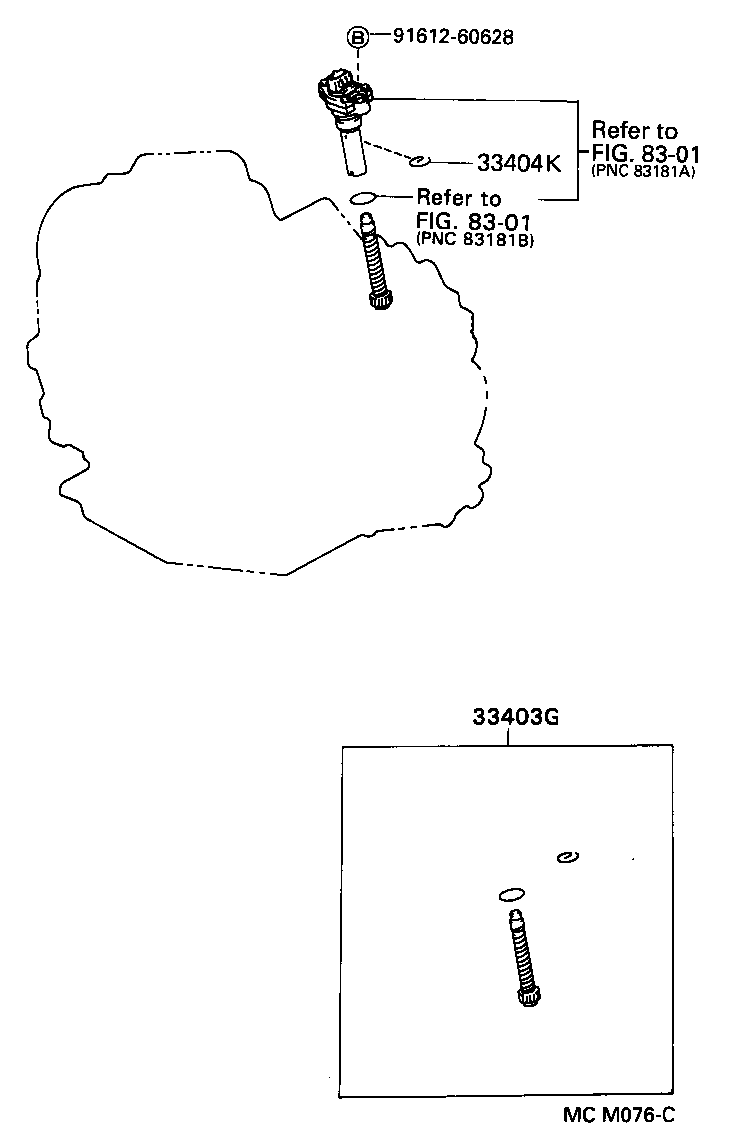

diagram 33403G 33404K 8301 8301 9161260628
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-39285

VCV10..JPP..ATM

N=24,MARK 24:30

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

MCV10,SXV1#,VCV10..JPP..ATM

 1
Common parts
91612-60628
Linked diagrams
8301
