VCV10L-AEPNKV (1993)
Toyota Camry (Jpp/Sed)
Production
Aug 1993
-
Aug 1996
Engine
3VZFE
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(9208-9708)3VZFE..JPP

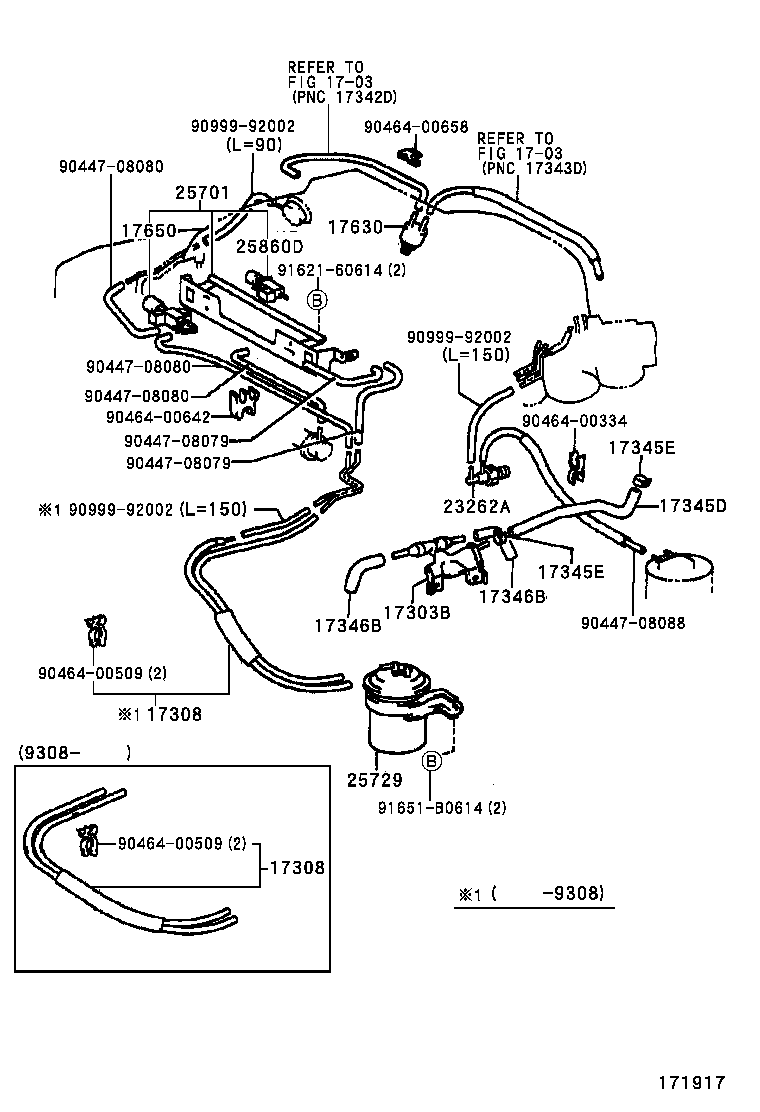

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17303B - PIPE SUB-ASSY, AIR, NO.1 | ||||
| 17303-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 17308 - HOSE SUB-ASSY, VACUUM(FOR IDLE-UP) | ||||
| 17308-62040 |
3VZFE..VCV10..JPP |
1 | ||
| 17345D - HOSE, AIR, NO.5 | ||||
| 17345-62011 |
3VZFE..VCV10..JPP |
1 | ||
| 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 17345E - CLAMP OR CLIP(FOR AIR HOSE, NO.5) | ||||
| 96135-41300 |
3VZFE..VCV10..JPP |
2 | ||
| 17346B - HOSE, AIR, NO.6 | ||||
| 17346-62010 |
3VZFE..VCV10..JPP |
2 | ||
| 17346B - HOSE, AIR, NO.6 | ||||
| 17346-62010 |
3VZFE..VCV10..JPP |
2 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-74010 |
3VZFE..VCV10..JPP |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 25860-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 23262A - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05068 |
3VZFE..VCV10..JPP..LHD |
1 | ||
| 25701 - VALVE SET, EMISSION CONTROL | ||||
| 25701-62010 |
3VZFE..VCV10..JPP |
1 | ||
| 25729 - TANK, VACUUM SURGE W/BRACKET | ||||
| 25729-62010 |
3VZFE..VCV10..JPP |
1 | ||
| Common parts | ||||
| 90447-08079 | ||||
| 90447-08080 | ||||
| 90447-08088 | ||||
| 90464-00334 | ||||
| 90464-00509 | ||||
| 90464-00642 | ||||
| 90464-00658 | ||||
| 90999-92002 | ||||
| 91621-60614 | ||||
| 91651-B0614 | ||||
| Linked diagrams | ||||
| 1703 | ||||
