VCV10L-AEMNKV (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Aug 1996
Engine 3VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )JPP

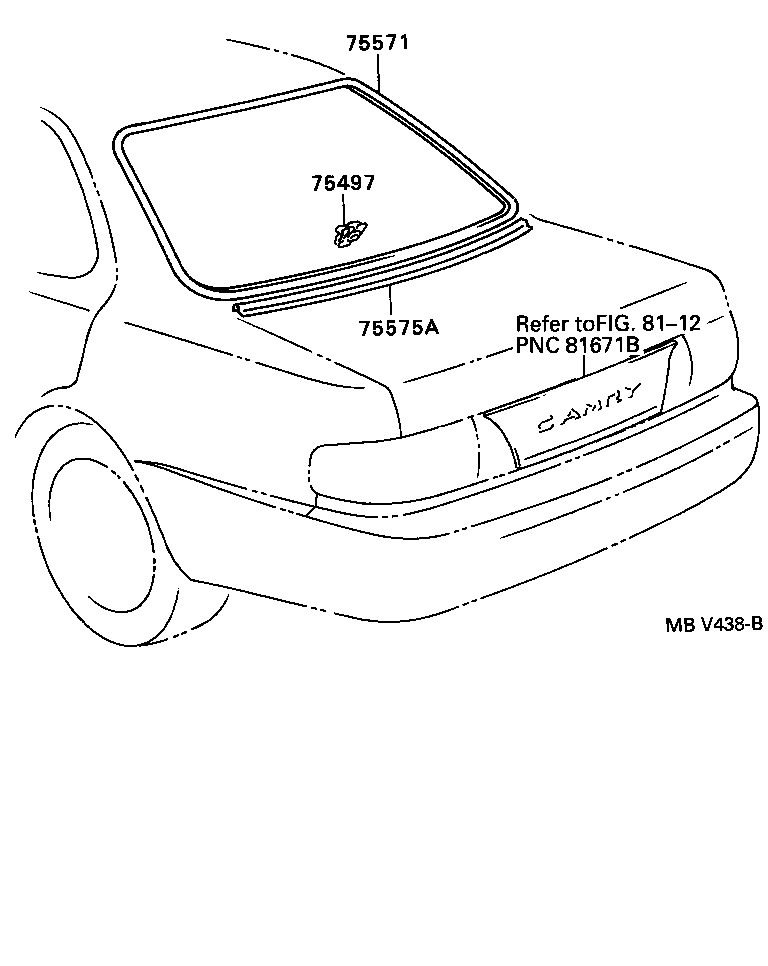

Click highlighted areas on diagram

diagram 75497 75571 75575A 8112
Part # Description Qty Price
75497 - CLIP, BACK WINDOW OUTSIDE MOULDING, NO.2
75497-32060

MCV10,SXV1#,VCV10..JPP

 5
75497-32060

SXV1#,VCV10..JPP

 7
75571 - MOULDING, BACK WINDOW, OUTSIDE UPPER
75571-33010

MCV10,SXV1#,VCV10..JPP

 1
75575A - MOULDING, BACK WINDOW, OUTSIDE LOWER
75575-33010

MCV10,SXV1#,VCV10..JPP

 1
Linked diagrams
8112
