VCV10L-AEMGKV (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Aug 1996
Engine 3VZFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )JPP..LHD

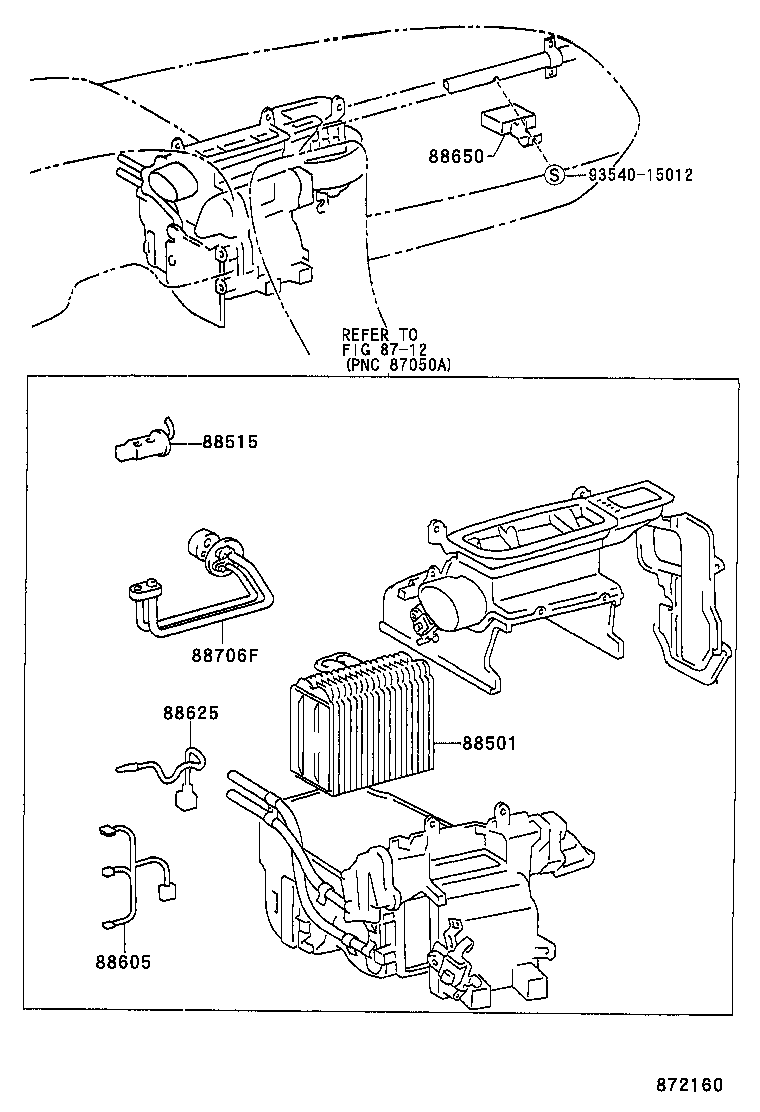

Click highlighted areas on diagram

diagram 8712 88501 88515 88605 88625 88650 88706F 9354015012
Part # Description Qty Price
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-33010

SXV1#,VCV10..JPP..(GD,GL,I,LUM,SI)

 1
88501-33040

SXV1#,VCV10..JPP

 1
88515 - VALVE, COOLER EXPANSION
88515-14062

SXV10,VCV10..JPP..LHD

*ND

 1
88515-14062

SXV1#,VCV10..JPP..(GD,GL,I,LUM,SI)

 1
88515-06030

SXV10,VCV10..JPP..LHD

*ND USA

 1
88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1
88605-33020

VCV10..JPP..LUM

 1
88625 - THERMISTOR, COOLER, NO.1
88625-33070

SXV10,VCV10..JPP..LHD

 1
88625-33120

VCV10..JPP..(GD,LUM)

 1
88650 - AMPLIFIER ASSY, COOLER STABILIZER
88650-33010

VCV10..JPP..LHD

 1
88706F - TUBE SUB-ASSY, LIQUID, F
88716-33140

SXV10,VCV10..JPP..LHD

 1
88706-33020

SXV10,VCV10..JPP..LHD

 1
Common parts
93540-15012
Linked diagrams
8712
