SXV11R-AEMDKN (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Apr 2001
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )SXV1#..JPP

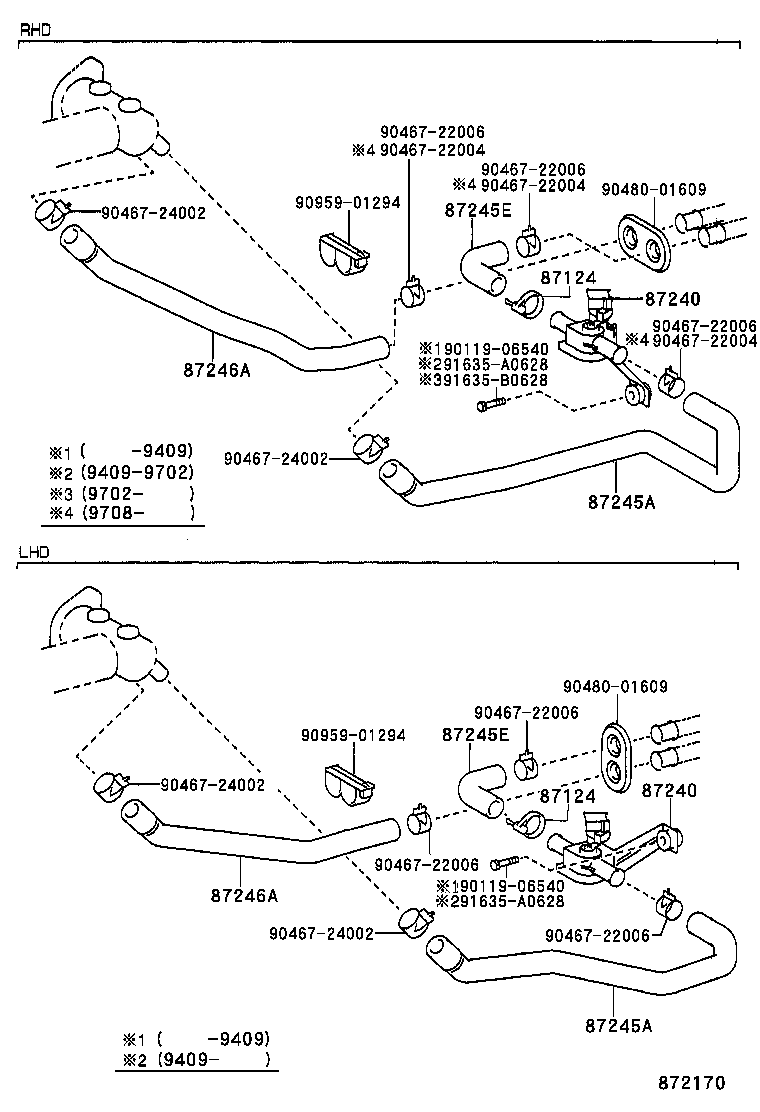

Click highlighted areas on diagram

diagram 87124 87124 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 9011906540 9011906540 9046722004 9046722004 9046722004 9046722006 9046722006 9046722006 9046722006 9046722006 9046722006 9046724002 9046724002 9046724002 9046724002 9048001609 9048001609 9095901294 9095901294 91635A0628 91635A0628 91635B0628
Part # Description Qty Price
87124 - CLAMP, HEATER
87124-28030

SXV1#,VCV10..JPP

 1
90467-22006

SXV1#,VCV10..JPP

 1
90467-22004

MCV10,SXV1#,VCV10..JPP

 1
87124 - CLAMP, HEATER
87124-28030

SXV1#,VCV10..JPP

 1
90467-22006

SXV1#,VCV10..JPP

 1
90467-22004

MCV10,SXV1#,VCV10..JPP

 1
87240 - VALVE ASSY, HEATER WATER
87240-33020

MCV10,SXV1#,VCV10..JPP..RHD

 1
87240 - VALVE ASSY, HEATER WATER
87240-33020

MCV10,SXV1#,VCV10..JPP..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-33190

SXV1#..JPP

 1
87245-33060

SXV1#..JPP..RHD

 1
87245A - HOSE, HEATER WATER, INLET A
87245-33190

SXV1#..JPP

 1
87245-33060

SXV1#..JPP..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-33100

MCV10,SXV1#,VCV10..JPP..RHD

 1
87245E - HOSE, HEATER WATER, INLET E
87245-33100

MCV10,SXV1#,VCV10..JPP..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-33200

SXV1#..JPP

 1
87245-33050

SXV1#..JPP..RHD

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-33200

SXV1#..JPP

 1
87245-33050

SXV1#..JPP..RHD

 1
Common parts
90119-06540
90467-22004
90467-22006
90467-24002
90480-01609
90959-01294
91635-A0628
91635-B0628
