SXV11R-AEMDKN (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Apr 2001
Engine 3SFE
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )JPP

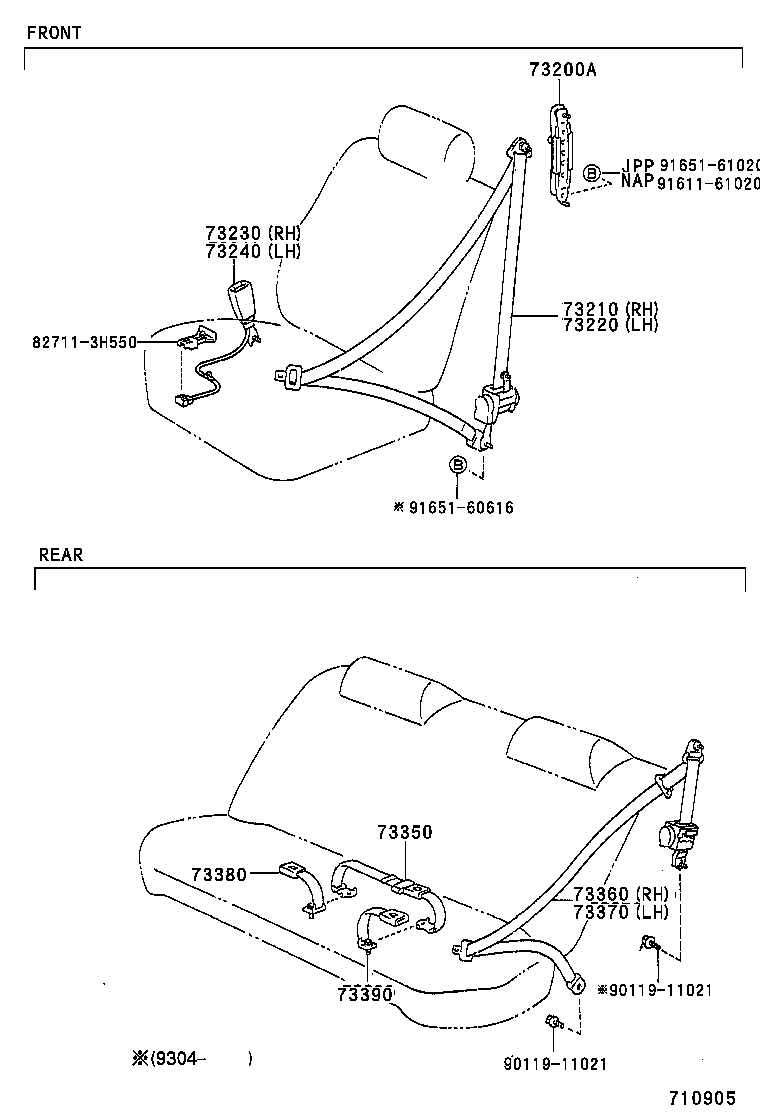

Click highlighted areas on diagram

diagram 73200A 73210 73220 73230 73240 73350 73360 73370 73380 73390 827113H550 9011911021 9011911021 9161161020 9165160616 9165161020
Part # Description Qty Price
73200A - ADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
73200-32050E0

SXV1#,VCV10..JPP

OAK,TRIM4#

 2
73200-32050B0

SXV1#,VCV10..JPP

MI.GRAY,TRIM1#,TOKAIRIKA

 2
73200-06010E0

SXV1#,VCV10..JPP

OAK,TRIM4#,QSS

 2
73200-32050E0

SXV1#,VCV10..JPP

OAK,TRIM4#,TOKAIRIKA

 2
73200-32050B0

SXV1#,VCV10..JPP

MI.GRAY,TRIM1#

 2
73200-06010B0

SXV1#,VCV10..JPP

MEDIUM GRAY,TRIM1#,QSS

 2
73210 - BELT ASSY, FRONT SEAT OUTER, RH
73210-33041E0

SXV1#,VCV10..JPP..RHD

OAK,TRIM4#

 2
73220 - BELT ASSY, FRONT SEAT OUTER, LH
73220-33041B0

SXV1#,VCV10..JPP..RHD

MEDIUM GRAY,TRIM1#

 1
73230 - BELT ASSY, FRONT SEAT INNER, RH
73230-33061E0

SXV1#,VCV10..JPP..RHD

OAK,TRIM4#

 1
73240 - BELT ASSY, FRONT SEAT INNER, LH
73230-33061E0

SXV1#,VCV10..JPP..RHD

OAK,TRIM4#

 1
73360 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER RH
73360-33032E0

SXV1#,VCV10..JPP..RHD

OAK

 1
73370 - BELT ASSY, REAR SEAT 3 POINT TYPE, OUTER LH
73370-33032E0

SXV1#,VCV10..JPP..RHD

OAK

 1
73380 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, RH
73380-33030E0

SXV1#,VCV10..JPP..RHD

OAK,TRIM4#

 1
73390 - BELT ASSY, REAR SEAT 3 POINT TYPE, INNER, LH
73480-33040E0

SXV1#,VCV10..JPP..RHD

OAK,TRIM4#

 1
Common parts
82711-3H550
90119-11021
91611-61020
91651-60616
91651-61020
