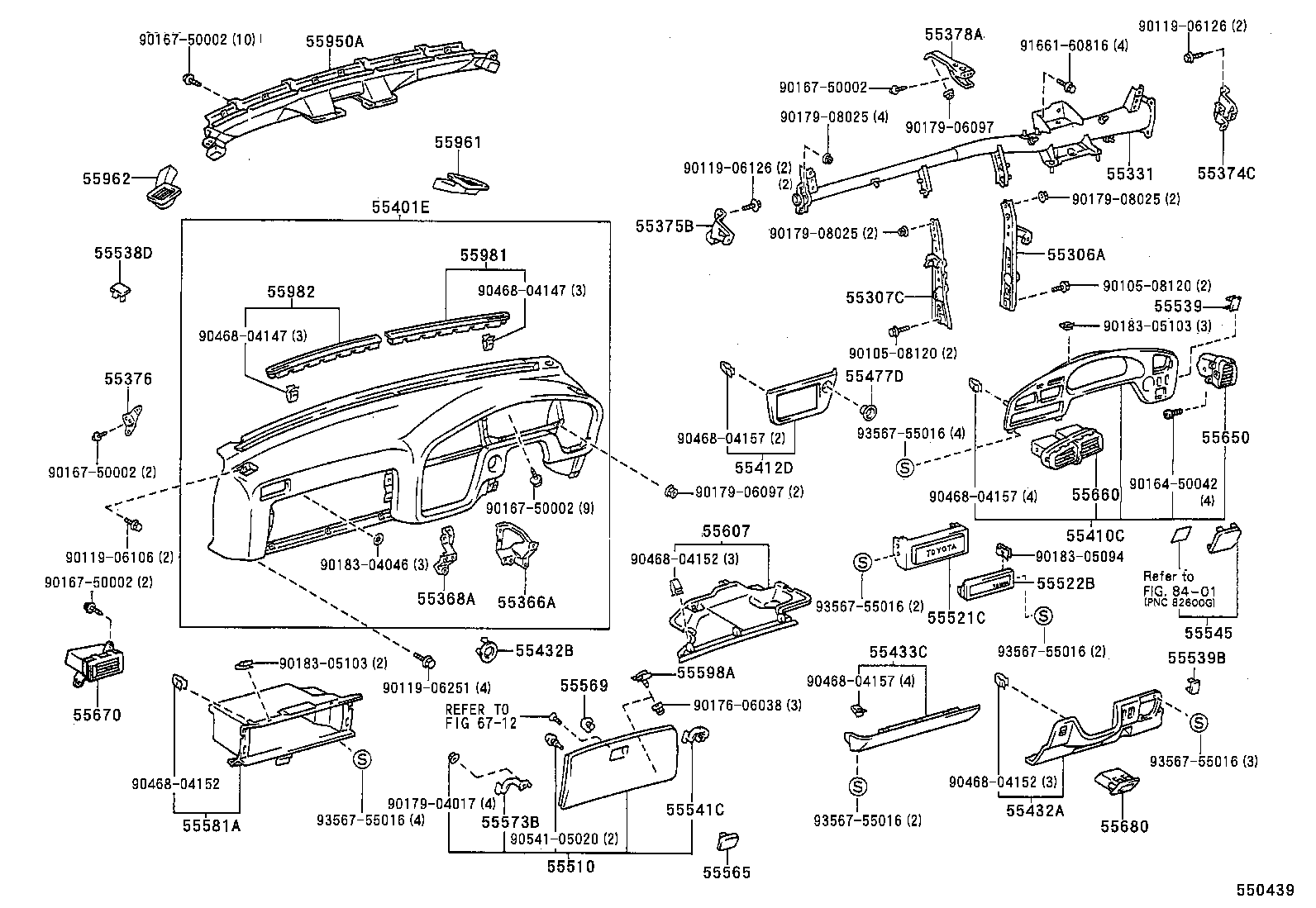

SXV11R-AEMDKN (1992)
Toyota Camry (Jpp/Sed)
(9208- )JPP..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-33071 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 55330-33070 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 55366A - BRACKET, RADIO MOUNTING, NO.1 | ||||
| 55366-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55368A - BRACKET, RADIO MOUNTING, NO.2 | ||||
| 55368-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55374C - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1 | ||||
| 55374-33020 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 55375B - BRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2 | ||||
| 55375-33020 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 55376 - BRACKET, INSTRUMENT PANEL MOUNTING, NO.1 | ||||
| 55376-33020 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 55378A - BRACKET, GLOVE COMPARTMENT DOOR LOCK MOUNTING | ||||
| 55308-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 55401E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY | ||||
| 55401-33021B0 |
MCV10,SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55401-33021E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-33030 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 55410-33031 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55412D - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55412-33050 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55432A - PANEL, INSTRUMENT PANEL FINISH, LOWER RH | ||||
| 55045-33011E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55045-33011B0 |
MCV10,SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55045-33010E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55432B - PANEL, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55480-33030 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55433C - PANEL, INSTRUMENT PANEL FINISH, LOWER LH | ||||
| 55303-33020E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55303-33020B0 |
MCV10,SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55477D - COVER, CIGARETTE LIGHTER HOLE | ||||
| 55477-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-33020E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55550-33020B0 |
MCV10,SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55022-17010 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55522B - COVER, RADIO TUNER OPENING | ||||
| 55522-32010 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55538D - COVER, SUNSHINE SENSOR HOLE | ||||
| 55538-33020 |
SXV1#..JPP..(I,SI) |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55548-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55539B - COVER, SPARE SWITCH HOLE, NO.2 | ||||
| 55539-20080E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55539-20080B0 |
MCV10,SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55541C - ARM, GLOVE COMPARTMENT HINGE, RH | ||||
| 55541-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55458-33080B0 |
MCV10,SXV1#..JPP MD.GRAY,TRIM1# |
1 | ||
| 55458-33020E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55458-33020S4 |
SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55565 - HANDLE, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55565-22020B0 |
MCV10,SXV1#,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 55565-22020E1 |
SXV1#,VCV10..JPP OAK,TRIM4# |
1 | ||
| 55569 - COVER, GLOVE COMPARTMENT DOOR LOCK | ||||
| 55569-22030B0 |
MCV10,SXV1#,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 55569-22030E1 |
SXV1#,VCV10..JPP OAK,TRIM4# |
1 | ||
| 55573B - ARM, GLOVE COMPARTMENT DOOR CHECK, LH | ||||
| 55542-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 55581A - COMPARTMENT, GLOVE | ||||
| 55581-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55598A - BRACKET, GLOVE COMPARTMENT DOOR HINGE | ||||
| 55598-33010 |
MCV10,SXV1#,VCV10..JPP |
3 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-33030 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55670 - REGISTER ASSY, INSTRUMENT PANEL, NO.3 | ||||
| 55670-33020B0 |
SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55670-33020E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55670-33021B0 |
MCV10,SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55670-33021E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55680 - REGISTER ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 55680-33010E0 |
SXV1#,VCV10..JPP OAK,TRIM4# |
1 | ||
| 55680-33010C0 |
MCV10,SXV1#,VCV10..JPP..RHD BLACK,TRIM1# |
1 | ||
| 55680-33010S4 |
SXV1#,VCV10..JPP MEDIUM GRAY,TRIM1# |
1 | ||
| 55680-33010C0 |
SXV1#,VCV10..JPP BLACK,TRIM1#,4# |
1 | ||
| 55950A - NOZZLE ASSY, DEFROSTER | ||||
| 55950-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 55961 - NOZZLE, SIDE DEFROSTER, NO.1 | ||||
| 55961-33020E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55961-33020B0 |
MCV10,SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55962 - NOZZLE, SIDE DEFROSTER, NO.2 | ||||
| 55962-33020B0 |
MCV10,SXV1#,VCV10..JPP..RHD MEDIUM GRAY,TRIM1# |
1 | ||
| 55962-33020E0 |
SXV1#,VCV10..JPP..RHD OAK,TRIM4# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| Common parts | ||||
| 90105-08120 | ||||
| 90119-06106 | ||||
| 90119-06126 | ||||
| 90119-06251 | ||||
| 90164-50042 | ||||
| 90167-50002 | ||||
| 90176-06038 | ||||
| 90179-04017 | ||||
| 90179-06097 | ||||
| 90179-08025 | ||||
| 90183-04046 | ||||
| 90183-05094 | ||||
| 90183-05103 | ||||
| 90468-04147 | ||||
| 90468-04152 | ||||
| 90468-04157 | ||||
| 90541-05020 | ||||
| 91661-60816 | ||||
| 93567-55016 | ||||
| Linked diagrams | ||||
| 6712 | ||||
