SXV11R-AEMBKN (1992)
Toyota Camry (Jpp/Sed)

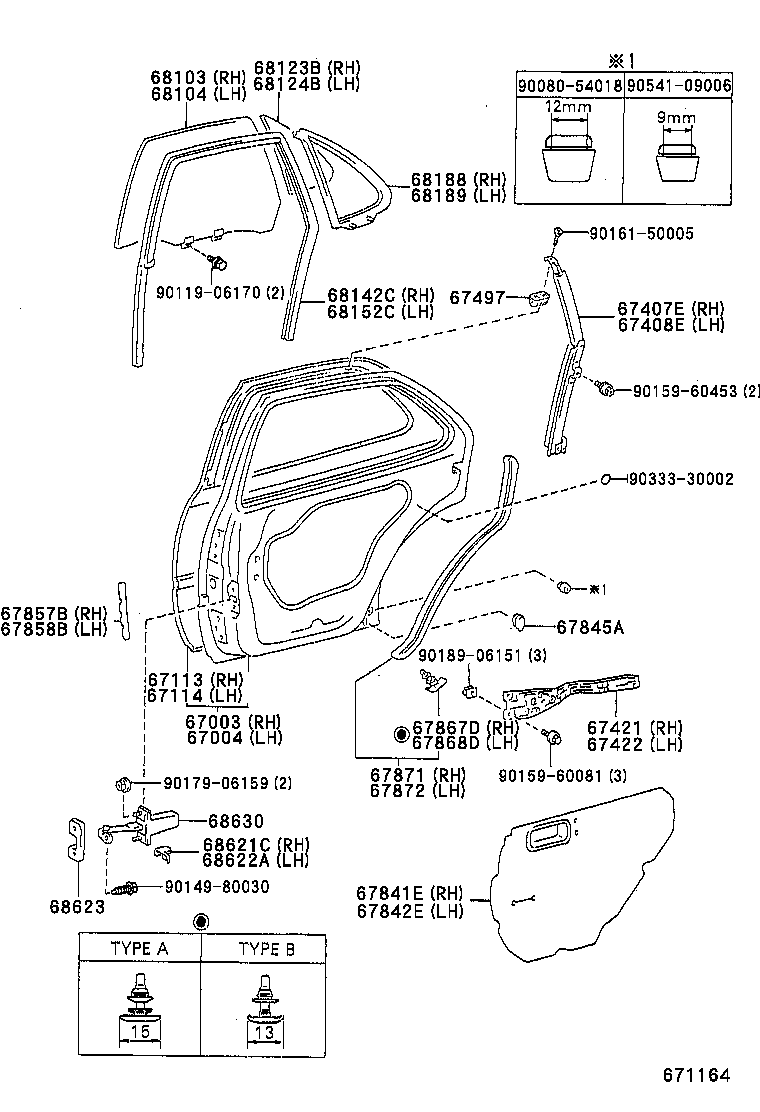

ILLUST NO. 2 OF 2(9208- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67407E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH | ||||
| 67407-32060 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 67408E - BAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH | ||||
| 67408-32060 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 67421 - FRAME, REAR DOOR WINDOW, FRONT UPPER RH | ||||
| 67421-32050 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 67422 - FRAME, REAR DOOR WINDOW, FRONT UPPER LH | ||||
| 67422-32050 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 67497 - BRACKET, REAR DOOR FRAME | ||||
| 67497-33020 |
MCV10,SXV1#,VCV10..JPP |
2 | ||
| 67841E - COVER, REAR DOOR SERVICE HOLE, RH | ||||
| 67841-32100 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 67842E - COVER, REAR DOOR SERVICE HOLE, LH | ||||
| 67842-32070 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 67845A - SUB-SHEET, REAR DOOR SERVICE HOLE | ||||
| 67845-32010 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 67845-32010 |
SXV1#,VCV10..JPP..(I,LUM,SEI,SI,XL) |
1 | ||
| 67845-32010 |
SXV1#,VCV10..JPP |
3 | ||
| 67845-32010 |
SXV1#,VCV10..JPP |
4 | ||
| 67845-32010 |
MCV10,SXV1#..JPP |
1 | ||
| 67867D - RETAINER, REAR DOOR WEATHERSTRIP, RH | ||||
| 67867-12150 |
MCV10,SXV1#,VCV10..JPP TYPE A |
7 | ||
| 67868-22020 |
SXV1#,VCV10..JPP TYPE A |
7 | ||
| 67868-30050 |
MCV10,SXV1#,VCV10..JPP TYPE B |
1 | ||
| 67868D - RETAINER, REAR DOOR WEATHERSTRIP, LH | ||||
| 67868-22020 |
SXV1#,VCV10..JPP TYPE A |
7 | ||
| 67868-30050 |
MCV10,SXV1#,VCV10..JPP TYPE B |
1 | ||
| 67867-12150 |
MCV10,SXV1#,VCV10..JPP TYPE A |
7 | ||
| 67871 - WEATHERSTRIP, REAR DOOR, RH | ||||
| 67871-32090 |
SXV1#,VCV10..JPP |
1 | ||
| 67871-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 67872 - WEATHERSTRIP, REAR DOOR, LH | ||||
| 67872-33020 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 67872-32090 |
SXV1#,VCV10..JPP |
1 | ||
| 68103 - GLASS SUB-ASSY, REAR DOOR, RH | ||||
| 68103-32110 |
SXV1#,VCV10..JPP *TT,T=3.5,BLUE |
1 | ||
| 68104 - GLASS SUB-ASSY, REAR DOOR, LH | ||||
| 68104-32110 |
SXV1#,VCV10..JPP *TT,T=3.5,BLUE |
1 | ||
| 68123B - GLASS, REAR DOOR QUARTER WINDOW, RH | ||||
| 68123-32010 |
SXV1#,VCV10..JPP *TT,T=3.5,BLUE |
1 | ||
| 68124B - GLASS, REAR DOOR QUARTER WINDOW, LH | ||||
| 68124-32010 |
SXV1#,VCV10..JPP *TT,T=3.5,BLUE |
1 | ||
| 68142C - RUN, REAR DOOR GLASS, RH | ||||
| 68142-32060 |
SXV1#,VCV10..JPP |
1 | ||
| 68142-33020 |
SXV11..JPP;SXV10..JPP..MTM..SI |
1 | ||
| 68142-33040 |
SXV1#..JPP..(I,SI) |
1 | ||
| 68142-32060 |
SXV11..JPP..I W(POWER WINDOW) |
1 | ||
| 68142-33040 |
SXV11..JPP;SXV10..JPP..MTM..SI |
1 | ||
| 68152C - RUN, REAR DOOR GLASS, LH | ||||
| 68152-33040 |
SXV1#..JPP..(I,SI) |
1 | ||
| 68152-33020 |
SXV11..JPP;SXV10..JPP..MTM..SI |
1 | ||
| 68152-32020 |
SXV1#,VCV10..JPP |
1 | ||
| 68152-33040 |
SXV11..JPP;SXV10..JPP..MTM..SI |
1 | ||
| 68152-32020 |
SXV11..JPP..I W(POWER WINDOW) |
1 | ||
| 68188 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH | ||||
| 68188-32010 |
SXV1#,VCV10..JPP |
1 | ||
| 68188-32011 |
MCV10,SXV1#..JPP |
1 | ||
| 68188-32010 |
SXV1#,VCV10..JPP |
1 | ||
| 68188-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 68189 - WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH | ||||
| 68189-32010 |
SXV1#,VCV10..JPP |
1 | ||
| 68189-32010 |
SXV1#,VCV10..JPP |
1 | ||
| 68189-32011 |
MCV10,SXV1#..JPP |
1 | ||
| 68189-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 68621C - COVER, REAR DOOR CHECK, RH | ||||
| 68621-32010 |
SXV1#,VCV10..JPP |
1 | ||
| 68622A - COVER, REAR DOOR CHECK, LH | ||||
| 68622-32010 |
SXV1#,VCV10..JPP |
1 | ||
| 68623 - COVER, DOOR CHECK, RH | ||||
| 68623-32010 |
SXV1#,VCV10..JPP |
2 | ||
| 68630 - CHECK ASSY, REAR DOOR | ||||
| 68640-32040 |
SXV1#,VCV10..JPP LH |
1 | ||
| 68630-32050 |
SXV1#,VCV10..JPP W(DOOR CHECK COVER),RH |
1 | ||
| 68630-33011 |
SXV1#,VCV10..JPP RH |
1 | ||
| 68640-33011 |
SXV1#,VCV10..JPP LH |
1 | ||
| Common parts | ||||
| 90080-54018 | ||||
| 90119-06170 | ||||
| 90149-80030 | ||||
| 90159-60081 | ||||
| 90159-60453 | ||||
| 90161-50005 | ||||
| 90179-06159 | ||||
| 90189-06151 | ||||
| 90333-30002 | ||||
| 90541-09006 | ||||

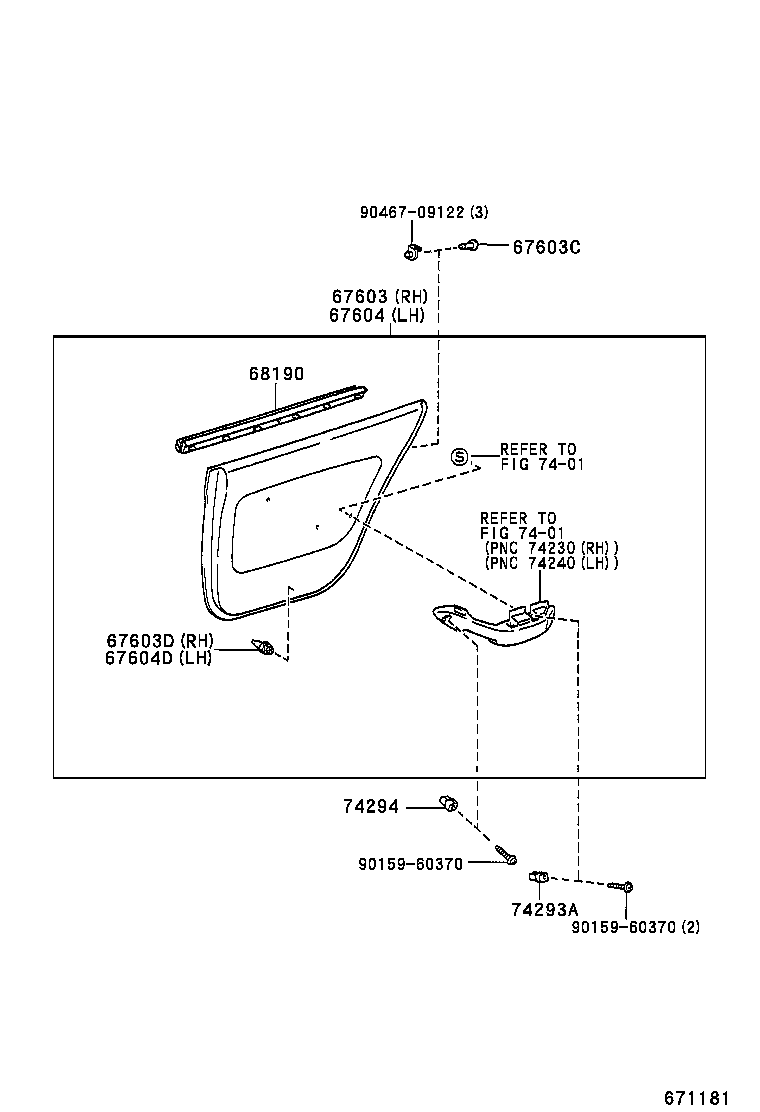

ILLUST NO. 1 OF 2(9208- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 67603 - BOARD SUB-ASSY, REAR DOOR TRIM, RH | ||||
| 67630-3311003 |
SXV1#..JPP..(I,SI) MEDIUM GRAY,TRIM1# |
1 | ||
| 67630-33110E0 |
SXV1#..JPP..(I,SI) OAK,TRIM4# |
1 | ||
| 67603C - CAP(FOR REAR DOOR TRIM BOARD) | ||||
| 90467-07066E0 |
SXV1#,VCV10..JPP OAK,TRIM4# |
6 | ||
| 90467-07066B0 |
MCV10,SXV1#,VCV10..JPP MEDIUM GRAY,TRIM1# |
6 | ||
| 67603D - RETAINER, REAR DOOR TRIM, RH | ||||
| 67771-32140 |
MCV10,SXV1#,VCV10..JPP |
3 | ||
| 67604 - BOARD SUB-ASSY, REAR DOOR TRIM, LH | ||||
| 67640-33110E0 |
SXV1#..JPP..(I,SI) OAK,TRIM4# |
1 | ||
| 67640-3311003 |
SXV1#..JPP..(I,SI) MEDIUM GRAY,TRIM1# |
1 | ||
| 67604D - RETAINER, REAR DOOR TRIM, LH | ||||
| 67771-32140 |
MCV10,SXV1#,VCV10..JPP |
3 | ||
| 68190 - WEATHERSTRIP ASSY, REAR DOOR GLASS, INNER | ||||
| 68190-33020 |
MCV10,SXV1#,VCV10..JPP RH |
1 | ||
| 68240-33020 |
MCV10,SXV1#,VCV10..JPP LH |
1 | ||
| 74293A - PLATE, REAR DOOR ARMREST, NO.1 | ||||
| 74293-32010 |
SXV1#..JPP..(I,SI) |
4 | ||
| 74294 - PLATE, REAR DOOR ARMREST, NO.2 | ||||
| 74294-32010 |
MCV10,SXV1#,VCV10..JPP |
2 | ||
| Common parts | ||||
| 90159-60370 | ||||
| 90467-09122 | ||||
| Linked diagrams | ||||
| 7401 | ||||
