SXV10R-AEPNKN (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Apr 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )SXV1#..JPP..RHD

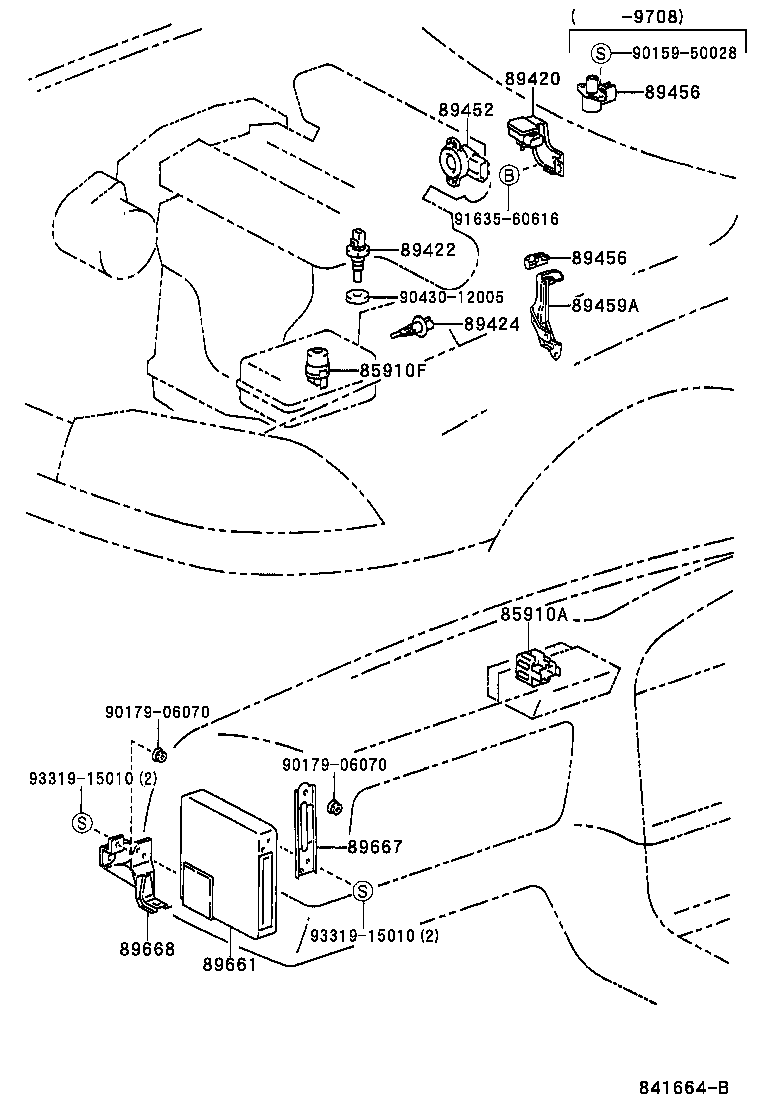

Click highlighted areas on diagram

diagram 85910A 85910F 89420 89422 89424 89452 89456 89456 89459A 89661 89667 89668 9015950028 9017906070 9017906070 9043012005 9163560616 9331915010 9331915010
Part # Description Qty Price
85910A - RELAY ASSY, CIRCUIT OPENING (FOR EFI)
85910-33010

SXV1#..JPP

 1
85910F - RELAY, COMPUTER (FOR EFI)
90987-02004

SXV1#,VCV10..JPP..RHD

 1
90987-02009

MCV10,SXV1#..JPP

MARUKO

 1
90987-02012

MCV10,SXV1#..JPP

DENSO

 1
90987-02004

SXV1#,VCV10..JPP

 1
89420 - SENSOR ASSY, VACUUM
89420-06010

SXV1#..JPP

NIPPONDENSO USA

 1
89420-33010

SXV1#..JPP

NIPPONDENSO

 1
89422 - SENSOR, WATER TEMPERATURE (FOR E.F.I.)
89422-20010

SXV1#,VCV10..JPP

 1
89424 - SENSOR, INLET AIR TEMPERATURE (FOR E.F.I.)
89424-12010

SXV1#..JPP

 1
89452 - SENSOR, THROTTLE POSITION (FOR E.F.I.)
89452-06020

SXV1#..JPP

CTS

 1
89452-22090

SXV1#..JPP

 1
89452-22090

SXV1#..JPP

NIPPONDENSO

 1
89452-33030

SXV1#..JPP

AISAN

 1
89452-33010

SXV1#..JPP

 1
89456 - RESISTOR, VARIABLE
89456-30010

MCV10,SXV1#..JPP

 1
89456-50010

SXV1#..JPP

 1
89456 - RESISTOR, VARIABLE
89456-30010

MCV10,SXV1#..JPP

 1
89456-50010

SXV1#..JPP

 1
89459A - BRACKET, VARIABLE RESISTOR
89459-33010

SXV1#..JPP

 1
89661 - COMPUTER, ENGINE CONTROL
89661-33240

SXV10..JPP..ATM

 1
89661-33510

SXV10..JPP..ATM

 1
89661-3T240

SXV10..JPP..ATM

 1
89661-33540

SXV10..JPP..RHD..ATM

 1
89667 - BRACKET, ENGINE CONTROL COMPUTER
89667-33030

SXV1#..JPP..RHD

 1
89668 - BRACKET, ENGINE CONTROL COMPUTER, NO.2
89668-33020

SXV1#..JPP..RHD

 1
89668-33100

SXV1#..JPP

 1
Common parts
90159-50028
90179-06070
90430-12005
91635-60616
93319-15010
