SXV10R-AEPNKN (1992)
Toyota Camry (Jpp/Sed)
ILLUST NO. 2 OF 2(9208- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 77251-33010 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-33020 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 77259-33040 |
SXV1#,VCV10..JPP |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77262-33010 |
MCV10,SXV1#..JPP |
1 | ||
| 77266A - PROTECTOR, FUEL TUBE, NO.1 | ||||
| 77266-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77267A - PROTECTOR, FUEL TUBE, NO.2 | ||||
| 77267-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77273A - CLAMP, FUEL TUBE W/GROMMET, NO.6 | ||||
| 77273-33020 |
SXV1#,VCV10..JPP..RHD |
1 | ||
| 77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1) | ||||
| 90447-12085 |
SXV1#..JPP L=320 |
1 | ||
| 90447-12141 |
SXV1#..JPP L=320 |
1 | ||
| 77285B - CLAMP, FUEL TUBE W/GROMMET, NO.1 | ||||
| 77285-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77289A - CLAMP, FUEL TUBE W/GROMMET, NO.3 | ||||
| 77289-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77298 - CLAMP, FUEL TUBE W/GROMMET, NO.4 | ||||
| 77298-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77299 - CLAMP, FUEL TUBE W/GROMMET, NO.5 | ||||
| 77299-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77412 - SUPPORT, FUEL TUBE GROMMET, NO.2 | ||||
| 77412-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77413A - SUPPORT, FUEL TUBE GROMMET, NO.3 | ||||
| 77413-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77414 - SUPPORT, FUEL TUBE GROMMET, NO.4 | ||||
| 77414-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77415 - SUPPORT, FUEL TUBE GROMMET, NO.5 | ||||
| 77415-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77416 - SUPPORT, FUEL TUBE GROMMET, NO.6 | ||||
| 77416-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77417 - SUPPORT, FUEL TUBE GROMMET, NO.7 | ||||
| 77417-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77417-33010 |
SXV1#,VCV10..JPP |
2 | ||
| Common parts | ||||
| 90119-06450 | ||||
| 90179-06219 | ||||
| 90402-14004 | ||||
| 90464-00082 | ||||
| 90464-00395 | ||||
| 90467-11009 | ||||
| 90467-12001 | ||||
| 90467-12056 | ||||
| 90467-13058 | ||||
| 90480-15023 | ||||
| 90917-10079 | ||||
| 90949-01499 | ||||
| 91611-60616 | ||||
| 91651-60614 | ||||
| 94110-40600 | ||||
| 96132-30600 | ||||
| 96132-41100 | ||||

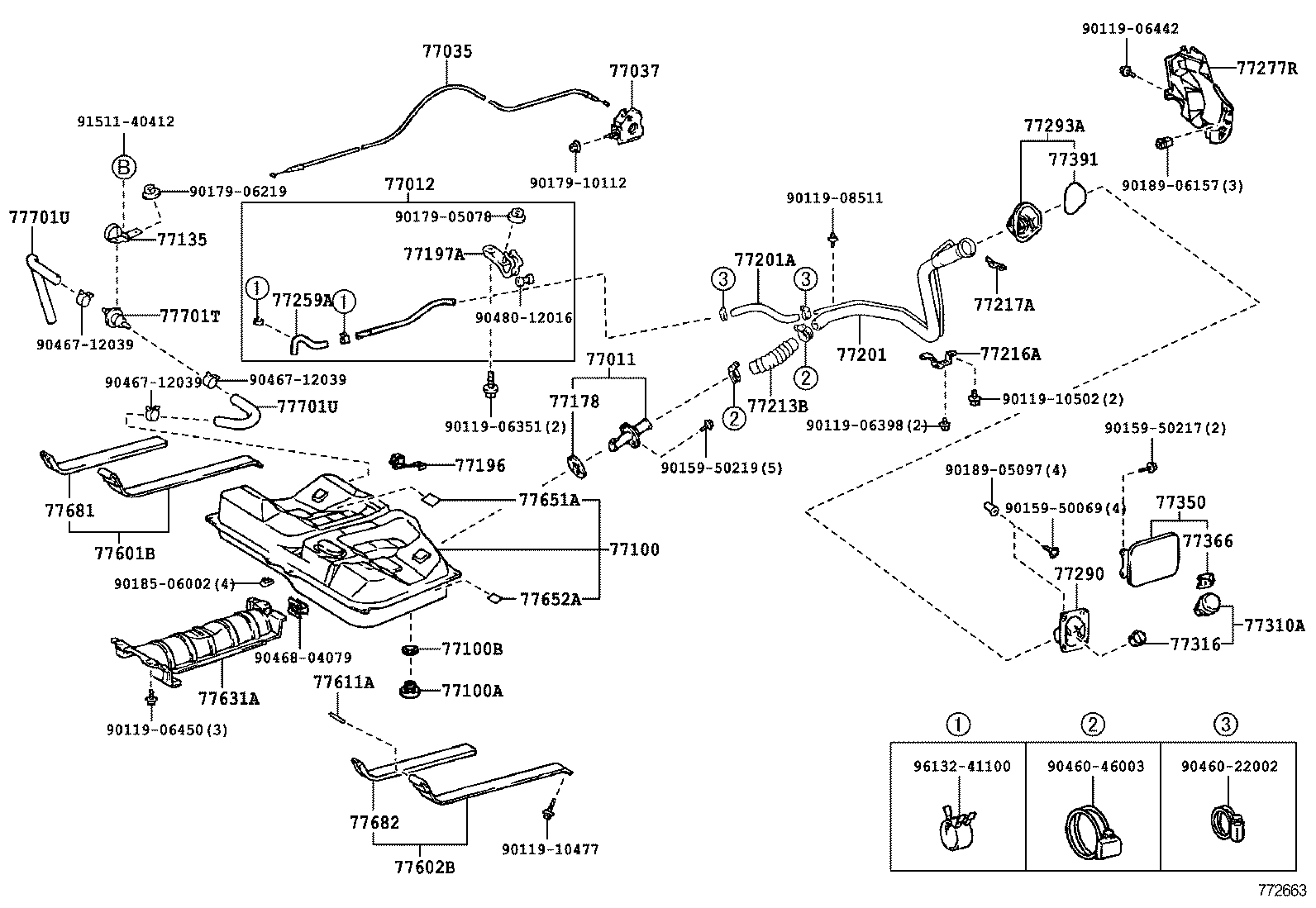

ILLUST NO. 1 OF 2(9208- )JPP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER | ||||
| 77011-10050 |
SXV1#,VCV10..JPP |
1 | ||
| 77011-41010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77012-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 77028-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 77012-33010 |
VCV10..JPP;SXV1#..JPP..RHD |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-33030 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 77037 - LOCK SUB-ASSY, FUEL FILLER OPENING LID | ||||
| 77037-32020 |
SXV1#,VCV10..JPP |
1 | ||
| 77037-14020 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-39325 |
SXV1#,VCV10..JPP |
1 | ||
| 77100A - PLUG(FOR FUEL TANK) | ||||
| 90341-20004 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77100B - GASKET(FOR FUEL TANK) | ||||
| 90430-20007 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77135 - BRACKET, CHECK VALVE | ||||
| 77135-33010 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 77178 - GASKET, FUEL TANK FILLER PIPE, LOWER | ||||
| 77178-20030 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77196 - CLAMP, EVAPORATION VENT TUBE, NO.1 | ||||
| 77196-33020 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77197A - CLAMP, EVAPORATION VENT TUBE, NO.2 | ||||
| 77197-33020 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-32130 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77201A - HOSE, FUEL, NO.1(FOR FUEL TANK INLET PIPE) | ||||
| 90445-22024 |
MCV10,SXV1#..JPP L=220 |
1 | ||
| 90445-22024 |
SXV1#,VCV10..JPP L=220 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 77213-33020 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-32050 |
SXV1#,VCV10..JPP |
1 | ||
| 77216-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77217A - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77217-32030 |
SXV1#,VCV10..JPP |
1 | ||
| 77259A - HOSE, FUEL(FOR BREATHER TUBE) | ||||
| 77259-33010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77277R - PROTECTOR, FUEL TANK FILLER PIPE | ||||
| 77277-06010 |
SXV1#,VCV10..JPP (L) |
1 | ||
| 77277-33010 |
SXV1#,VCV10..JPP (J) |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77290-06010 |
SXV1#,VCV10..JPP (L) |
1 | ||
| 77290-32030 |
MCV10,SXV1#,VCV10..JPP (J) |
1 | ||
| 77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77293-32020 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77310-48010 |
MCV10,SXV1#..JPP |
1 | ||
| 77310-16011 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-33040 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-35010 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-16011 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 90250-08019 |
SXV1#,VCV10..JPP |
2 | ||
| 77631A - PROTECTOR, FUEL TANK, LOWER CENTER | ||||
| 77631-33020 |
MCV10,SXV1#,VCV10..JPP |
1 | ||
| 77631-33021 |
MCV10,SXV1#..JPP |
1 | ||
| 77631-33010 |
SXV1#,VCV10..JPP |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-32030 |
SXV1#,VCV10..JPP |
6 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-33010 |
SXV1#,VCV10..JPP |
2 | ||
| 77652-20110 |
SXV1#,VCV10..JPP |
1 | ||
| 77652-33010 |
SXV1#,VCV10..JPP 110X135 |
2 | ||
| 77652-32030 |
SXV1#,VCV10..JPP 60X60 |
6 | ||
| 77652-33010 |
MCV10,SXV1#..JPP 110 X 135 |
2 | ||
| 77652-32030 |
MCV10,SXV1#..JPP 60 X 60 |
6 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-32060 |
SXV1#,VCV10..JPP |
1 | ||
| 77681-32040 |
SXV1#,VCV10..JPP |
1 | ||
| 77681-32070 |
SXV1#,VCV10..JPP |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77681-32040 |
SXV1#,VCV10..JPP |
1 | ||
| 77681-32060 |
SXV1#,VCV10..JPP |
1 | ||
| 77701T - VALVE, CHECK (FOR MAIN FUEL TANK) | ||||
| 90917-10082 |
MCV10,SXV1#,VCV10..JPP..RHD |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
MCV10,SXV1#,VCV10..JPP..RHD *H,L=280 |
1 | ||
| 95333-06020 |
MCV10,SXV1#,VCV10..JPP..RHD *H,L=150 |
1 | ||
| 95333-06030 |
SXV1#,VCV10..JPP..RHD *H,L=260 |
1 | ||
| 77701U - HOSE, FUEL (FOR CHECK VALVE) | ||||
| 95333-06030 |
MCV10,SXV1#,VCV10..JPP..RHD *H,L=280 |
1 | ||
| 95333-06020 |
MCV10,SXV1#,VCV10..JPP..RHD *H,L=150 |
1 | ||
| 95333-06030 |
SXV1#,VCV10..JPP..RHD *H,L=260 |
1 | ||
| Common parts | ||||
| 90119-06351 | ||||
| 90119-06398 | ||||
| 90119-06442 | ||||
| 90119-06450 | ||||
| 90119-08511 | ||||
| 90119-10477 | ||||
| 90119-10502 | ||||
| 90159-50069 | ||||
| 90159-50217 | ||||
| 90159-50219 | ||||
| 90179-05078 | ||||
| 90179-06219 | ||||
| 90179-10112 | ||||
| 90185-06002 | ||||
| 90189-05097 | ||||
| 90189-06157 | ||||
| 90460-22002 | ||||
| 90460-46003 | ||||
| 90467-12039 | ||||
| 90468-04079 | ||||
| 90480-12016 | ||||
| 91511-40412 | ||||
| 96132-41100 | ||||
