SXV10R-AEPNKN (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Apr 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )SXV1#..JPP..ATM

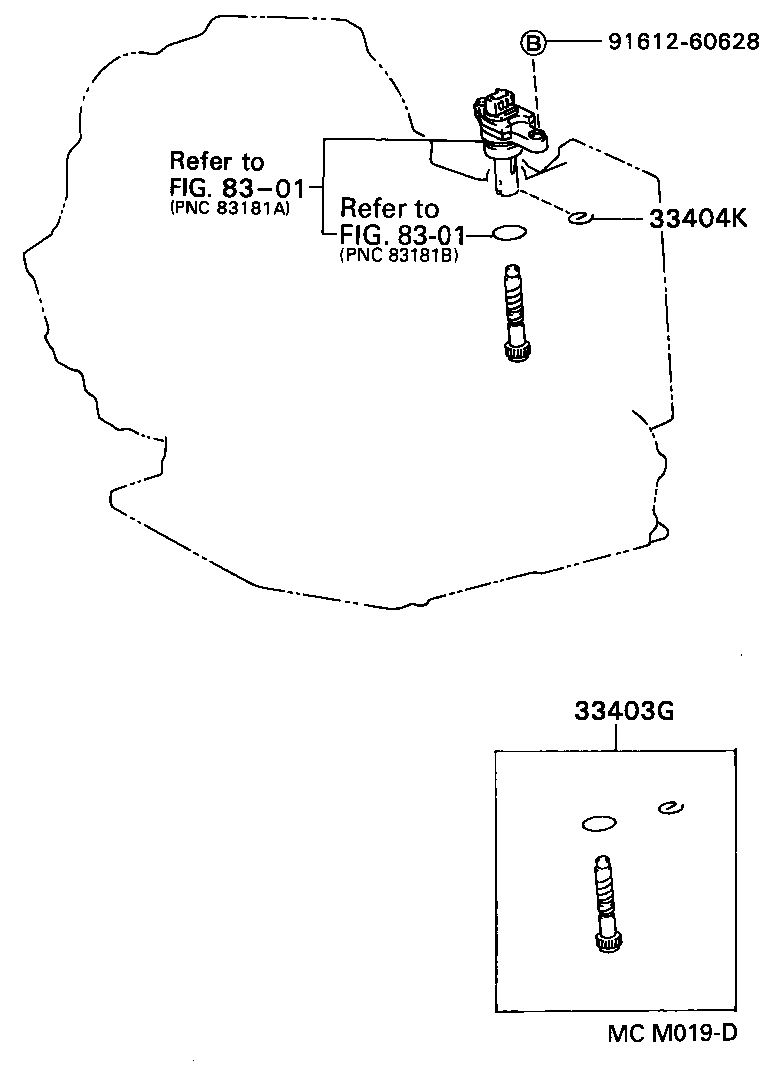

Click highlighted areas on diagram

A140E

diagram 33403G 33404K 8301 8301 9161260628
Part # Description Qty Price
33403G - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)
33403-39275

SXV1#..JPP..ATM

N=22,MARK 22:27

 1
33404K - CLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)
90468-12005

MCV10,SXV1#,VCV10..JPP..ATM

 1
Common parts
91612-60628
Linked diagrams
8301
