SXV10R-AEPEKN (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Apr 2001
Engine 5SFE
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(9208- )JPP

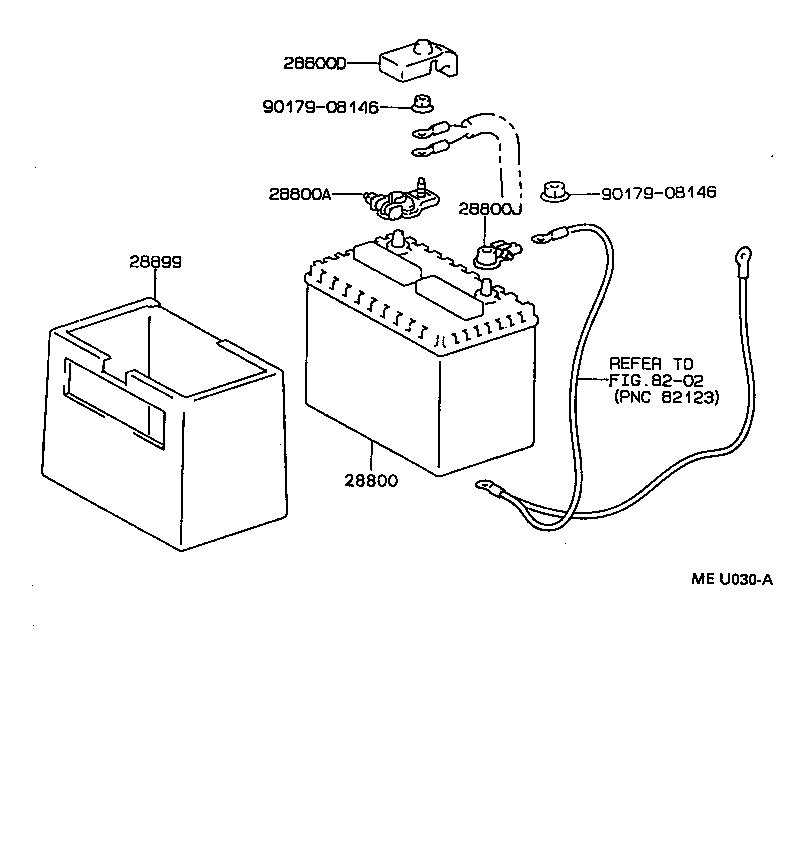

Click highlighted areas on diagram

diagram 28800 28800A 28800D 28800J 28899 8202 9017908146 9017908146
Part # Description Qty Price
28800 - BATTERY
28800-42030

3SFE,5SFE,3VZFE..SXV1#,VCV10..JPP

55D23L

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05035

3SFE,5SFE,3VZFE..SXV1#,VCV10..JPP

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12290

1MZFE,3SFE,5SFE,3VZFE..MCV10,SXV1#,VCV10..JPP

 1
28800J - TERMINAL, BATTERY NEGATIVE
90982-06022

3SFE,5SFE,3VZFE..SXV1#,VCV10..JPP

 1
Common parts
90179-08146
Linked diagrams
8202
