Toyota Camry (jpp/sed) SXV10 HEATING & AIR CONDITIONING - COOLER PIPING

Manufacturers Home
Toyota
GR
CAMRY (JPP/SED)
SXV10R-AEMNKN (1992)
8718 - HEATING & AIR CONDITIONING - COOLER PIPING

SXV10R-AEMNKN (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Apr 2001

Engine 5SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

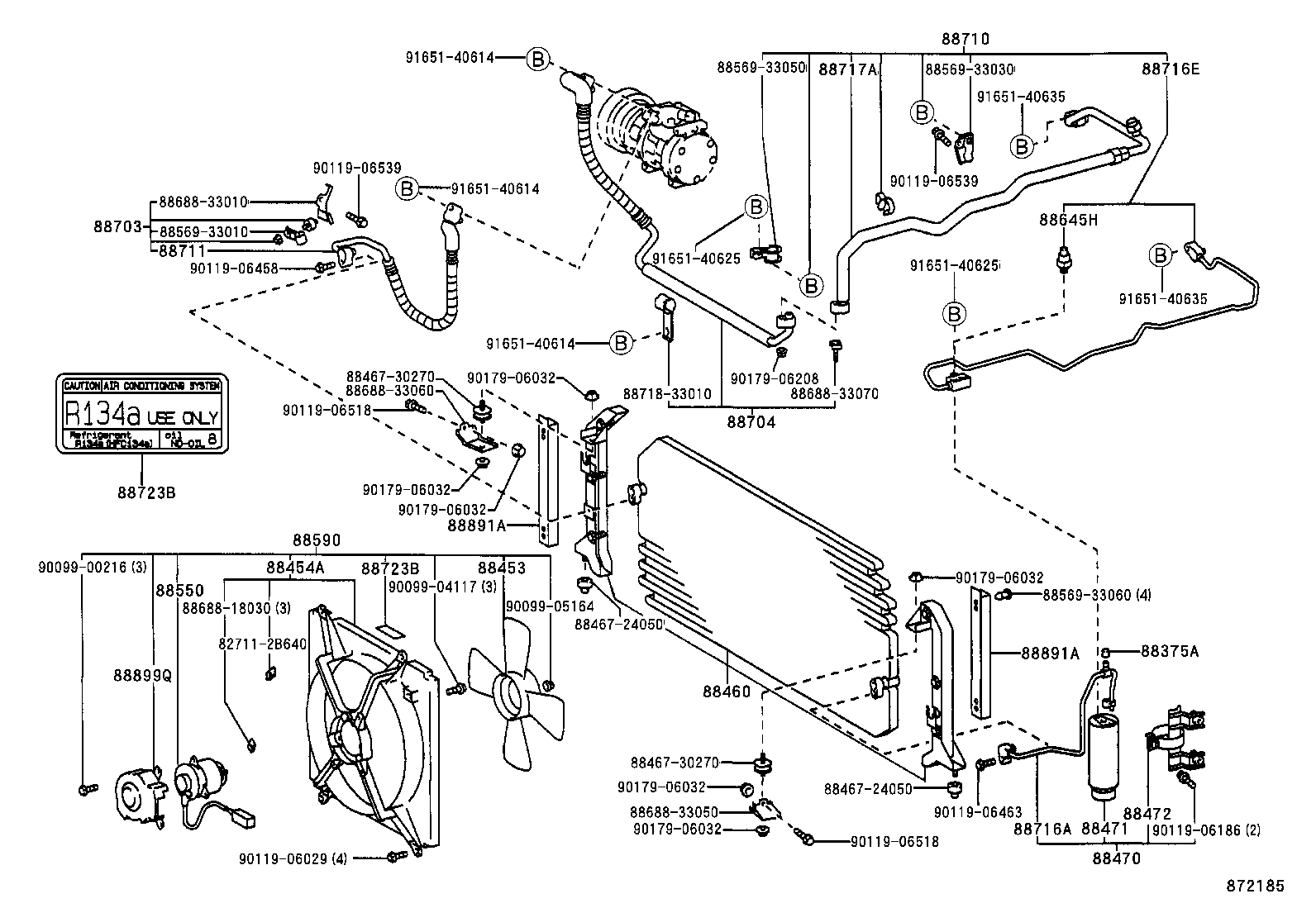

ILLUST NO. 1 OF 2(9208-9408)SXV1#..JPP..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88375-20010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-33010	SXV1#..JPP	08/1992 - 12/2999	1
88454A - SHROUD, FAN
88454-33010	SXV1#..JPP	08/1992 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88460-33030	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88470-33020	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88471-50010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-33040	SXV1#,VCV10..JPP	08/1994 - 08/1997	1
88473-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88473-33030	SXV1#,VCV10..JPP	08/1993 - 08/1994	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-33010	SXV1#..JPP	08/1992 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-33011	SXV1#..JPP	08/1993 - 12/2999	1
88590-33010	SXV1#..JPP	08/1992 - 08/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-20040	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88645-20050	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-33060	SXV1#..JPP..RHD	08/1992 - 08/1993	1
88703-33070	SXV1#..JPP..RHD	08/1993 - 09/1994	1
88703-33071	SXV1#..JPP..RHD	09/1994 - 08/1997	1
88704 - HOSE SUB-ASSY, SUCTION
88704-33060	SXV1#..JPP..RHD	08/1992 - 08/1993	1
88704-33070	SXV1#..JPP..RHD	08/1993 - 08/1997	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-33030	SXV1#,VCV10..JPP..RHD	08/1992 - 08/1993	1
88710-33050	SXV1#,VCV10..JPP..RHD	08/1993 - 08/1994	1
88710-33051	SXV1#,VCV10..JPP..RHD	08/1994 - 08/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33041	SXV1#..JPP..RHD	09/1994 - 08/1997	1
88711-33010	SXV1#..JPP..RHD	08/1992 - 08/1993	1
88711-33040	SXV1#..JPP..RHD	08/1993 - 09/1994	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-33120	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88716-33040	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-33010	SXV1#,VCV10..JPP..RHD	08/1992 - 08/1993	1
88716-33090	SXV1#,VCV10..JPP..RHD	08/1993 - 08/1997	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33100	SXV1#,VCV10..JPP..RHD NO.2	08/1994 - 08/1997	1
88717-33070	SXV1#,VCV10..JPP..RHD NO.1	08/1994 - 08/1997	1
88717-33010	SXV1#,VCV10..JPP..RHD	08/1992 - 08/1993	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-14010	SXV1#,VCV10..JPP	04/1997 - 08/1997	1
88723-28100	SXV1#..JPP..(GL,SEI,SI) SHROUD FAN	08/1992 - 08/1993	1
88723-14010	SXV1#,VCV10..JPP E/G HOOD	08/1993 - 08/1994	1
88723-14010	SXV1#,VCV10..JPP..(GD,GL,LUM,SEI,SI,XL)	08/1994 - 04/1997	1
88723-12100	SXV1#..JPP SHROUD FAN	08/1993 - 08/1994	1
88723-20081	SXV1#..JPP	08/1997 - 12/2999	1
88723-12100	SXV1#..JPP..(GL,SEI,SI,XL) SHROUD FAN	08/1994 - 04/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-14010	SXV1#,VCV10..JPP	04/1997 - 08/1997	1
88723-28100	SXV1#..JPP..(GL,SEI,SI) SHROUD FAN	08/1992 - 08/1993	1
88723-14010	SXV1#,VCV10..JPP E/G HOOD	08/1993 - 08/1994	1
88723-14010	SXV1#,VCV10..JPP..(GD,GL,LUM,SEI,SI,XL)	08/1994 - 04/1997	1
88723-12100	SXV1#..JPP SHROUD FAN	08/1993 - 08/1994	1
88723-20081	SXV1#..JPP	08/1997 - 12/2999	1
88723-12100	SXV1#..JPP..(GL,SEI,SI,XL) SHROUD FAN	08/1994 - 04/1997	1
88891A - PACKING A (FOR COOLER)
88578-33010	SXV1#,VCV10..JPP	08/1993 - 08/1997	2
88891A - PACKING A (FOR COOLER)
88578-33010	SXV1#,VCV10..JPP	08/1993 - 08/1997	2
88899Q - PLATE, COVER
88899-33020	SXV1#..JPP	04/1996 - 12/2999	1
Common parts
82711-2B640
88467-24050
88467-30270
88569-33010
88569-33030
88569-33050
88569-33060
88688-18030
88688-33010
88688-33050
88688-33060
88688-33070
88718-33010
90099-00216
90099-04117
90099-05164
90119-06029
90119-06186
90119-06458
90119-06463
90119-06518
90119-06539
90179-06032
90179-06208
91651-40614
91651-40625
91651-40635

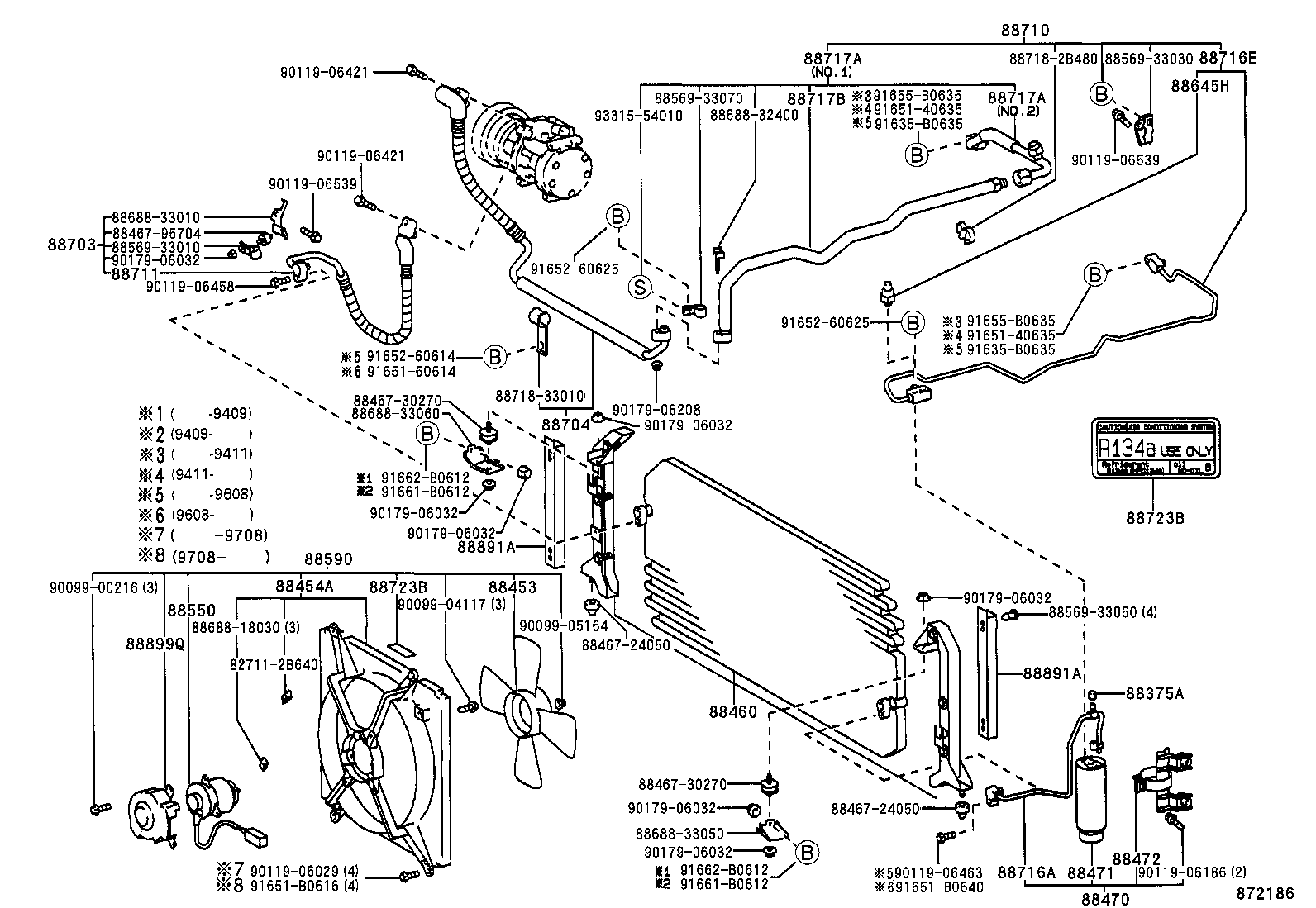

ILLUST NO. 1 OF 2(9408- )SXV1#..JPP..RHD

Click highlighted areas on diagram

Part #	Description	Period	Qty
88375A - CAP, SERVICE VALVE (FOR COOLER PIPE)
88375-30280	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88375-20010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88453 - FAN, COOLING (FOR CONDENSER)
88453-33010	SXV1#..JPP	08/1992 - 12/2999	1
88454A - SHROUD, FAN
88454-33010	SXV1#..JPP	08/1992 - 12/2999	1
88460 - CONDENSER ASSY, COOLER
88460-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88460-33030	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88470-33020	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88471 - TANK, RECEIVER AIR CONDITIONER
88471-20050	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88471-50010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88472 - BRACKET, RECEIVER TANK, NO.1
88473-33040	SXV1#,VCV10..JPP	08/1994 - 08/1997	1
88473-33010	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88473-33030	SXV1#,VCV10..JPP	08/1993 - 08/1994	1
88550 - MOTOR ASSY, BLOWER (FOR CONDENSER)
88550-33010	SXV1#..JPP	08/1992 - 12/2999	1
88590 - BLOWER ASSY, W/SHROUD
88590-33011	SXV1#..JPP	08/1993 - 12/2999	1
88590-33010	SXV1#..JPP	08/1992 - 08/1993	1
88645H - SWITCH, PRESSURE NO.1
88645-20040	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88645-20050	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-33060	SXV1#..JPP..RHD	08/1992 - 08/1993	1
88703-33070	SXV1#..JPP..RHD	08/1993 - 09/1994	1
88703-33071	SXV1#..JPP..RHD	09/1994 - 08/1997	1
88704 - HOSE SUB-ASSY, SUCTION
88704-33060	SXV1#..JPP..RHD	08/1992 - 08/1993	1
88704-33070	SXV1#..JPP..RHD	08/1993 - 08/1997	1
88710 - TUBE ASSY, AIR CONDITIONER
88710-33030	SXV1#,VCV10..JPP..RHD	08/1992 - 08/1993	1
88710-33050	SXV1#,VCV10..JPP..RHD	08/1993 - 08/1994	1
88710-33051	SXV1#,VCV10..JPP..RHD	08/1994 - 08/1997	1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-33041	SXV1#..JPP..RHD	09/1994 - 08/1997	1
88711-33010	SXV1#..JPP..RHD	08/1992 - 08/1993	1
88711-33040	SXV1#..JPP..RHD	08/1993 - 09/1994	1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-33120	SXV1#,VCV10..JPP	08/1993 - 08/1997	1
88716-33040	SXV1#,VCV10..JPP	08/1992 - 08/1993	1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-33010	SXV1#,VCV10..JPP..RHD	08/1992 - 08/1993	1
88716-33090	SXV1#,VCV10..JPP..RHD	08/1993 - 08/1997	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33100	SXV1#,VCV10..JPP..RHD NO.2	08/1994 - 08/1997	1
88717-33070	SXV1#,VCV10..JPP..RHD NO.1	08/1994 - 08/1997	1
88717-33010	SXV1#,VCV10..JPP..RHD	08/1992 - 08/1993	1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88717-33100	SXV1#,VCV10..JPP..RHD NO.2	08/1994 - 08/1997	1
88717-33070	SXV1#,VCV10..JPP..RHD NO.1	08/1994 - 08/1997	1
88717-33010	SXV1#,VCV10..JPP..RHD	08/1992 - 08/1993	1
88717B - PIPE, COOLER REFRIGERANT SUCTION, B
88717-33090	SXV1#,VCV10..JPP..RHD	08/1994 - 08/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-14010	SXV1#,VCV10..JPP	04/1997 - 08/1997	1
88723-28100	SXV1#..JPP..(GL,SEI,SI) SHROUD FAN	08/1992 - 08/1993	1
88723-14010	SXV1#,VCV10..JPP E/G HOOD	08/1993 - 08/1994	1
88723-14010	SXV1#,VCV10..JPP..(GD,GL,LUM,SEI,SI,XL)	08/1994 - 04/1997	1
88723-12100	SXV1#..JPP SHROUD FAN	08/1993 - 08/1994	1
88723-20081	SXV1#..JPP	08/1997 - 12/2999	1
88723-12100	SXV1#..JPP..(GL,SEI,SI,XL) SHROUD FAN	08/1994 - 04/1997	1
88723B - LABEL, COOLER SERVICE CAUTION
88723-14010	SXV1#,VCV10..JPP	04/1997 - 08/1997	1
88723-28100	SXV1#..JPP..(GL,SEI,SI) SHROUD FAN	08/1992 - 08/1993	1
88723-14010	SXV1#,VCV10..JPP E/G HOOD	08/1993 - 08/1994	1
88723-14010	SXV1#,VCV10..JPP..(GD,GL,LUM,SEI,SI,XL)	08/1994 - 04/1997	1
88723-12100	SXV1#..JPP SHROUD FAN	08/1993 - 08/1994	1
88723-20081	SXV1#..JPP	08/1997 - 12/2999	1
88723-12100	SXV1#..JPP..(GL,SEI,SI,XL) SHROUD FAN	08/1994 - 04/1997	1
88891A - PACKING A (FOR COOLER)
88578-33010	SXV1#,VCV10..JPP	08/1993 - 08/1997	2
88891A - PACKING A (FOR COOLER)
88578-33010	SXV1#,VCV10..JPP	08/1993 - 08/1997	2
88899Q - PLATE, COVER
88899-33020	SXV1#..JPP	04/1996 - 12/2999	1
Common parts
82711-2B640
88467-24050
88467-30270
88467-95704
88569-33010
88569-33030
88569-33060
88569-33070
88688-18030
88688-32400
88688-33010
88688-33050
88688-33060
88718-2B480
88718-33010
90099-00216
90099-04117
90099-05164
90119-06029
90119-06186
90119-06421
90119-06458
90119-06463
90119-06539
90179-06032
90179-06208
91635-B0635
91651-40635
91651-60614
91651-B0616
91651-B0640
91652-60614
91652-60625
91655-B0635
91661-B0612
91662-B0612
93315-54010

ILLUST NO. 2 OF 2(9208- )JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90069-08006
90069-08007
90069-08008
90069-08009
90069-08010
90069-08011
90069-08012
90099-14044
90099-14045
90099-14046
90099-14056
90099-14067
90099-14119
90099-14120
90099-14121
90099-14122
90099-14125
