Toyota Camry (jpp/sed) SXV10 MOUNTING

SXV10R-AEMEKN (1992)

Toyota Camry (Jpp/Sed)

Production Aug 1992 - Apr 2001

Engine 5SFE

Transmission MTM

Displacement 2500cc

Power 168 HP (125 kW)

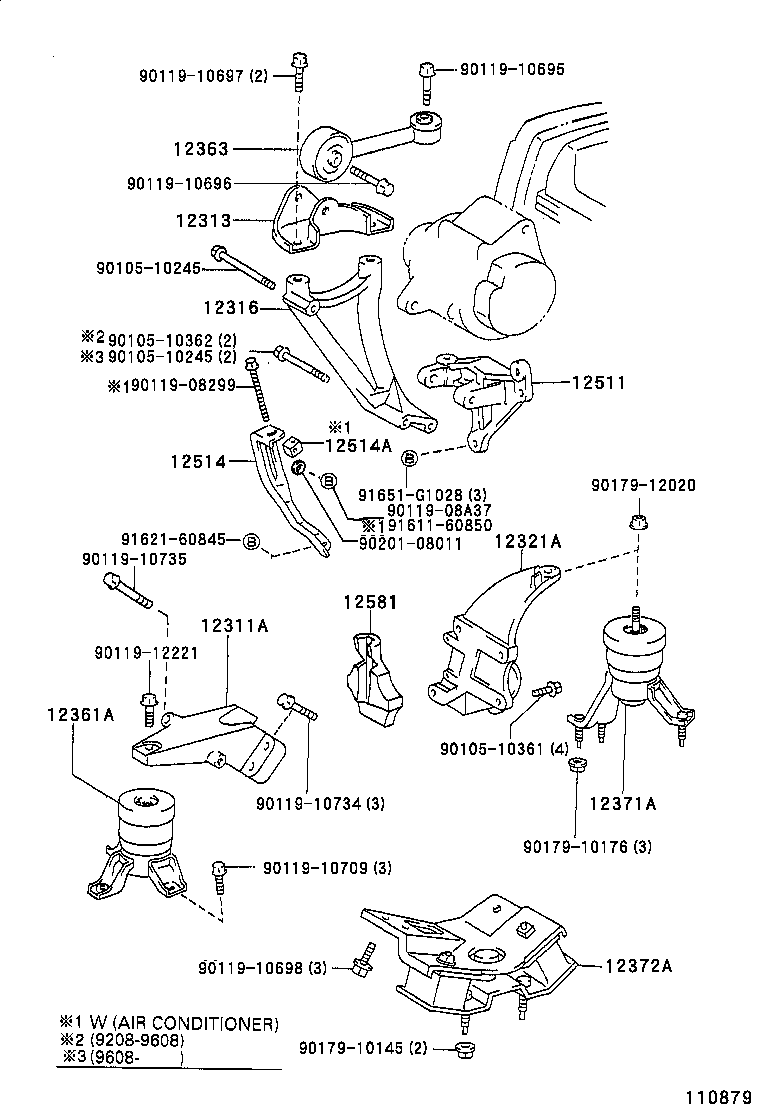

(9208-9708)3SFE,5SFE..JPP..MTM

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74220	3SFE,5SFE..SXV1#..JPP..MTM	08/1997 - 12/2999	1
12311-74210	3SFE,5SFE..SXV1#..JPP	07/1995 - 08/1997	1
12311-74130	3SFE,5SFE..SXV1#..JPP	08/1992 - 07/1995	1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-74040	3SFE,5SFE..SXV1#..JPP..MTM	08/1997 - 12/2999	1
12313-74040	3SFE,5SFE..SXV1#..JPP	08/1992 - 08/1997	1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-74130	3SFE,5SFE..SXV1#..JPP	08/1996 - 12/2999	1
12316-74030	3SFE,5SFE..SXV1#..JPP	08/1992 - 08/1996	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74250	3SFE,5SFE..SXV1#..JPP..MTM	08/1997 - 12/2999	1
12321-74250	3SFE,5SFE..SXV1#..JPP	08/1992 - 08/1997	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74241	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 12/2999	1
12363 - INSULATOR, ENGINE MOUNTING, CENTER
12363-74140	3SFE,5SFE..SXV1#..JPP..MTM	10/1996 - 12/2999	1
12363-74110	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 10/1996	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74301	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74370	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 12/2999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74100	3SFE,5SFE..SXV1#..JPP	08/1992 - 12/2999	1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74011	5SFE..SXV10..JPP	10/1996 - 02/1997	1
12514-74012	5SFE..SXV10..JPP	02/1997 - 04/1997	1
12514-74012	3SFE,5SFE..SXV1#..JPP	04/1997 - 08/1997	1
12514-74011	3SFE,5SFE..SXV1#..JPP	08/1992 - 10/1996	1
12514-74051	3SFE,5SFE..SXV1#..JPP	08/1997 - 12/2999	1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011	3SFE,5SFE..SXV1#..JPP..RHD	02/1993 - 12/2999	1
12581 - INSULATOR, CYLINDER BLOCK, NO.1
12581-74010	3SFE,5SFE..SXV1#..JPP	08/1992 - 01/1994	1
Common parts
90105-10245
90105-10361
90105-10362
90119-08299
90119-08A37
90119-10695
90119-10696
90119-10697
90119-10698
90119-10709
90119-10734
90119-10735
90119-12221
90179-10145
90179-10176
90179-12020
90201-08011
91611-60850
91621-60845
91651-G1028

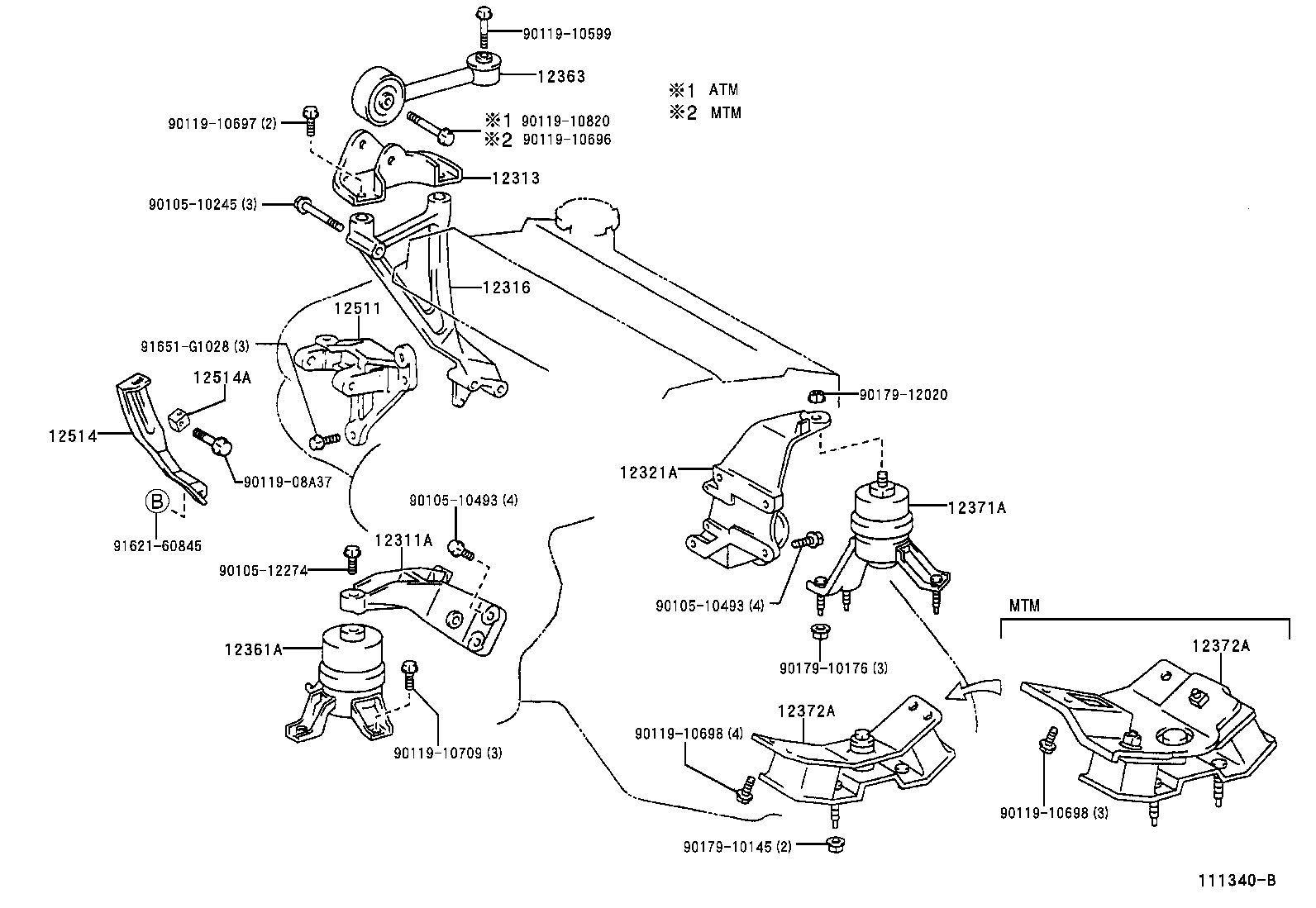

(9708- )3SFE,5SFE..JPP

Click highlighted areas on diagram

Part #	Description	Period	Qty
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-74220	3SFE,5SFE..SXV1#..JPP..MTM	08/1997 - 12/2999	1
12311-74210	3SFE,5SFE..SXV1#..JPP	07/1995 - 08/1997	1
12311-74130	3SFE,5SFE..SXV1#..JPP	08/1992 - 07/1995	1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-74040	3SFE,5SFE..SXV1#..JPP..MTM	08/1997 - 12/2999	1
12313-74040	3SFE,5SFE..SXV1#..JPP	08/1992 - 08/1997	1
12316 - BRACKET, ENGINE MOUNTING, NO.2 RH
12316-74130	3SFE,5SFE..SXV1#..JPP	08/1996 - 12/2999	1
12316-74030	3SFE,5SFE..SXV1#..JPP	08/1992 - 08/1996	1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-74250	3SFE,5SFE..SXV1#..JPP..MTM	08/1997 - 12/2999	1
12321-74250	3SFE,5SFE..SXV1#..JPP	08/1992 - 08/1997	1
12361A - INSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE
12361-74241	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 12/2999	1
12363 - INSULATOR, ENGINE MOUNTING, CENTER
12363-74140	3SFE,5SFE..SXV1#..JPP..MTM	10/1996 - 12/2999	1
12363-74110	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 10/1996	1
12371A - INSULATOR, ENGINE MOUNTING, REAR
12371-74301	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74370	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 12/2999	1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-74370	3SFE,5SFE..SXV1#..JPP..MTM	08/1992 - 12/2999	1
12511 - BRACKET, ALTERNATOR, NO.1
12511-74100	3SFE,5SFE..SXV1#..JPP	08/1992 - 12/2999	1
12514 - BAR, ALTERNATOR BELT ADJUSTING
12514-74011	5SFE..SXV10..JPP	10/1996 - 02/1997	1
12514-74012	5SFE..SXV10..JPP	02/1997 - 04/1997	1
12514-74012	3SFE,5SFE..SXV1#..JPP	04/1997 - 08/1997	1
12514-74011	3SFE,5SFE..SXV1#..JPP	08/1992 - 10/1996	1
12514-74051	3SFE,5SFE..SXV1#..JPP	08/1997 - 12/2999	1
12514A - SLIDER, FAN BELT ADJUSTING
16385-64011	3SFE,5SFE..SXV1#..JPP..RHD	02/1993 - 12/2999	1
Common parts
90105-10245
90105-10493
90105-12274
90119-08A37
90119-10599
90119-10696
90119-10697
90119-10698
90119-10709
90119-10820
90179-10145
90179-10176
90179-12020
91621-60845
91651-G1028

SXV10R-AEMEKN (1992)

(9208-9708)3SFE,5SFE..JPP..MTM

(9708- )3SFE,5SFE..JPP
